High Performance Industrial Panel PC (CV-100/P2000 Series)

High Performance Industrial Panel PC (CV-100/P2000 Series)

Cincoze CV-100/P2000 Series is a high performance fanless and jumperless rugged touch panel PC powered by Intel® Core™ processor U series, offering more computing power, faster data processing and enhanced graphics performance, while consuming only 15W of power. A wide selection of display sizes are available from 12.1” to 24” with a format aspect of 4:3 and 16:9.

The CV-100/P2000 Series supports CFM (Control Function Module) Technology, Cincoze own defined interface with integrated power boost and control signal that allows you to extend PoE and ignition sensing functions with additional CFM boards.
ProductModel NameDisplayCPUI/OExpansion
NEW
CV-112H / P2202 Series
CV-112H / P2202 Series12.1" TFT
1024x768 (4:3)
Intel® Core™ i5-1245UE
Intel® Core™ i3-1215UE
1x VGA
1x DisplayPort
1x HDMI
2x GbE LAN
4x USB
4x COM
16x DIO
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module
CV-112H / P2102 SeriesCV-112H / P2102 Series12.1" TFT
1024 x 768 (4:3)
Intel® Core™ i5-8365UE
Intel® Core™ i3-8145UE
1x VGA
1x DisplayPort
2x GbE LAN
5x USB
4x COM
16x DIO
2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
CV-112H / P2002 SeriesCV-112H / P2002 Series12.1" TFT
1024x768 (4:3)
Intel® Core™ i5-6300U
Intel® Core™ i3-6100U
1x VGA
1x DVI-D
2x GbE LAN
5x USB
6x COM
16x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
NEW
CV-115 / P2202 Series
CV-115 / P2202 Series15" TFT
1024x768 (4:3)
Intel® Core™ i5-1245UE
Intel® Core™ i3-1215UE
1x VGA
1x DisplayPort
1x HDMI
2x GbE LAN
4x USB
4x COM
16x DIO
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module
CV-115 / P2102 SeriesCV-115 / P2102 Series15" TFT
1024x768 (4:3)
Intel® Core™ i5-8365UE
Intel® Core™ i3-8145UE
1x VGA
1x DisplayPort
2x GbE LAN
5x USB
4x COM
16x DIO
2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
CV-115 / P2002 SeriesCV-115 / P2002 Series15" TFT
1024x768 (4:3)
Intel® Core™ i5-6300U
Intel® Core™ i3-6100U
1x VGA
1x DVI-D
2x GbE LAN
5x USB
6x COM
16x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
NEW
CV-117 / P2202 Series
CV-117 / P2202 Series17" TFT
1280x1024 (5:4)
Intel® Core™ i5-1245UE
Intel® Core™ i3-1215UE
1x VGA
1x DisplayPort
1x HDMI
2x GbE LAN
4x USB
4x COM
16x DIO
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module
CV-117 / P2102 SeriesCV-117 / P2102 Series17" TFT
1280x1024 (5:4)
Intel® Core™ i5-8365UE
Intel® Core™ i3-8145UE
1x VGA
1x DisplayPort
2x GbE LAN
5x USB
4x COM
16x DIO
2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
CV-117 / P2002 SeriesCV-117 / P2002 Series17" TFT
1280x1024 (5:4)
Intel® Core™ i5-6300U
Intel® Core™ i3-6100U
1x VGA
1x DVI-D
2x GbE LAN
5x USB
6x COM
16x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
NEW
CV-119 / P2202 Series
CV-119 / P2202 Series19" TFT
1280x1024 (5:4)
Intel® Core™ i5-1245UE
Intel® Core™ i3-1215UE
1x VGA
1x DisplayPort
1x HDMI
2x GbE LAN
4x USB
4x COM
16x DIO
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module
CV-119 / P2102 SeriesCV-119 / P2102 Series19" TFT
1280x1024 (5:4)
Intel® Core™ i5-8365UE
Intel® Core™ i3-8145UE
1x VGA
1x DisplayPort
2x GbE LAN
5x USB
4x COM
16x DIO
2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
CV-119 / P2002 SeriesCV-119 / P2002 Series19" TFT
1280x1024 (5:4)
Intel® Core™ i5-6300U
Intel® Core™ i3-6100U
1x VGA
1x DVI-D
2x GbE LAN
5x USB
6x COM
16x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
NEW

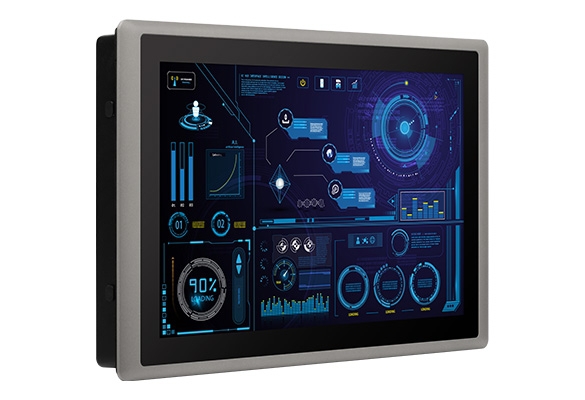

CV-W115 / P2202 Series
CV-W115 / P2202 Series15.6" TFT
1366x768 (16:9)
Intel® Core™ i5-1245UE
Intel® Core™ i3-1215UE
1x VGA
1x DisplayPort
1x HDMI
2x GbE LAN
4x USB
4x COM
16x DIO
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module
CV-W115 / P2102 SeriesCV-W115 / P2102 Series15.6" TFT
1366 x 768 (16:9)
Intel® Core™ i5-8365UE
Intel® Core™ i3-8145UE
1x VGA
1x DisplayPort
2x GbE LAN
5x USB
4x COM
16x DIO
2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
CV-W115 / P2002 SeriesCV-W115 / P2002 Series15.6" TFT
1366x768 (16:9)
Intel® Core™ i5-6300U
Intel® Core™ i3-6100U
1x VGA
1x DVI-D
2x GbE LAN
5x USB
6x COM
16x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
NEW
CV-W121 / P2202 Series
CV-W121 / P2202 Series21.5" TFT
1920x1080 (16:9)
Intel® Core™ i5-1245UE
Intel® Core™ i3-1215UE
1x VGA
1x DisplayPort
1x HDMI
2x GbE LAN
4x USB
4x COM
16x DIO
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module
CV-W121 / P2102 SeriesCV-W121 / P2102 Series21.5" TFT
1920x1080 (16:9)
Intel® Core™ i5-8365UE
Intel® Core™ i3-8145UE
1x VGA
1x DisplayPort
2x GbE LAN
5x USB
4x COM
16x DIO
2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
CV-W121 / P2002 SeriesCV-W121 / P2002 Series21.5" TFT
1920x1080 (16:9)
Intel® Core™ i5-6300U
Intel® Core™ i3-6100U
1x VGA
1x DVI-D
2x GbE LAN
5x USB
6x COM
16x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
NEW
CV-W124 / P2202 Series
CV-W124 / P2202 Series24" TFT
1920x1080 (16:9)
Intel® Core™ i5-1245UE
Intel® Core™ i3-1215UE
1x VGA
1x DisplayPort
1x HDMI
2x GbE LAN
4x USB
4x COM
16x DIO
2x Full Size Mini-PCIe Socket and Support CFM (PoE, IGN)
1x M.2 Key E Type 2230 Socket, Support Intel CNVi/Wireless Module
CV-W124 / P2102 SeriesCV-W124 / P2102 Series24" TFT
1920x1080 (16:9)
Intel® Core™ i5-8365UE
Intel® Core™ i3-8145UE
1x VGA
1x DisplayPort
2x GbE LAN
5x USB
4x COM
16x DIO
2x Mini-PCIe and Support CFM (PoE, IGN), 1x M.2 2230 E Key Socket for Wireless Module, Supports Intel CRF Module
CV-W124 / P2002 SeriesCV-W124 / P2002 Series24" TFT
1920x1080 (16:9)
Intel® Core™ i5-6300U
Intel® Core™ i3-6100U
1x VGA
1x DVI-D
2x GbE LAN
5x USB
6x COM
16x DIO
2x Mini-PCIe and Support CFM (PoE, IGN)
