CMI Module
CMI (Combined Multiple IO) modules specially designed for flexible I/O expandability; it allows users to extend various I/Os according to their needs. CMI modules are including LAN (RJ45/M12), PoE (RJ45/M12), COM, DIO, LPT/PS2, DisplayPort, DVI and VGA.
Product | Model Name | Category | Description | Connector | Compatible Model |
---|---|---|---|---|---|

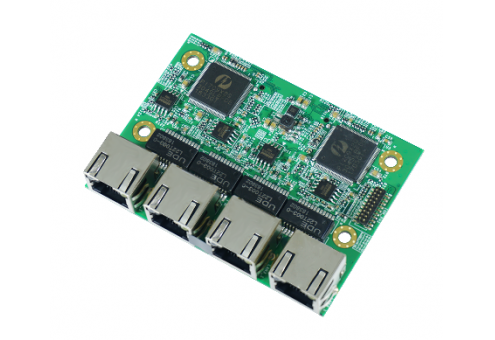

![]() | CMI-LAN01 | LAN | CMI Module with 4x Intel GbE LAN, RJ45 Port | 4x RJ45 | DX-1000 |

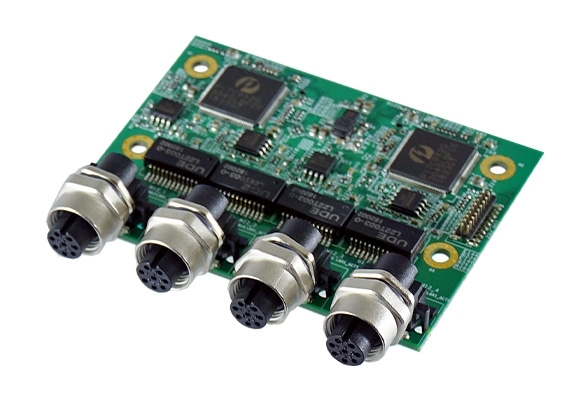

![]() | CMI-M12LAN01 | LAN | CMI Module with M12 Connector, 4x Intel GbE LAN | 4x M12 | DX-1000 |
![]() | CMI-LAN104 | LAN | CMI Module with 4x Intel GbE LAN, RJ45 Port | 4x RJ45 | DI-1000DS-1000DS-1001DS-1002DS-1100DS-1101DS-1102 |
![]() | CMI-LAN204 | LAN | CMI Module with 4x Intel GbE LAN, RJ45 Port | 4x RJ45 | DE-1000DE-1001DE-1002 |
![]() | CMI-M12LAN104 | LAN | CMI Module with M12 Connector, 4x Intel GbE LAN | 4x M12 | DI-1000DS-1100DS-1101DS-1102 |
![]() | CMI-PoE104 | PoE | CMI Module with 4x PoE+, Intel GbE LAN, RJ45 Port, Individual Port 25.5W | 4x RJ45 | DS-1000DS-1001DS-1002DS-1100DS-1101DS-1102 |
![]() | CMI-PoE114 | PoE | CMI Module with 4x PoE+, Intel GbE LAN, RJ45 Port, Individual Port 25.5W | 4x RJ45 | DI-1000 |
![]() | CMI-PoE204 | PoE | CMI Module with 4x PoE+, Intel GbE LAN, RJ45 Port, Individual Port 25.5W | 4x RJ45 | DE-1000DE-1001DE-1002 |
![]() | CMI-M12PoE104 | PoE | CMI Module with M12 Connector, 4x PoE+, Intel GbE LAN, Individual Port 25.5W | 4x M12 | DS-1100DS-1101DS-1102 |
![]() | CMI-M12PoE114 | PoE | CMI Module with M12 Connector, 4x PoE+, Intel GbE LAN, Individual Port 25.5W | 4x M12 | DI-1000 |
![]() | CMI-CD100 | I/O | CMI Module with 4x RS-232/422/485 Serial Ports, 8x Optical Isolated DIO (4 in/4 out) | 4x DB9 | DS-1100DS-1101DS-1102 |
![]() | CMI-ICD100 | I/O | CMI Module with 4x Electrical Isolated RS-232/422/485 Serial Ports, 8x Optical Isolated DIO (4 in/4 out) | 4x DB9 | DS-1000DS-1001DS-1002DS-1100DS-1101DS-1102 |

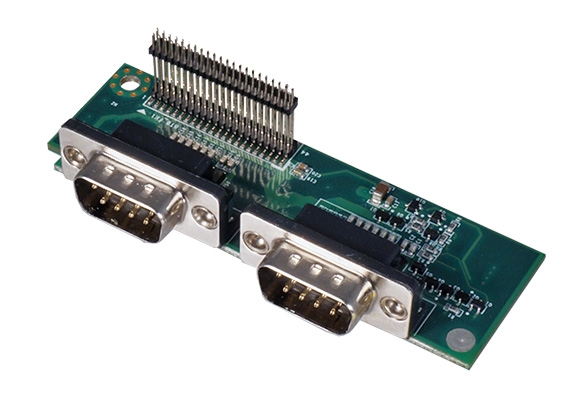

![]() | CMI-COM01 | I/O | CMI Module with 2x RS232/422/485 (Support 5V/12V) | 2x DB9 | DX-1000 |

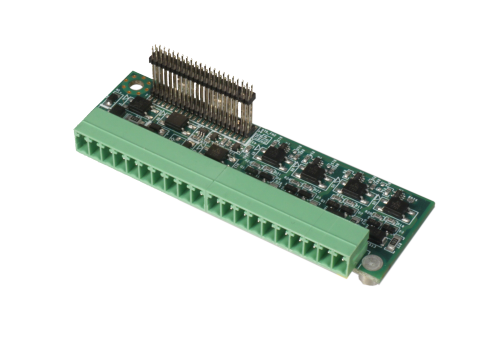

![]() | CMI-DIO01 | I/O | CMI Module with 16x Optical Isolated DIO (8 in/8 out) | 16x Optical Isolated DIO (8DI, 8DO) | DX-1000 |

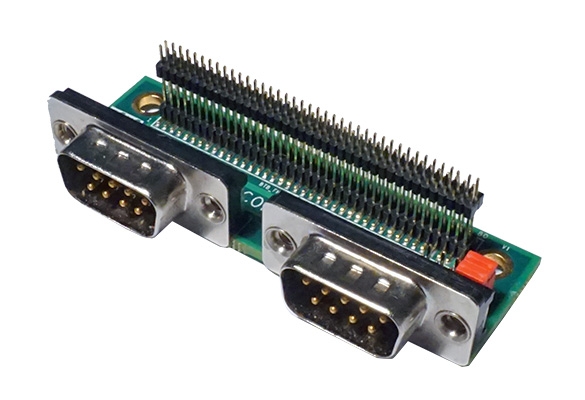

![]() | CMI-COM102 | I/O | CMI Module with 2x RS232/422/485 (Support 5V/12V) | 2x DB9 | DA-1000 |

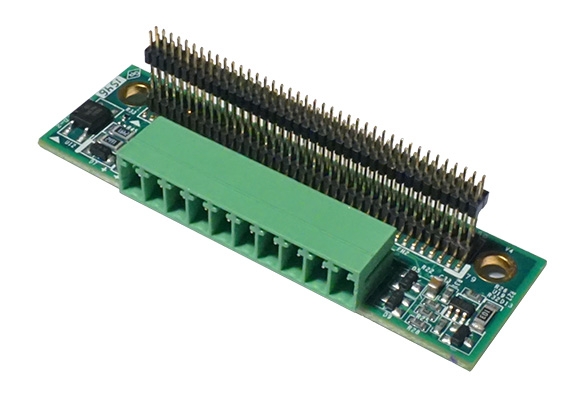

![]() | CMI-DIO100 | I/O | CMI Module with 8x Optical Isolated DIO (4 in/4 out) | 8x Optical Isolated DIO (4DI, 4DO) | DA-1000 |

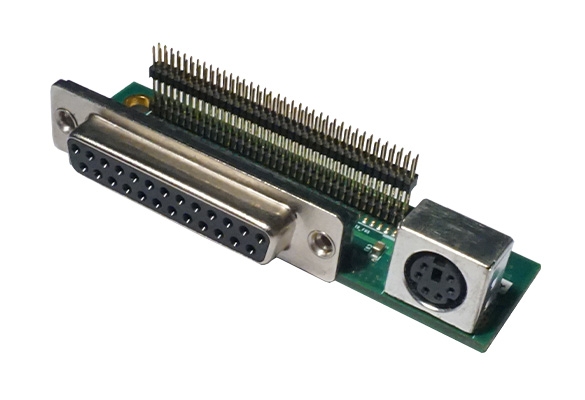

![]() | CMI-LPPS102 | I/O | CMI Module with 1x LPT Port, 1x PS/2 | 1x Parallel and 1x PS/2 | DA-1000 |
![]() | CMI-DP101 | Display | CMI Module with 1x DisplayPort | 1x DisplayPort, Up to 2560 x 1440 | DA-1000 |

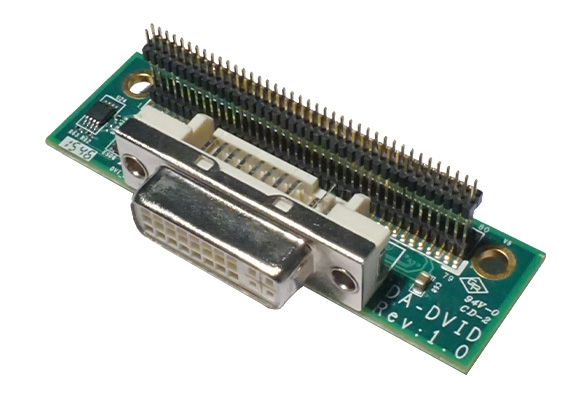

![]() | CMI-DVI101 | Display | CMI Module with 1x DVI-D Connector | 1x DVI-D, Up to 1920 x 1080 | DA-1000 |

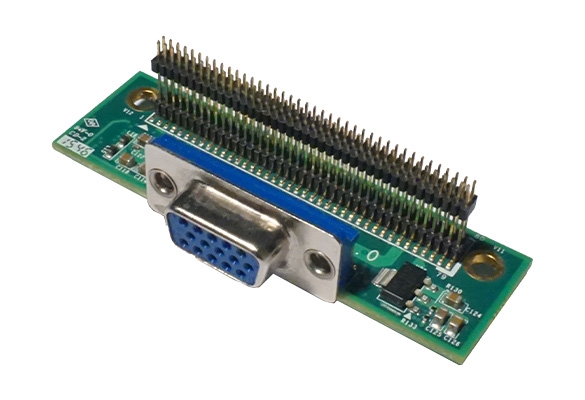

![]() | CMI-VGA101 | Display | CMI Module with 1x VGA Port | 1x VGA, Up to 2048 x 1152 | DA-1000 |
