Convertible Embedded System

Convertible Embedded System

Cincoze Convertible Embedded Computer "P1000 Series" and "P2000 Series" are designed to be positioned as “One Computer, Two Appliances”, it can be used as both a “Slim type embedded computer” and as a “Panel PC.” A modern fully-automatic machine requires an embedded computer for data processing and a panel PC for HMI operation, the Convertible Embedded Computer provides the seamless integration of a complete system with the same hardware for the ease of maintenance and device management.

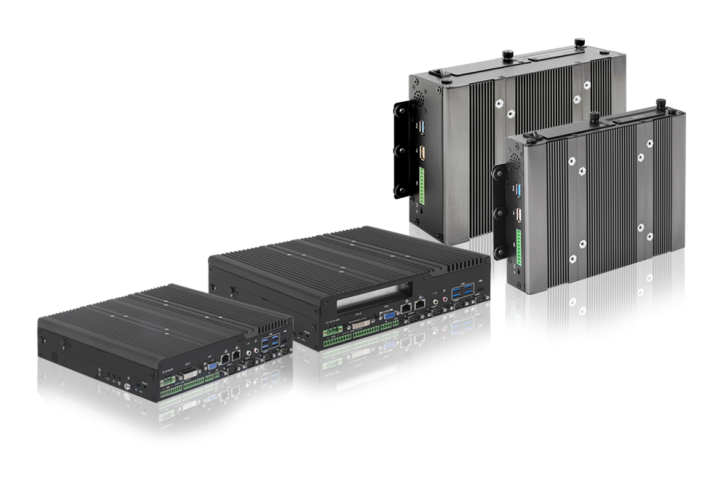

High Performance Convertible Computer (P2000 Series)

Cincoze P2000 Series is a high performance fanless embedded and display computer powered by Intel® 6th generation Core™ U series processor with only 15 watt power consumption. The advanced graphics engine support triple independent display with 1x VGA, 1x DVI-D and 1x CDS interface.

P2000 Series supports CFM Technology which allows you to extend PoE and IGN function with additional modules. And thanks to Cincoze’s exclusive CDS Technology, P2002 also acts as an engine of panel PC for CV-100 Series.

P2000 Series is truly a rugged computing system by supporting wide operating temperature from -25°C to 70°C, wide range DC power input from 9V to 48V, high tolerance of shock and vibration, various kinds of industrial protection and the integrated SuperCap for battery maintenance-free, those features allow P2000 Series to be easily deployed in harsh environment and critical applications.


Power Efficient Convertible Computer (P1000 Series)

Powered by Intel® Atom™ E3845 Quad Core 1.91GHz , P1000 Series is the fanless PC module supports Convertible Display System (CDS) technology which allow to be used for configuring, upgrading and maintaining your Convertible Panel PC.

P1000 Series offers extensive I/O including 4x USB, 2x RS232/422/485, 1x VGA, 1x DisplayPort and 4 DI/4DO. In addition, it supports 3G and WLAN via 2x GbE and 1x Mini-PCIe slot. Futhermore, P1001 supports 3 types of storage device including 2.5" SATA HDD, CFast and SIM card. The accessible design of these storage devices allows quick data access and easy maintenance.

It supports wide range DC power input from 9~48 VDC. P1001 is an ideal solution for configuring your Convertible Panel PC. Furthermore, it is a great fanless computer for various industrial applications.


Convertible Monitor Module (M1000 Series)

M1001 is a monitor module which supports Convertible Display Systems (CDS Technology), it is compatible with Cincoze Display Modules for different display sizes and touchscreens. M1001 offers both digital and analog signal input via three types of display interface: VGA, DVI-D and DisplayPort.

In addition, it has OSD function for adjusting the viewing options of display and supports 1x USB and 1x COM ports for connecting with the touch screen.

Moreover, M1001 supports wide range power DC input from 9 to 48VDC and offers panel mount, wall mount and VESA mount. It can be powered and deployed for various applications.

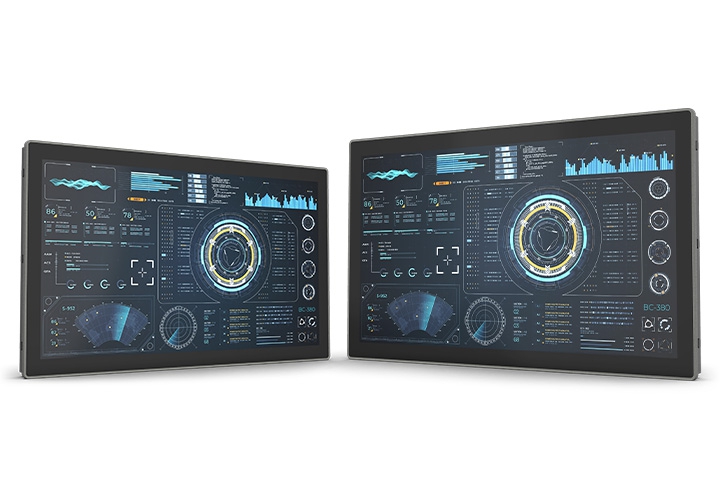

Convertible Display Module (CV-100 Series)

CV-100 Series is Convertible Display Module with resistive 5-wire / projected capacitive touch screen. It offers resolution up to 1920 x 1080 (Full HD) and brightness up to 500 nits.
CV-100 Series features flat surface and IP65 dust/waterproof front panel. In addition, designed with the aluminum die-cast front frame, it is rugged and reliable for industrial applications and harsh environment.

With supporting for Convertible Display System (CDS Technology) CV-100 Series allows you to configure and upgrade your Convertible Display System with the maintenance-free operation.

Sunlight Readable Display Module (CS-100 Series)

CS-100 Series is the Sunlight Readable Display Module with projected capacitive touch screen.  It offers resolution up to 1280 x 1024 (SXGA) and high brightness up to 1600 nits. It supports flat surface and IP65 dust / waterproof front panel. CS-100 Series is a rugged and reliable solution with aluminum die-casting front frame dedicating to sunlight / outdoor industrial applications.

•  10" ~ 19" TFT LCD with Ultra High Brightness up to 1,600 nits
•  Wide Operating Temperature -20~70°C
•  True Flat IP65 Front Panel Protection

•  Rugged Aluminum Die-Casting Bezel
•  Convertible Display System (CDS) Supported
•  Support Optical Bonding (Optional)
