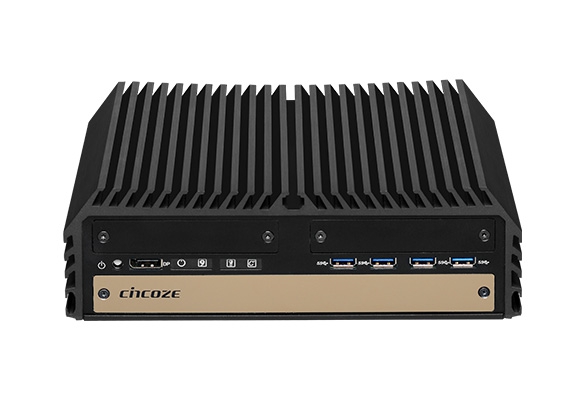

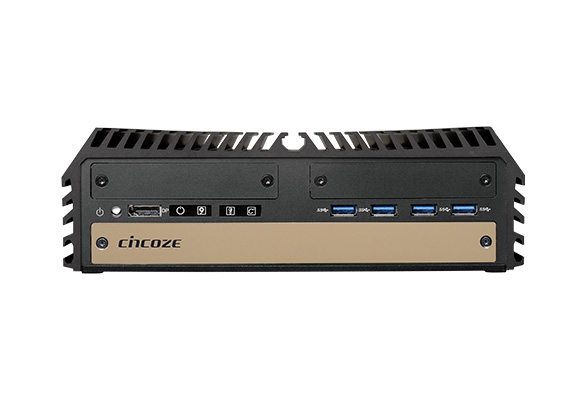

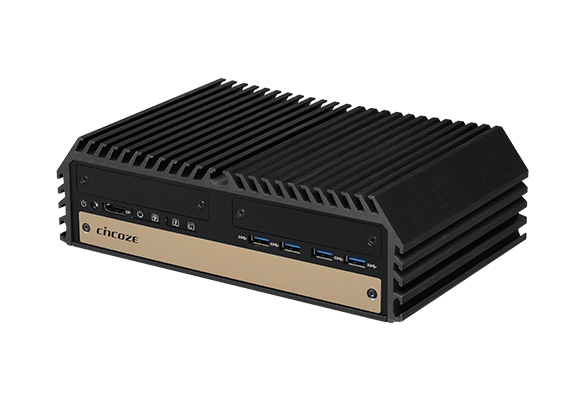

DX-1000

7/6th Generation Intel® Xeon® and Core™ Processors, Extreme Performance, Compact and Modular Rugged Workstation

PRODUCTS FEATURES
  • Supports 7/6th Generation Intel® Xeon® / Core™ LGA1151 Socket Type Processors with Intel® C236 Chipset
  • 2x DDR4-2133/2400 SO-DIMM Sockets, up to 64GB Memory
  • Triple Independent Display (1x DVI-I, 2x DisplayPort)
  • 2x 2.5" Hot Swap SATA III HDD/SSD bays, Supports RAID 0/1
  • 3x CMI Interfaces for RJ45/M12 GbE LAN, COM & DIO Expansions
  • 2x CFM Interfaces for Power Ignition Sensing and PoE Functions
  • 4x Full-size Mini-PCIe Slots for Wireless & I/O Expansions
  • EN50121-3-2 Certified for Railway Application
  • E-Mark (E13, No.10R-0514546) Certification for In-vehicle Application
OVERVIEW

The Cincoze DX-1000 is a rugged workstation series based on LGA 1151 socket and Intel® C236 chipset supporting 7th/6th generation Intel® Xeon® and Intel® Core™ Processors, DX-1000 Series supports 4K resolution through Intel® Gen9 graphics engine with two DDR4 SO-DIMM sockets up to 64GB memory which delivers outstanding computing performance for high-end applications.

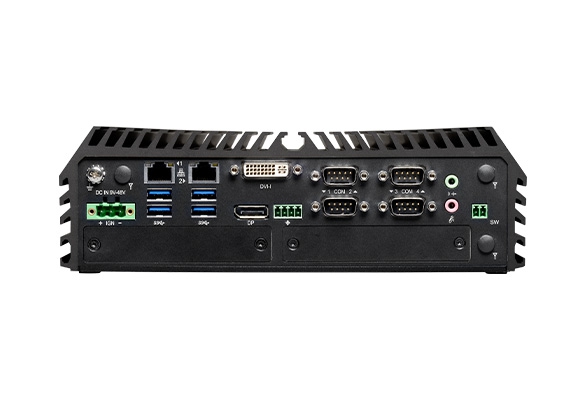

Despite remarkably compact footprint and rich I/O including 1x DVI-I, 2x Display ports, 2x GbE LAN ports, 4x RS232/422/485 serial ports and 8x USB 3.0 ports, Cincoze provides its exclusive CMI (Combined Multiple I/O) and CFM (Control Function Module) technologies to make DX-1000 Series a highly scalable system for specific applications such as Industrial automation, transportation, machine vision, in-vehicle and mobile surveillance. DX-1000 Series can be expanded with powered serial port, optical isolated digital I/O, multiple GbE LAN, M12 connector, Power over Ethernet and power ignition sensing function through versatile modules.

Featuring wide operating temperature (-40~+70°C), wide range DC power input (9~48 VDC), high tolerance to vibration and shock (5/50 Grms), rugged uni-body construction, fanless, cable-less and jumper-less design, the DX-1000 Series is ideal to be deployed in harsh environments.

Product Category >>>> Rugged Embedded Fanless PC
SPECIFICATION
Model NameDX-1000
SystemProcessor7th Generation Intel® CPU (Kaby Lake-S)
- Intel® Core i3-7101TE: 3M Cache, 3.4 GHz, TDP 35W
- Intel® Core i5-7500T: 6M Cache, up to 3.3 GHz, TDP 35W
- Intel® Core i7-7700T: 8M Cache, up to 3.8 GHz, TDP 35W
- Intel® Core i5-7500: 6M Cache, up to 3.8 GHz, TDP 65W
- Intel® Core i7-7700: 8M Cache, up to 4.2 GHz, TDP 65W
- Intel® Xeon E3-1275 v6: 8M Cache, up to 4.2 GHz, TDP 73W
6th Generation Intel® CPU (Skylake-S)
- Intel® Core i3-6100TE: 4M Cache, 2.7 GHz, TDP 35W
- Intel® Core i5-6500TE: 6M Cache, up to 3.3 GHz, TDP 35W
- Intel® Core i7-6700TE: 8M Cache, up to 3.4 GHz, TDP 35W
- Intel® Xeon E3-1268L v5: 8M Cache, up to 3.4 GHz, TDP 35W
- Intel® Core i3-6100: 3M Cache, 3.7 GHz, TDP 51W
- Intel® Core i5-6500: 6M Cache, up to 3.6 GHz, TDP 65W
- Intel® Core i7-6700: 8M Cache, up to 4.0 GHz, TDP 65W
- Intel® Xeon E3-1225 v5: 8M Cache, up to 3.7 GHz, TDP 80W
- Intel® Xeon E3-1275 v5: 8M Cache, up to 4.0 GHz, TDP 80W
ChipsetIntel® C236
Memory2x DDR4 SO-DIMM Sockets
* Intel 7th Generation Processor Supports Up to 2400MHz
* Intel 6th Generation Processor Supports Up to 2133MHz
Supports Un-buffered and Non-ECC Type Up to 64 GB
Graphics.Integrated Intel® HD Graphics
.Three Independent Display (1x DVI-I, 2x DisplayPort)
Audio• Realtek® ALC888
• High Definition Audio
BIOSAMI 16MB BIOS
I/O InterfaceDVI1x DVI-I connector, Up to 1920x1080@60Hz
DP2x DisplayPort Connector (4096 x 2304 @ 60Hz, According to CPU Specifications)
* Verified maximum resolution: 3840x2160
LAN2x 10/100/1000 Mbps, RJ45
GbE1: Intel I219-LM
GbE2: Intel I210
Support WoL, Teaming, Jumbo frame, IEEE 1588v2, RJ45
Optional Module
.4x 10/100/1000 Mbps, RJ45 Port
.4x 10/100/1000 Mbps, M12 Port
PoE+Optional Module
.4x PoE+, Individual port 25.5W (with CMI-LAN01,  RJ45 Port)
.4x PoE+, Individual port 25.5W, (with CMI-M12LAN01, M12 Port)
Serial Port4x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
Optional Module
.2x RS-232/422/485, DB9 Connector
.4x RS-232/422/485, DB9 Connector
USB8x USB 3.2 Gen1 (Type A)
Optical Isolated DIOOptional Module
.16x Optical Isolated DIO(8DI, 8DO), 20 pin Terminal Block
Line-Out1x Line-Out, Phone Jack 3.5mm
Mic-In1x Mic-In, Phone Jack 3.5mm
Power Button1x ATX Power On/Off Button
AT/ATX Switch1x AT/ATX Mode Switch
Reset Button1x Reset Button
Clear CMOS Switch1x Clear CMOS Switch
Remote Power On/Off Connector1x Remote Power On/Off Connector, 2-pin Terminal Block
External FAN Connector1x External FAN Connector, 4-pin Terminal Block (support smart fan by BIOS)
StorageSSD/HDD2x SATA III (6Gbps) for 2.5” HDD/SSD
mSATA4x mSATA (Shared by Mini-PCIe Socket) (Gen3)
RAIDSupport S/W RAID 0, 1, 5 & 10
ExpansionPCI/ PCIe-
CFM (Control Function Module) Interface1x CFM Interface for CFM Modules
CMI (Combine Multiple I/O) Interface3x CMI Interface for CMI Modules
Mini PCI Express4x Full-size Mini-PCIe Sockets
SIM Socket1x SIM Socket
Antenna Holes3x Antenna Holes
OtherInstant RebootSupport 0.2sec
Power Ignition SensingOptional Module
.CFM with Delay Time Management and Selectable 12V/24V, Dip Switch
Super CapSuperCap Integrated for CMOS Battery-free Operation
Watchdog TimerSoftware Programmable Supports 256 Levels System Reset
Power RequirementPower TypeAT/ATX
Power Input Voltage9~48VDC
Connector3-pin Terminal Block
Power AdapterOptional AC/DC Adapter
.AC/DC 24V/5A, 120W
.AC/DC 24V/9.2A, 220W
PhysicalDimension (WxDxH)242 x 174 x 77 mm
Weight Information3.6 kg
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall / VESA / DIN Rail / Side
Unibody DesignYes
Fanless DesignYes
Jumper-less DesignYes
Cable-less DesignYes
ProtectionReverse Power Input ProtectionYes
Over Voltage ProtectionProtection Range: 51~58V
​Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection15A
Operating SystemWindows- 7th Generation Intel® CPU (Kaby Lake-S): Windows® 10
- 6th Generation Intel® CPU (Skylake-S): Windows® 10/ 8.1/ 7
LinuxSupport by project
EnvironmentOperating Temperature7th Generation Intel® CPU (Kaby Lake-S)
- 35W TDP CPU: -40°C to 50°C
- 51W~65W TDP CPU: -40°C to 45°C
- 73W TDP CPU: -40°C to 40°C
6th Generation Intel® CPU (Skylake-S)
- 35W TDP CPU: -40°C to 70°C
- 51W~65W TDP CPU: -40°C to 55°C
- 80W TDP CPU: -40°C to 40°C
(With Extended Temperature Peripherals; Ambient with Air Flow;
According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
Storage Temperature-40°C to 85°C
Relative Humidity40°C @ 95% RH (non-Condensing)
Shock1. IEC60068-2-27: Operating, 50 Grms, Half-sine 11 ms Duration, w/ SSD
2. IEC/EN61373: Operating, 50 Grms, Half-sine 30 ms Duration, w/ SSD
Vibration1. IEC60068-2-64: Operating, 5 Grms, 5-500 Hz, 3 Axes, w/ SSD
2. IEC/EN61373: Operating, 1 Grms, 5-150 Hz, 3Axes, w/ SSD
EMC• CE, UKCA, FCC, ICES-003 Class A
• EN 50155 (EN 50121-3-2 Only)
• E-mark
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
SafetyLVD (IEC/EN60950-1)
Fire ProtectionEN45545-2
MTBF- Time:457,941 Hours
- Database: Telcordia SR-332 Issue3, Method 1, Case 3
ORDERING INFORMATION
Available Models
Model No.Product Description
DX-1000-R117/6th Generation Intel® Xeon® and Core™ Processors,
Extreme Performance, Compact and Modular Rugged Workstation

Package Checklist
√ DX-1000 Rugged Workstation x1√ Power Terminal Block Connector x1
√ CPU Heatsink Thermal Pad x1√ Remote Power On/Off Terminal Block Connector x1
√ Screw Pack x1√ Fan Terminal Block Connector x1
√ Wall Mounting Kit x1√ DVI-I to VGA Adaptor x1

Optional Modules & Accessories
Model No.Description
CFM-IGN01CFM Module with Power Ignition Sensing Control Function, Select 12V/24V
CFM-PoE01CFM Module with PoE Control Function, Individual Port 25.5W
CMI-COM01/UB0903CMI Module with 2x RS232/422/485, 1x Universal Bracket [97 x 18 mm]
CMI-DIO01/UB0918CMI Module with 16x Optical Isolated DIO (8 in/8 out) / 1x Universal Bracket [97 x 18 mm]
CMI-LAN01-R12/UB0912CMI Module with 4x RJ45 Ports, Intel® I210 GbE LAN / 1x Universal Bracket [97 x 18 mm]
CMI-M12LAN01-R12/UB0910CMI Module with 4x M12 A Coded Connectors, Intel® I210 GbE LAN / 1x Universal Bracket [97 x 18 mm]
CMI-XM12LAN01-R10/UB0930-R10CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports / Universal Bracket with 4x M12 X-Coded Cutout for DX Series
MEC-COM-M212-TDB9/UB0903Mini-PCIe Module with 2x COM Ports / 1x Universal Bracket [97 x 18 mm]
MEC-COM-M334-TDB9/2xUB0903Mini-PCIe Module with 4x COM Ports / 2x Universal Brackets [97 x 18 mm]
MEC-LAN-M102-30/UB0911Mini-PCIe Module with 2x LAN Ports / 1x Universal Bracket [97 x 18 mm]
FAN-EX101External Fan with 4pin Terminal Block Plug, Mounting Bracket, Support smart fan
GS120A24-CINAdapter AC/DC 24V 5.0A 120W with 3pin Terminal Block Plug 5.0mm Pitch, with Tubes, Level VI
GS220A24-CINAdapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with Tubes, Level VI
Side-DXDX Series Side Mount Kit
DIN01Dinrail Mount Kit, KMRH-K175
