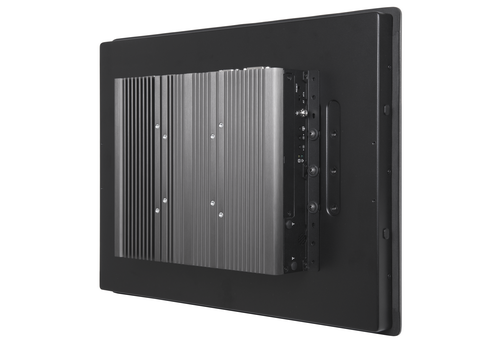

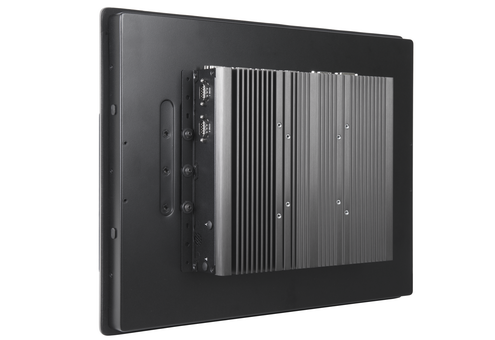

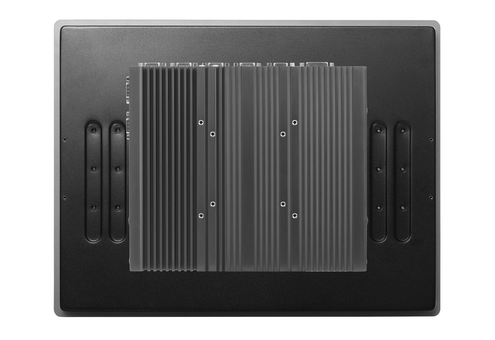

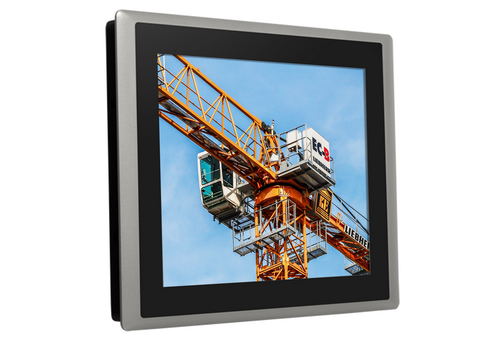

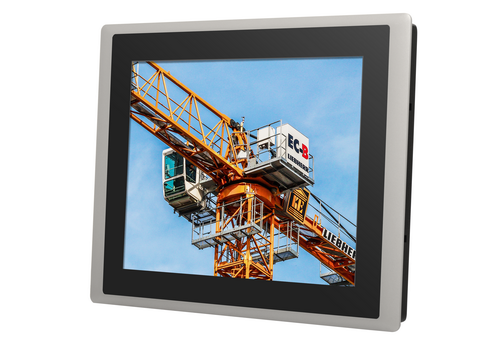

CS-115 / P2002 Series

15" TFT-LCD Sunlight Readable Touch Panel PC with 6th Gen. Intel® Core™ Processor

PRODUCTS FEATURES
  • 15” TFT-LCD with Ultra High Brightness up to 1,800 nits and 1024 x 768 (XGA) Resolution
  • Onboard Intel® 6th Generation Core™ Processor U Series (15W)
  • Supports 2x DDR4 SO-DIMM Socket, up to 32 GB
  • Integrated Intel® HD Graphics 520, Triple Display Support
  • 2x 2.5” SATA Drive Bay, 1x mSATA, and 1x CFast Socket
  • Rich I/O (2x GbE LAN, 6x COM, 5x USB, 16x Isolated DIO)
  • 2x Full-size Mini-PCIe Socket for Wireless and I/O Expansion
  • Wide Range Operating Temperature -20°C to 70°C
  • Designed with Aluminum Die-casting Front Frame
  • True Flat IP65 Front Panel Protection
  • Supports Panel / VESA / Rack Mounting
  • Convertible Display System (CDS) Technology Supported
  • PCI/PCIe Expandable Version Available (For P2002E only)
OVERVIEW
CS-115/P2002 Series is a 15" TFT-LCD sunlight readable touch panel PC offering 1,800 nits ultra high brightness and 1024 x 768 (XGA) resolution. The system is equipped with high-performance Intel® 6th generation Core™ U series processor and provides extensive I/O including 2x GbE, 5x USB, 6x RS232/422/485, 8x DI/8x DO, 1x VGA and 1x DVI-D. It also supports 2x Mini-PCIe slot and 1x SIM socket for a variety of wireless connections, such as BT/WiFi and 3G/LTE. In addition, there are 3 types of storage devices including 2.5" SATA HDD (RAID 0/1), mSATA and CFast. The accessible design of these storage devices allows quick data access and easy maintenance.

CS-115/P2002 Series supports Convertible Display System (CDS) technology. Comparing to regular standalone panel PCs, it can lower maintenance cost and reduce unplanned downtime. For greater flexibility, CS-115/P2002 Series has PCI/PCIe expandable version and PoE/power ignition functions by additional CFM (Control Function Module).

Furthermore, CS-115/P2002 Series is a truly rugged display system supporting wide range operating temperature (-20°C to 70°C), IP65 dust/waterproof front panel, wide range DC power input (9 to 48VDC) and rigorous industrial protections.

Product Category >>>> Modular Panel PC & Industrial Monitor
SPECIFICATION

CS-115

Model NameCS-115
DisplayLCD Size15" (4:3)
Max. Resolution1024 x 768 (XGA)
Brightness (cd/m2)1800
Contract Ratio800 : 1
LCD Color16.2M
Pixel Pitch (mm)0.297 (H) x 0.297 (V)
Viewing Angle (H-V)160 / 150
Backlight MTBF50,000 hrs (LED Backlight)
Touch ScreenTouchscreen TypeProjected Capacitive
PhysicalDimension (W x D x H)408 x 312.4 x 59.2 mm
Weight Information4.36kg
Mechanical ConstructionFlat Rugged Aluminum Die-casting Bezel
EnvironmentFront Panel ProtectionIP 65 Compliant
Operating Temperature-20°C to 70°C (With Industrial Grade Peripherals; Ambient with air flow)
Storage Temperature-30°C to 70°C
Relative Humidity90% RH @ 40°C (Non-condensing)
EMCCE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
SafetyUL, cUL, CB, IEC, EN 62368-1

P2002 Series

Model NameP2002P2002E
SystemProcessorOnboard 6th Intel® Core™ U processors (Skylake)
• Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz)
• Intel® Core™ i3-6100U processor (3M Cache, 2.30 GHz)
• TDP: 15 W
Memory2x DDR4 2133 MHz 260-Pin SO-DIMM Socket
Support Un-buffered and Non-ECC Type up to 32 GB
BIOSAMI 64Mbit SPI BIOS
GraphicsGraphics EngineIntegrated Intel® UHD Graphics 520
Maximum Display OutputSupports Triple Independent Display
CDS1x CDS Connector for Cincoze Display Module
VGA1x VGA Connector(1920 x 1080 @60Hz), DB-15
DVI-D1x DVI-D Connector (1920 x 1080 @ 60Hz)
AudioAudio CodecRealtek® ALC888, High-Definition Audio
Speaker-out1x Speaker-out, Phone Jack 3.5mm
Mic-in1x Mic-in, Phone Jack 3.5mm
I/OLAN2x GbE LAN (Supports WoL, Teaming, Jumbo Frame & PXE), RJ45
- GbE1: Intel® I219LM
- GbE2: Intel® I210
USB4x USB 3.2 Gen1 (Type A), 1x USB 2.0(Type-A)
Serial Port6x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9
DIO16x Isolated Digital I/O (8in/8out), 10-Pin Terminal Block
StorageSSD/HDD2x 2.5" SATA HDD/SSD Bay, Support RAID 0/1 (Gen3)
mSATA2x mSATA (One Shared by Mini-PCIe Socket) (Gen2)
CFast1x CFast Socket (Gen3)
ExpansionMini PCI Express2x Full-size Mini-PCIe Socket
PCI Express • 1x PCI or 1x PCIe x4 Expansion slot
   (with Optional Riser Card)
• maximum dimension of add-on card:
   100mm x 200mm (H x L)
SIM Socket1 x Front Accessible SIM Socket
Universal Bracket1x Universal I/O Bracket
CFM (Control Function Module) Interface2x CFM Interface for optional CFM-IGN or CFM-PoE (max 25.5W) Module Expansion
CDS (Convertible Display System) Technology1x Convertible Display System (CDS) Interface, Compact PCI Connector
Other FunctionInstant RebootSupport 0.2sec Instant Reboot technology
Watchdog TimerSoftware Programmable Supports 256 Levels System Reset
Internal SpeakerAMP 2W + 2W
OSD FunctionLCD On/Off, Brightness Up, Brightness Down
Reset Button1x Reset Button
External Fan Connector1x External Fan Connector, 4-pin Terminal Block
PowerPower Button1x ATX Power On/Off Switch
Power Mode Switch1x AT/ATX Mode Switch
Power Input1x 3-pin Terminal Block Connector with Power Input 9~48VDC
Power Adapter (Optional)1x Optional AC/DC 12V/5A 60W or 24V/5A 120W
1x Optional AC/DC 24V/9.2A 220W (For P2002E only)
Remote Power On/Off1x Remote Power On/Off Connector, 2-pin Terminal Block
PhysicalDimension ( W x D x H )254.5 x 220 x 54mm254.5 x 220 x 72 mm
Weight Information2.92 kg3.18 kg
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall / VESA / CDS
Physical DesignFanless Design
Jumper-less Design
Reliability & ProtectionReverse Power InputYes
Over Voltage ProtectionProtection Range: 51~58V
Protection Type: shut down operating voltage, re-power on at the present level to recover
Over Current Protection15A
CMOS Battery BackupSuperCap Integrated for CMOS Battery Maintenance-free Operation
Operating StystemMicrosoft® Windows®Windows®10, Windows® 8.1, Windows® 7
LinuxLinux® Kernel 4.4
EnvironmentOperating TemperatureAmbient with Air Flow: -25°C to 70°C (with Extended Temperature Peripherals)
Storage Temperature-40°C to 85C
Relative Humidity95% RH @ 40˚C (Non-condensing)
ShockOperating, 50 Grms, Half-sine 11ms Duration (w/ SSD, according to IEC60068-2-27)
VibrationOperating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
EMCCE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
ORDERING INFORMATION
Available Models
Model No.Product Description
CS-115C-R10/P2002-i5-R1015" TFT-LCD 1800 nits Sunlight Readable Touch Panel PC with Intel® Core™ i5-6300U Processor and P-Cap. Touch
CS-115C-R10/P2002E-i5-R1015" TFT-LCD 1800 nits Sunlight Readable Touch Panel PC with Intel® Core™ i5-6300U Processor, P-Cap. Touch and 1x Reserved Expansion Slot
CS-115C-R10/P2002E-i5-E4-R1015" TFT-LCD 1800 nits Sunlight Readable Touch Panel PC with Intel® Core™ i5-6300U Processor, P-Cap. Touch and 1x PCIe x4 Expansion Slot
CS-115C-R10/P2002E-i5-PI-R1015" TFT-LCD 1800 nits Sunlight Readable Touch Panel PC with Intel® Core™ i5-6300U Processor, P-Cap. Touch and 1x PCI Expansion Slot
CS-115C-R10/P2002-i3-R1015" TFT-LCD 1800 nits Sunlight Readable Touch Panel PC with Intel® Core™ i3-6100U Processor and P-Cap. Touch
CS-115C-R10/P2002E-i3-R1015" TFT-LCD 1800 nits Sunlight Readable Touch Panel PC with Intel® Core™ i3-6100U Processor, P-Cap. Touch and 1x Reserved Expansion Slot
CS-115C-R10/P2002E-i3-E4-R1015" TFT-LCD 1800 nits Sunlight Readable Touch Panel PC with Intel® Core™ i3-6100U Processor, P-Cap. Touch and 1x PCIe x4 Expansion Slot
CS-115C-R10/P2002E-i3-PI-R1015" TFT-LCD 1800 nits Sunlight Readable Touch Panel PC with Intel® Core™ i3-6100U Processor, P-Cap. Touch and 1x PCI Expansion Slot

Model Configuration
 CS-115CP2002 (i3/i5)P2002E (i3/i5/E4/PI)
CS-115C/P2002VV--
CS-115C/P2002EV--V

Package Checklist
√ CS-115/P2002 Series Panel PC x 1√ Power Terminal Block Connector (Female) x 1
√ Panel Mounting Kit x 1√ Screw Pack x 1
√ Fan Terminal Block Connector x 1√ Remote Power On/Off Terminal Block Connector x 1
√ DIO Terminal Block Connector (Female) x 2

Optional Modules and Accessories
Model No.Description
MEC-COM-M212-DB9Mini-PCIe Module with 2x RS-232 Serial Ports, 1x Standard DB9 Cable
MEC-COM-M334-TDB9Mini-PCIe Module with 4x RS-232/422/485 Serial Ports, 2x Thin DB9 Cable
MEC-LAN-M102-30Mini-PCIe Module with 2x LAN Ports, 2x 30cm
MEC-USB-M102-30Mini-PCIe Module with 2x USB 3.2 Gen1 Ports
CFM-IGN100CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (41 x 35 mm)
CFM-PoE100PoE Control Function Module, Individual Port 25.5W (50 x 44 x 15 mm) (For P2002 only)
CFM-PoE101PoE Control Function Module, Individual Port 25.5W (50 x 44 x 15 mm) (For P2002E only)
RC-E4-01Riser Card with 1x PCIex4 Slot(For P2002E only)
RC-PI-01Riser Card with 1x PCI Slot(For P2002E only)
UB0503Universal Bracket with 2x DB9 Cutout
UB0504Universal Bracket with 4x DB9 Cutout
UB0511Universal Bracket with 2x RJ45 Cutout
UB0514Universal Bracket with 2x USB Cutout
URM01Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
GST220A24-CINAdapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug 5.0mm Pitch, with TUBES, GST220A24-CIN
GST120A24-CINAdapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp(-30°C ~ +70°C), level VI
GST60A12-CIN1Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp(-30°C ~ +70°C)
SL2-SL3US 2 heads power cord, US B type to IEC C13,SVT 18AWG/3C Black 1.8M
SL6-SL3EU 2 heads power cord, EU G type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M
QP026-SL3UK 2 heads power cord, UK I type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M
