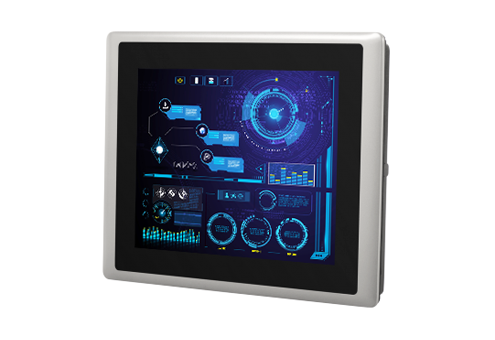

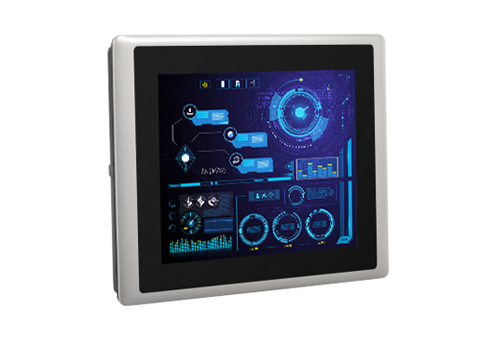

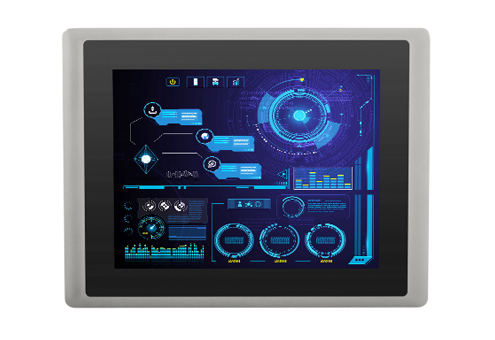

CV-110 / M1001

10.4" TFT SVGA 4:3 Monitor with Touch (Projected Capacitive / Resistive 5-wire), 1x USB, 1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort
  • 10.4" TFT SVGA 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
  • Designed with Aluminum Die-Cast Front Frame
  • 1x USB, 1x COM, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
  • IP 65 Compliant Front Panel
  • Support Panel / Wall / VESA Mounting
  • Convertible Display System (CDS) Supported
  • Built-in Two 5W Internal Speakers
The 10.4" touch monitor with resistive 5-wire / projected capacitive touch screen offers resolution up to 800x600 (SVGA) and 400 nits brightness. CV-110/M1001 features flat surface and IP65 dust/waterproof front panel. In addition, designed with  aluminum  die-cast front frame, it is rugged and reliable for  industrial  environment. CV-110/M1001 supports Convertible Display System (CDS) which allows to configure, upgrade and maintain your touch monitor easily.
CV-110/M1001 supports both digital and analog signal input via three types of display interface: VGA,  DVI-D  and Display-Port.   Touch  screen can be connected with USB or COM port. It has OSD function for adjusting the viewing options of  display   . With support to  wide  range power input from 9~48VDC, CV-110/M1001 is designed as an ideal solution for  industrial  application.
Model NameCV-110/M1001
Model No.CV-110R/M1001CV-110C/M1001
DisplayLCD Size10.4" (4:3)
Max. Resolution800 x 600
Brightness (cd/m2)400
Contrast Ratio700 : 1
LCD Color16.2M
Pixel Pitch (mm)0.264 (H) x 0.264 (V)
Viewing Angle (H-V)160 / 130
Backlight MTBF70000 hrs (LED Backlignt)
TouchResistive 5-wireV-
Projected Capacitive-V
SystemA/D BoardNovatek NT68856UFG
VGA Input1
DVI-D Input1
DisplayPort Input1
USB 2.0 Input1
COM Port Input (Resistive Only)1-
Audio Input1
Power Switch
Other FeaturesAudio AMP 5W + 5W (Internal Speaker)
OSD FunctionLCD On/Off, Auto, Menu, Up and Down
Multi-language OSD
PowerPower Requirement9~48VDC
Connector3-pin Terminal Block
Power AdaptorOptional AC/DC 12V/5A, 60W
PhysicalDimension (WxHxD)295 x 227.3 x 66 mm
Weight Information3.36 kg
Construction Front PanelDie-cast Flat Surface
MountingPanel/ Wall/ VESA Mounting
Fanless DesignV
Operating SystemWindowsWindows 10
Windows 8.1
Windows 7
LiunxKernel 3.x
EnvironmentOperating TemperatureAmbient with air flow: -5°C to 60°C
(with Industrial Grade Peripherals)
Storage Temperature-20°C to 75°C
Relative humidity90% RH @ 40°C (non-condensing)
IP LevelIP 65 Compliant Front Panel
Available Models
Model No.Product Description
CV-110R/M100110.4" TFT SVGA 4:3 Monitor with Resistive 5-wire Touch, 1x USB, 1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort
CV-110C/M100110.4" TFT SVGA 4:3 Monitor with Projected Capacitive Touch, 1x USB, 1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort
Package Checklist
√ CV-110/M1001 Touch Monitor x 1
√ Panel Mounting Kit x 1
√ Utility DVD Driver x 1
√ Power Terminal Block Connector x 1
√ USB Cable x 1
√ VGA Cable x 1
√ Screw Pack x 1

Optional Accessories
Model No.Description
GSM60A12-CINAdapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch, GSM60A12-P1J
DVI-D CableDVI-D male to DVI-D male Cable 1.8M
SL2-SL3US 2 heads power cord, US B type to IEC C13, SVT 18AWG/3C Black 1.8M SL-2+SL-3
SL6-SL3EU 2 heads power cord, EU G type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M SL-6+SL-3
QP026-SL3UK 2 heads power cord, UK I type to IEC C13, H05VV-F 0.75mm2/3G Black 1.8M QP026+SL-3
