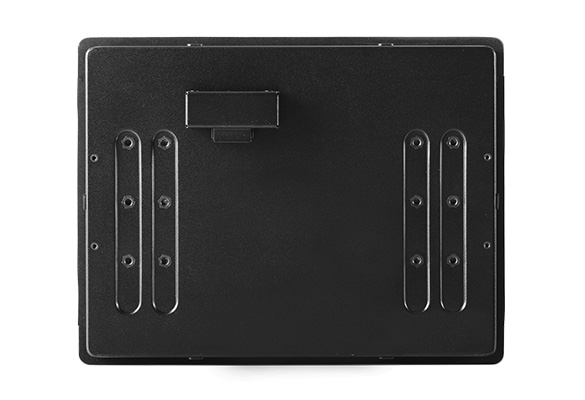

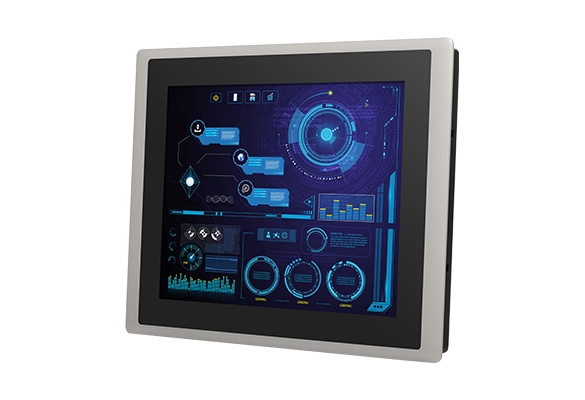

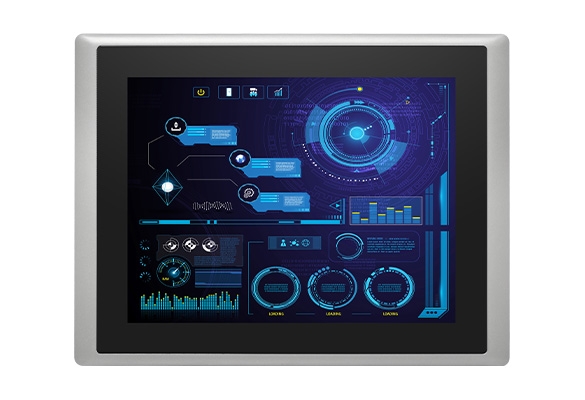

CV-110 Series

10.4" TFT SVGA 4:3 Display Module with Resistive 5-wire / Projected Capacitive Touch

PRODUCTS FEATURES
  • 10.4“ SVGA TFT 4:3 LCD with Resistive 5-wire Touch / Projected Capacitive Touch
  • 70,000 hrs LED Backlight Life
  • Resolution up to 800 x 600 (SVGA)
  • 400 nits Brightness
  • Designed with Aluminum Die-cast Front Frame
  • IP 65 Compliant Front Panel
  • Convertible Display System (CDS) Supported
  • Safety: UL, cUL, CB, IEC, EN 62368-1
OVERVIEW
CV-110 Series is a 10.4" LCD display module with resistive 5-wire / projected capacitive touch screen. It offers resolution up to 800x600 (SVGA) and 400 nits brightness. CV-110 Series features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame, it is rugged and reliable for industrial environment. With support for Convertible Display System (CDS) technology, CV-110 Series allows you to configure, upgrade and maintain your Convertible Display System easily.

>>>> Panel PC Technology
SPECIFICATION

CV-110 Series

Model NameCV-110RCV-110C
DisplayLCD Size10.4" (4:3)
Max. Resolution800 x 600
Brightness (cd/m2)400
Contract Ratio700 : 1
LCD Color16.2M
Pixel Pitch (mm)0.264 (H) x 0.264 (V)
Viewing Angle (H-V)160 / 130
Backlight MTBF70,000 hrs (LED Backlight)
Touch ScreenTouchscreen TypeResistive 5-wireProjected Capacitive
PhysicalDimension (W x D x H)295 x 227.3 x 56.2 mm
Weight Information2.24 kg
Mechanical ConstructionDie-Casting Flat Surface
EnvironmentFront Panel ProtectionIP 65 Compliant
Operating TemperatureAmbient with Air flow: -20°C to 75°C (with Industrial Grade Peripherals)Ambient with Air flow: -20°C to 80°C (with Industrial Grade Peripherals)
Storage Temperature-30°C to 80°C
Relative Humidity90% RH @ 40°C (Non-condensing)
EMCCE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
SafetyUL, cUL, CB, IEC, EN 62368-1
ORDERING INFORMATION
Available Models
Model No.Product Description
CV-110R-R1010.4" TFT SVGA 4:3 Display Module with Resistive 5-wire Touch
CV-110C-R1110.4" TFT SVGA 4:3 Display Module with Projected Capacitive Touch

Package Checklist
√ CV-110 Series Display Module x 1√ Panel Mounting Kit x 1

DOWNLOADS
Datasheet
SubjectRelease DateDownload
CV-110 Series Datasheet2023/07/24Download
Manual
SubjectRelease DateDownload
CV-100 Series Manual2024/02/22Download
