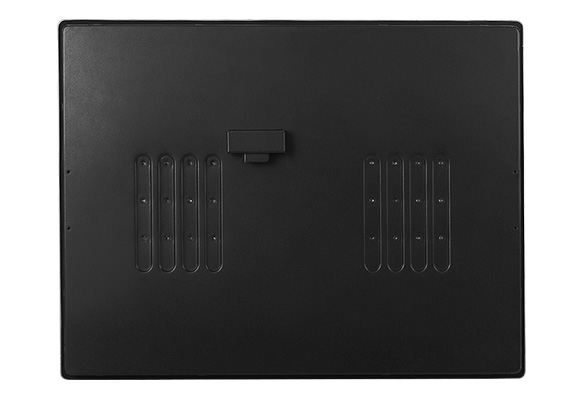

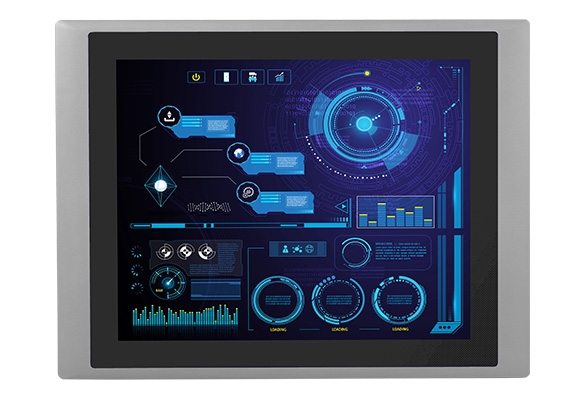

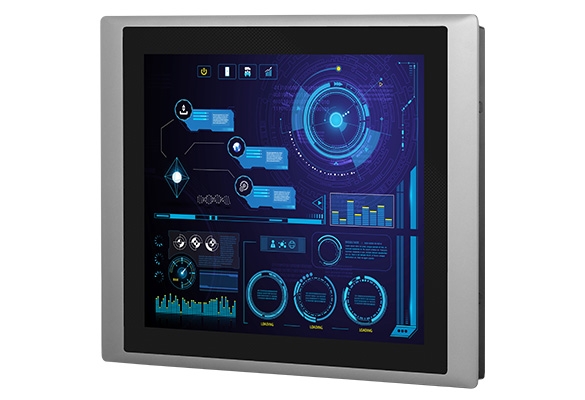

CV-119 Series

19" TFT SXGA 5:4 Display Module with Resistive 5-wire Touch / Projected Capacitive Touch / Glass Only

PRODUCTS FEATURES
  • 19" TFT SXGA 5:4 LCD with Resistive 5-wire Touch / Projected Capacitive Touch / Glass Only
  • 50,000 hrs LED Backlight Life
  • Resolution up to 1280 x 1024 (SXGA)
  • 350 nits Brightness
  • Designed with Aluminum Die-cast Front Frame
  • IP 65 Compliant Front Panel
  • Convertible Display System (CDS) Supported
  • Safety: UL, cUL, CB, IEC, EN 62368-1
OVERVIEW
CV-119 Series is 19" LCD display module with resistive 5-wire touch, projected capacitive touch, or glass only. It offers resolution up to 1280x1024 (SXGA) and 350 nits brightness. CV-119 Series features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame, it is rugged and reliable for industrial environment. With support for Convertible Display System (CDS) technology, CV-119 Series allows you to configure, upgrade and maintain your Convertible Display System easily.

>>>> Panel PC Technology
SPECIFICATION

CV-119 Series

Model NameCV-119RCV-119CCV-119G
DisplayLCD Size19" (5:4)
Max. Resolution1280 x 1024
Brightness (cd/m2)350
Contract Ratio1000 : 1
LCD Color16.7M
Pixel Pitch (mm)0.294 (H) x 0.294 (V)
Viewing Angle (H-V)170 / 160
Backlight MTBF50,000 hrs (LED Backlight)
Touch ScreenTouchscreen TypeResistive 5-wireProjected CapacitiveGlass Screen
PhysicalDimension (W x D x H)510 x 389.3 x 63.2 mm
Weight Information6.96 kg
Mechanical ConstructionDie-Casting Flat Surface
EnvironmentFront Panel ProtectionIP 65 Compliant
Operating Temperature0°C to 50°C (with Industrial Grade peripherals; Ambient with air flow)
Storage Temperature-20°C to 60°C
Relative Humidity80% RH @ 50°C (non-Condensing)
EMCCE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
SafetyUL, cUL, CB, IEC, EN 62368-1
ORDERING INFORMATION
Available Models
Model No.Product Description
CV-119R-R1019" TFT SXGA 5:4 Display Module with Resistive 5-wire Touch
CV-119C-R1119" TFT SXGA 5:4 Display Module with Projected Capacitive Touch
CV-119G-R1019" TFT SXGA 5:4 Display Module without Touch

Package Checklist
√ CV-119 Series Display Module x 1√ Panel Mounting Kit x 1
DOWNLOADS
Datasheet
SubjectRelease DateDownload
CV-119 Series Datasheet2023/07/24Download
Manual
SubjectRelease DateDownload
CV-100 Series Manual2024/02/22Download
