CS-119

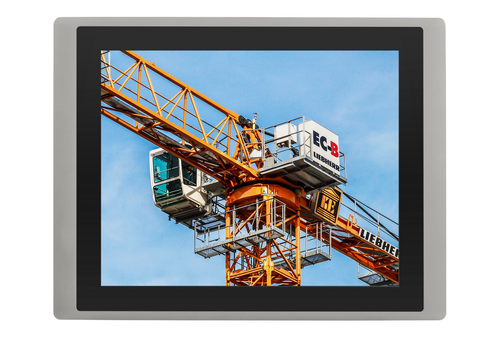

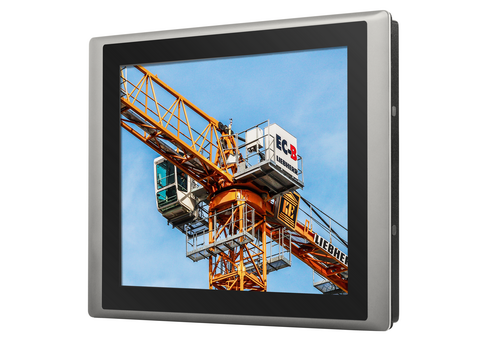

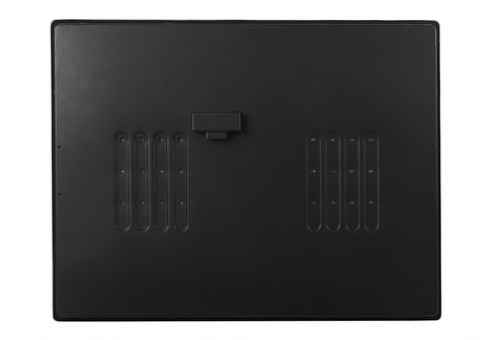

19" TFT-LCD Sunlight Readable Display Module with Projected Capacitive Touch
產品特點
  • 19” TFT-LCD with Projected Capacitive Touch
  • Ultra High Brightness up to 1,600 nits
  • Resolution up to 1280 x 1024 (SXGA)
  • 50,000 hrs LED Backlight Life
  • Wide Range Operating Temperature -20°C to 70°C
  • IP65 Front Panel Protection
  • Flat Rugged Aluminum Die-casting Bezel
  • Convertible Display System (CDS) Technology Supported
  • Safety: UL, cUL, CB, IEC, EN 62368-1
產品介紹
CS-119 is 19" TFT-LCD touch display module. It offers 1,600 nits ultra high brightness and 1280 x 1024 (SXGA) resolution, allowing viewers to see clear images even under any bright ambient light or direct sunlight environments. CS-119 is a rugged and reliable display solution featuring wide range operating temperature -20°C to 70°C, a solid aluminum die-casting front bezel and true flat IP65 front panel protection. Supporting Convertible Display System (CDS) technology, CS-119 allows you to configure, upgrade and maintain your display system according to your need.
詳細規格

CS-119

Model NameCS-119
DisplayLCD Size19" (5:4)
Max. Resolution1280 x 1024 (SXGA)
Brightness (cd/m2)1600
Contract Ratio1000 : 1
LCD Color16.7M
Pixel Pitch (mm)0.294 (H) x 0.294 (V)
Viewing Angle (H-V)170 / 160
Backlight MTBF50,000 hrs (LED Backlight)
Touch ScreenTouchscreen TypeProjected Capacitive
PhysicalDimension (W x D x H)510 x 389.3 x 63.2 mm
Weight Information6.96 kg
Mechanical ConstructionFlat Rugged Aluminum Die-casting Bezel
EnvironmentFront Panel ProtectionIP 65 Compliant
Operating Temperature-20°C to 70°C (With Industrial Grade Peripherals; Ambient with air flow)
Storage Temperature-30°C to 70°C
Relative Humidity90% RH @ 40°C (Non-condensing)
EMCCE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
SafetyUL, cUL, CB, IEC, EN 62368-1
訂購資訊
Available Models
Model No.Product Description
CS-119C-R1119" TFT-LCD 1600 nits SXGA 5:4 Display Module with Projected Capacitive Touch

Package Checklist
√ CS-119 Display Module x 1√ Panel Mounting Kit x 1
相關下載
Datasheet
檔案名稱發行日期下載
CS-119 Datasheet2023/07/24下載專區
Manual
檔案名稱發行日期下載
CS-100 Series Manual2024/02/22下載專區
