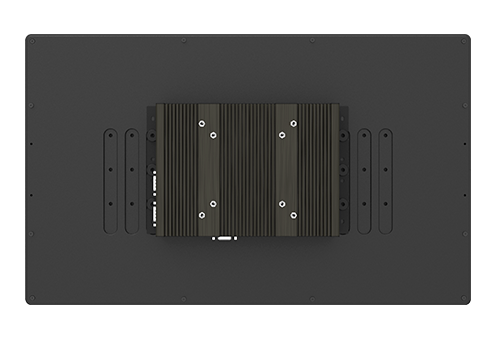

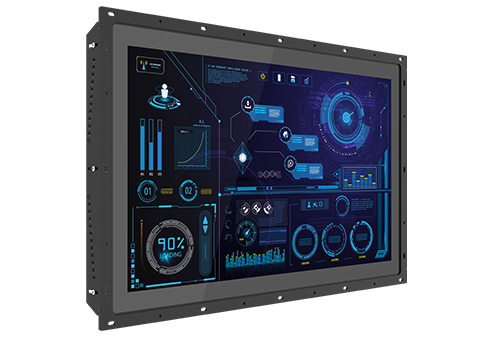

CO-W121C / P1301 Series
- 21,5" TFT-LCD mit projiziertem kapazitivem Touch
- Intel® Alder Lake-N-Prozessor N97 und Atom® x7425E-Prozessor onboard
- 1 x DDR5 SO-DIMM Sockel, unterstützt bis zu 4800MHz & 16GB Speicher
- 1 x M.2 Key E Typ 2230 Sockel für Wireless / Intel CNVi Modul Erweiterung
- 1 x M.2 Key B Typ 3042 / 3052 Sockel für 5G / Storage / Erweiterungskarten
- Frontplatte IP65-konform
- Robuste Frontblende aus Aluminiumdruckguss
- Unterstützt Flach-, Standard-, VESA- und Rackmontage
- Unterstützt die patentierte CDS-Technologie von Cincoze (Patent Nr. M482908)
Die industrielle Open-Frame-Panel-PC-Serie von Cincoze (CO-100/P1301) ist mit einem Intel® Alder Lake-N Prozessor, reichhaltigen I/O-Schnittstellen (2.5 GbE LAN, USB 3.2 Gen2x1, COM, DIO, usw.) und flexibler Erweiterung ausgestattet. Das herausragendste Merkmal ist das Design des verstellbaren Montagehalters (Patent Nr.: D224544, D224545, I802427), das eine flexible Einstellung und mehrstufige Verriegelung ermöglicht, um die Installation in Schränken verschiedener Materialien und Dicken erheblich zu vereinfachen. Dies reduziert effektiv den Aufwand, der beim Integrieren in die entsprechenden Geräte erforderlich ist. Das robuste Design berücksichtigt die Anforderungen für HMI-Anwendungen vor Ort in anspruchsvollen industriellen Umgebungen.
Product Category >>>> Modular Panel PC & Industrial Monitor
KI und Multitasking-Leistung
——
Der CO-100/P1301 ist mit einem Intel Alder Lake-N Quad-Core-Prozessor auf Basis des Intel® 7-Prozesses ausgestattet. Im Vergleich zur vorherigen Elkhart Lake-Plattform wurde die CPU Single Thread Leistung um bis zu 130 % verbessert, und die Multi Thread Leistung wurde um 109 % verbessert. Der integrierte UHD-Grafikchip verbessert die KI-Inferenz mit einer 6,85-fachen Objekterkennungsleistung.
Bequemes Upgrade und Reparatur
——
Die Cincoze Convertible Display System (CDS)-patentierte Technologie erleichtert Wartung und zukünftige Upgrades vor Ort. Das Austauschen eines Displays oder die Verbesserung der Systemleistung erfordert nur den Austausch eines einzigen Bauteils, was die Upgrade-Kosten erheblich senkt.
Patent No. M482908Einfache Installation
——
Der exklusive verstellbare Montagehalter (Patent Nr.: I802427) bietet Optionen für die Anpassung an verschiedene Dicken und unterstützt mehrere Verriegelungsmethoden (Panel- und Boss-Typen), was eine einfachere und bequemere Integration für Industriemaschinen mit Flat Mount und Standard Mount ermöglicht.
Patent No.: D224544, D224545, I802427
Integrierte Struktur
——
Das flexible und zuverlässige Design des Open-Frame-Panel-PC ermöglicht den Einsatz in Gerätemaschinen. Nach Entfernen des Montagehalters kann er direkt mit der VESA-Halterung für den eigenständigen Gebrauch installiert oder in einem 19-Zoll-Rack für die Display Funktion eingebaut werden.
Weiter Temperaturbereich, sicher und zuverlässig
——
Die CO-100/P1301-Serie verfügt über eine Reihe von industriellen Schutzvorrichtungen wie ein lüfterloses Design, einen weiten Betriebstemperaturbereich (0°C bis 60°C), einen weiten Stromeingangsbereich (9 bis 48VDC) und ein IP65 staub- / wasserdichtes Frontpanel für HMI-Anwendungen in anspruchsvollen industriellen Umgebungen.
CO-W121C
| Model Name | CO-W121C | |
|---|---|---|
| Display | LCD Size | 21.5” (16:9) |
| Resolution | 1920 x 1080 | |
| Brightness | 300 cd/m2 | |
| Contract Ratio | 5000 : 1 | |
| LCD Color | 16.7M | |
| Pixel Pitch | 0.24825 (H) x 0.24825 (V) mm | |
| Viewing Angle | 178 (H) / 178 (V) | |
| Backlight MTBF | 50,000 hrs | |
| Touch Screen | Touchscreen Type | Projected Capacitive Touch |
| Physical | Dimension (W x D x H) | 550 x 343.7 x 63.3 |
| Weight | 7.16 kg | |
| Construction | One-piece and Slim Bezel Design | |
| Mounting Type | Flat / Standard / VESA / Rack Mount | |
| Mounting Bracket | Pre-installed Mounting Bracket with Adjustable Design ( Support 11 different stages of adjustment ) | |
| Protection | Ingress Protection | Front Panel IP65 Compliant * According to IEC60529 |
| Environment | Operating Temperature | Ambient with Air flow: 0°C to 60°C (with Industrial Grade Peripherals) |
| Storage Temperature | -20°C to 60°C | |
| Humidity | 80% RH @ 50°C (Non-condensing) | |
| EMC | CE, UKCA, FCC, ICES-003 Class A | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | |
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |
P1301
| Model Name | P1301 | |
|---|---|---|
| System | Processor | • Onboard Intel® Alder Lake-N Series Processor: - Intel® Processor N97 4 Cores Up to 3.60 GHz, TDP 12W - Intel Atom® x7425E 4 Cores Up to 3.40 GHz, TDP 12W |
| Memory | • 1x DDR5 4800MHz SO-DIMM Socket Supports Un-buffered and Non-ECC Type, Up to 16GB | |
| BIOS | • AMI BIOS | |
| Graphics | Graphics Engine | • Integrated Intel® UHD Graphics |
| Maximum Display Output | • Supports Triple Independent Display | |
| CDS | • 1x CDS Connector (1920 x 1080 @60Hz) | |
| DP | • 1x DisplayPort Connector (4096 x 2304 @60Hz) * Verified maximum resolution: 3840 x 2160 @ 60Hz | |
| VGA | • 1x VGA Connector (1920 x 1200 @60Hz) | |
| Audio | Audio Codec | • Realtek® ALC888, High Definition Audio |
| Line-out | • 1x Line-out, Phone Jack 3.5mm | |
| Mic-in | • 1x Mic-in, Phone Jack 3.5mm | |
| I/O | LAN | • 2x 2.5GbE LAN, RJ45 - GbE1 / GbE2: Intel® I225 |
| COM | • 2x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9 | |
| USB | • 3 x USB 3.2 Gen2x1 (10Gbps), Type A • 1 x USB 2.0 (480Mbps), Type A | |
| DIO | • 8x Isolated Digital I/O (4in/4out), 10-Pin Terminal Block | |
| Storage | SSD/HDD | • 1x 2.5" Front Accessible SATA HDD/SSD Bay |
| M.2 SSD | • 1 x M.2 SSD Shared by M.2 Key B Socket | |
| Expansion | M.2 Key E Socket | • 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x1 / USB2.0), Support Wireless/Intel CNVi Module Expansion |
| M.2 Key B Socket | • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x1 / USB3.2 Gen2 x1 / SATA ), Support 5G/Storage/Add-on Card Expansion | |
| SIM Socket | • 1x Front Accessible SIM Socket | |
| CFM (Control Function Module) Interface | • 1x CFM Interface for optional IGN Module Expansion • 1x CFM Interface for optional PoE Module Expansion | |
| Other Function | Clear CMOS Switch | • 1 x Clear CMOS Switch |
| Reset Button | • 1x Reset Button | |
| Instant Reboot | • Support 0.2sec Instant Reboot Technology | |
| Watchdog Timer | • Software Programmable Supports 256 Levels System Reset | |
| OSD Function | • LCD On/Off, Brightness Up, Brightness Down | |
| Internal Speaker | • AMP 2W + 2W | |
| Status LED Indicator | • Power LED, HDD LED | |
| Power | Power Button | • 1x ATX Power On/Off Button |
| Power Mode Switch | • 1x AT/ATX Mode Switch | |
| Power Input | • 9 - 48VDC, 3-pin Terminal Block | |
| Remote Power On/Off | • 1x Remote Power On/Off, 2-pin Terminal Block | |
| Remote Power LED | • 1x Remote Power LED, 2-pin Terminal Block | |
| Operating Stystem | Microsoft® Windows® | • Windows®11, Windows®10 |
| Linux | • Ubuntu 22.04 | |
| Physical | Dimension ( W x D x H ) | • 204.5 x 149 x 46.5mm |
| Weight | • 1.57 kg | |
| Mechanical Construction | • Extruded Aluminum with Heavy Duty Metal | |
| Mounting | • Wall / VESA / CDS / DIN Rail | |
| Physical Design | • Fanless Design • Jumper-less Design | |
| Reliability & Protection | Reverse Power Input | • Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the present level to recover | |
| Over Current Protection | • 15A | |
| CMOS Battery Backup | • SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| MTBF | • 306,338 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | |
| Environment | Operating Temperature | • -40°C to 70°C * PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | • -40°C to 70°C | |
| Relative Humidity | • 95% RH @ 70˚C (Non-condensing) | |
| Shock | • Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | |
| Vibration | • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN61000-6-4, EN61000-6-2 @ DC-input 24V | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded ethernet cable.) • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz | |
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |
| Model No. | Product Description |
|---|---|
| CO-W121C-R10/P1301-N97-R10 | 21.5" TFT-LCD Full HD 16:9 Open Frame Panel PC with Intel® Processor N97 Quad Core Slim Embedded Computer and P-Cap. Touch |
| CO-W121C-R10/P1301-X7425E-R10 | 21.5" TFT-LCD Full HD 16:9 Open Frame Panel PC with Intel® Atom® x7425E Quad Core Slim Embedded Computer and P-Cap. Touch |
| CO-W121C | P1301-N97 | P1301-X7425E | |
|---|---|---|---|
| CO-W121C/P1301-N97 | V | V | -- |
| CO-W121C/P1301-X7425E | V | -- | V |
| • CO-W121C/P1301 Series Panel PC x 1 | • Power Terminal Block Connector x 1 |
| • Thermal Pad (for CPU Thermal Block) x 1 | • Remote Function Terminal Block Connector x 1 |
| • Screw Pack x 2 | • DIO Terminal Block Connector x 1 |
| • M.2 Key B Type 3052 to 3042 Adapter Bracket x 1 |
| Model No. | Description |
|---|---|
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm) |
| CFM-PoE02 | CFM Module with PoE Control Function, Individual Port 25.5W |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C) |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI |
