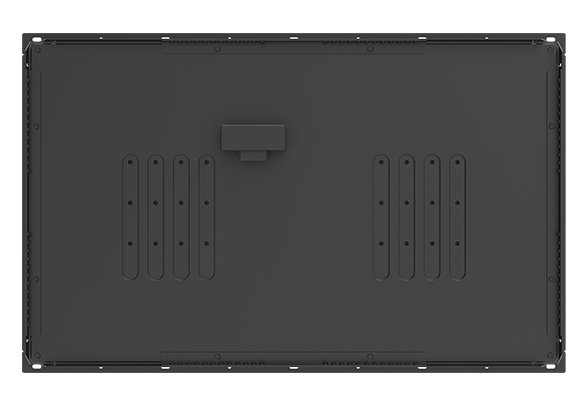

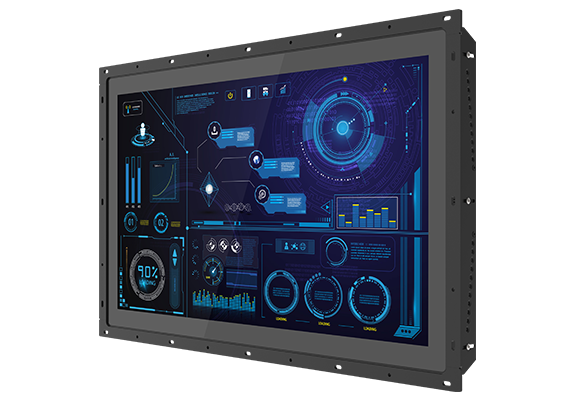

CO-W121C

21.5" TFT-LCD Open Frame Display Module

PRODUCTS FEATURES
  • 21.5" TFT-LCD with Projected Capacitive Touch
  • Cincoze Patent CDS Technology Support
  • Designed with Adjustable Mounting Bracket
  • Support Flat / Standard / VESA / Rack Mount
  • Front Panel IP65 Compliant
  • Wide Operating Temperature
  • Safety: UL, cUL, CB, IEC, EN 62368-1
OVERVIEW
All new open frame - CO-100 fits any machine perfectly

Cincoze open frame display modules (CO-W121C) use our patented CDS (Convertible Display System) technology to connect with a computer module (P2000 or P1000 series) to form an industrial panel PC or connect with a monitor module (M1100 series) to form an industrial touch monitor. Designed for equipment manufacturers, easy installation is the main advantage of the CO-W121C. The integrated structure, exclusive adjustable mounting bracket, and support for various mounting methods enable a perfect fit in cabinets of different materials and thicknesses. The robust design also meets the application needs of harsh industrial environments.

Product Category >>>> Modular Panel PC & Industrial Monitor


Flexible Design and Easy Installation

Flexible Design
and Easy Installation

——

The CO-100 series includes the exclusive adjustable mounting bracket with thickness adjustment setting, as well as panel and boss type locking. Flat and standard mount options make integration in industrial machinery easy and convenient.

Patent No.: D224544, D224545, I802427



Integrated Structure

——

The CO-100 series is flexible and reliable. As standard, the open frame display module can be deployed in equipment machines, but remove the mounting bracket and it becomes a standalone display module for use with a VESA mount or in a 19" rack.

Integrated Structure

Strong, Reliable and Durable

Strong, Reliable
and Durable

——

The CO-100 series integrated structure design enables wide temperature support (0-60°C) in addition to front IP65 dustproof and waterproof protection, meeting HMI application requirements.

wide temperature support (0-60°C) front IP65 dustproof and waterproof protection




Highly Adaptable
CDS Design

——

Through the patented CDS technology, the CO-100 can be combined with a computer module to become an industrial panel PC, or with a monitor module to become an industrial touch monitor. Easy maintenance and upgrade flexibility are its main advantages.

Patent No. M482908
Highly Adaptable CDS Design

Video
SPECIFICATION

CO-W121C

Model NameCO-W121C
DisplayLCD Size21.5” (16:9)
Resolution1920 x 1080
Brightness300 cd/m2
Contract Ratio5000 : 1
LCD Color16.7M
Pixel Pitch0.24825 (H) x 0.24825 (V) mm
Viewing Angle178 (H) / 178 (V)
Backlight MTBF50,000 hrs
Touch ScreenTouchscreen TypeProjected Capacitive Touch
PhysicalDimension (W x D x H)550 x 343.7 x 63.3
Weight7.16 kg
ConstructionOne-piece and Slim Bezel Design
Mounting TypeFlat / Standard / VESA / Rack Mount
Mounting BracketPre-installed Mounting Bracket with Adjustable Design ( Support 11 different stages of adjustment )
ProtectionIngress ProtectionFront Panel IP65 Compliant * According to IEC60529
EnvironmentOperating TemperatureAmbient with Air flow: 0°C to 60°C (with Industrial Grade Peripherals)
Storage Temperature-20°C to 60°C
Humidity80% RH @ 50°C (Non-condensing)
EMCCE, UKCA, FCC, ICES-003 Class A
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 3V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
SafetyUL, cUL, CB, IEC, EN 62368-1
ORDERING INFORMATION
Available Models
Model No.Product Description
CO-W121C-R1021.5" TFT-LCD Full HD 16:9 Open Frame Display Module with Projected Capacitive Touch

Package Checklist
CO-W121C
√ CO-W121C Display Module x1
DOWNLOADS
Datasheet
SubjectRelease DateDownload
CO-W121C Datasheet2023/07/25Download
Manual
SubjectRelease DateDownload
CO-100 Series User Manual2024/02/22Download
