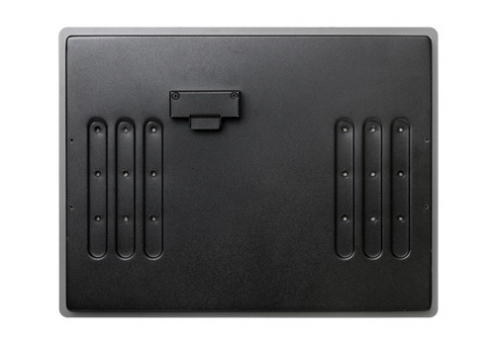

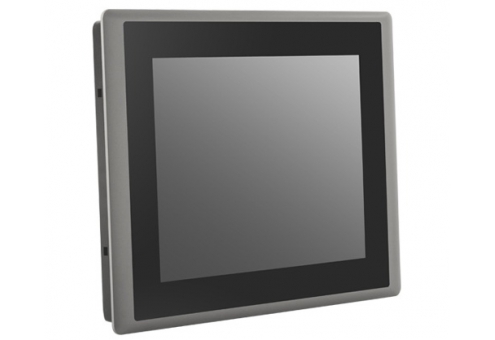

CV-112

12.1" TFT SVGA 4:3 Display Module with Resistive 5-wire / Projected Capacitive Touch

PRODUCTS FEATURES
  • 12.1" TFT SVGA 4:3 LCD with Resistive 5-wire / Projected Capacitive Touch
  • 50,000 hrs LED Backlight Life
  • Resolution up to 800 x 600 (SVGA)
  • 450 nits Brightness
  • Designed with Aluminum Die-cast Front Frame
  • IP 65 Compliant Front Panel
  • Convertible Display System (CDS) Supported
OVERVIEW
CV-112 is 12.1" LCD display module with resistive 5-wire / projected capacitive touch screen. It offers resolution up to 800x600 (SVGA) and 450 nits brightness. CV-112 features flat surface and IP65 dust/waterproof front panel. In addition, designed with aluminum die-cast front frame, it is rugged and reliable for industrial environment. With support for Convertible Display System (CDS) technology, CV-112 allows you to configure, upgrade and maintain your Convertible Display System easily.

>>>> Panel PC Technology
SPECIFICATION
Model NameCV-112
Model No.CV-112RCV-112C
DisplayLCD Size12.1" (4:3)
Max. Resolution800 x 600
Brightness (cd/m2)450
Contrast Ratio800 : 1
LCD Color262K
Pixel Pitch (mm)0.3075 (H) x 0.3075 (V)
Viewing Angle (H-V)160 / 140
Backlight MTBF50000 hrs (LED Backlight)
TouchResistive 5-wireV-
Projected Capacitive-V
EnvironmentOperating TemperatureAmbient with Air flow: -20°C to 70°C
(with Industrial Grade Peripherals)
Storage Temperature-30°C to 80°C
Relative Humidity80% RH @ 40°C (non-condensing)
IP LevelIP 65 Compliant Front Panel
PhysicalDimension (WxHxD, mm)345 x 265.3 x 57 mm
Weight3.16 kg
Construction Front PanelDie-cast Flat Surface
CertificationSafety Certifications• CE
• FCC Class A
ORDERING INFORMATION
Available Models
Model No.Product Description
CV-112R12.1" TFT SVGA 4:3 Display Module with Resistive 5-wire Touch
CV-112C12.1" TFT SVGA 4:3 Display Module with Projected Capacitive Touch

Package Checklist
CV-112
√ CV-112 Display Module x 1
√ Panel Mounting Kit x 1

DOWNLOADS
Datasheet
SubjectRelease DateDownload
CV-112 Datasheet2016/12/22Download
Manual
SubjectRelease DateDownload
CV-100 Series Manual2024/02/22Download
