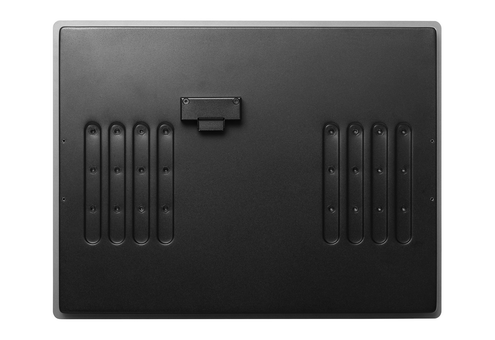

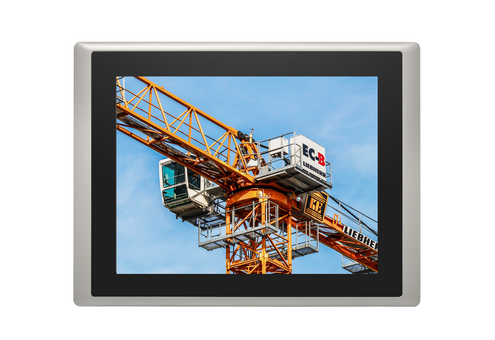

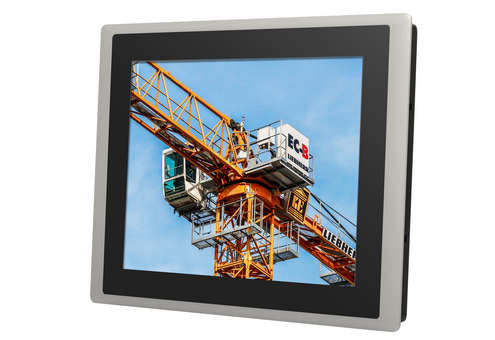

15" TFT-LCD Sunlight Readable Display Module
  • 15” TFT-LCD with Ultra High Brightness up to 1,600 nits and 1024 x 768 (XGA) Resolution
  • Wide Range Operating Temperature -20°C to 70°C
  • True Flat IP65 Front Panel Protection
  • Rugged Aluminum Die-casting Bezel
  • Convertible Display System (CDS) Technology Supported
  • Supports Optical Bonding
CS-115 Series is 15" TFT-LCD touch display module. It offers 1,600 nits ultra high brightness and 1024 x 768 (XGA)resolution, allowing viewers to see clear images even under any bright ambient light or direct sunlight environments. CS-115 Series is a rugged and reliable display solution featuring wide range operating temperature -20°C to 70°C, a solid aluminum die-casting front bezel and true flat IP65 front panel protection. Supporting Convertible Display System (CDS) technology, CS-115 Series allows you to configure, upgrade and maintain your display system according to your need.
Model NameCS-115
Model No.CS-115C
DisplayLCD Size15" (4:3)
Max. Resolution1024 x 768 (XGA)
Brightness (cd/m2)1600
Contrast Ratio800 : 1
LCD Color16.2M
Pixel Pitch (mm)0.297 (H) x 0.297 (V)
Viewing Angle (H-V)160 / 160
Backlight MTBF50,000 hrs (LED Backlight)
TouchResistive 5-wire-
Projected CapacitiveV
EnvironmentOperating Temperature-20°C to 70°C
(With extended temperature peripherals; Ambient with air flow
According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
Storage Temperature-20°C to 70°C
Relative Humidity90%RH @ 40°C (non-condensing)
IP LevelIP65 Compliant Front Panel
PhysicalDimension (WxHxD)408 x 312.4 x 59.2 mm
Weight4.36 kg
Front Panel Construction Flat Rugged Aluminum Die-casting Bezel
CertificationSafety Certifications• CE
• FCC Class A
Available Models
Model No.Product Description
CS-115C-R1015" TFT-LCD 1600 nits XGA 4:3 Display Module with Projected Capacitive Touch
CS-115C-OB-R1015" TFT-LCD 1600 nits XGA 4:3 Display Module with Projected Capacitive Touch and Optical Bonding
Package Checklist
√ CS-115 Display Module x 1
√ Panel Mounting Kit x 1
