P1201

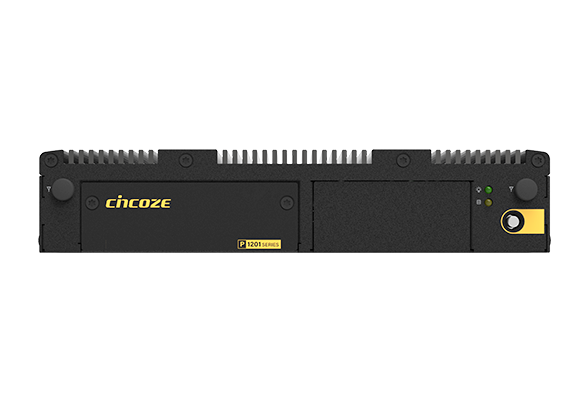

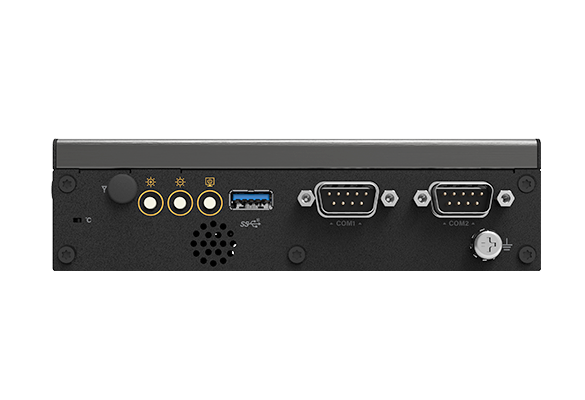

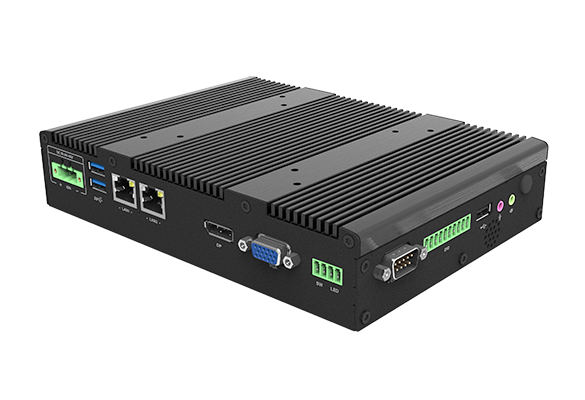

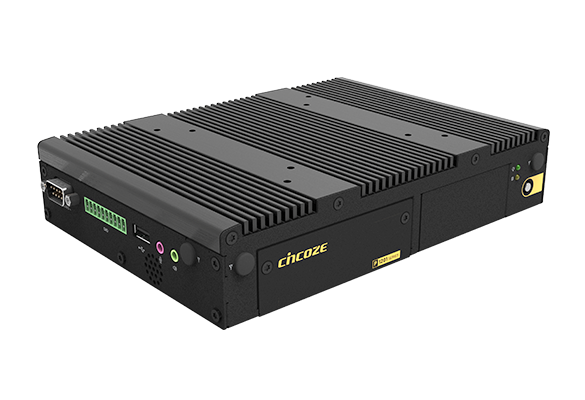

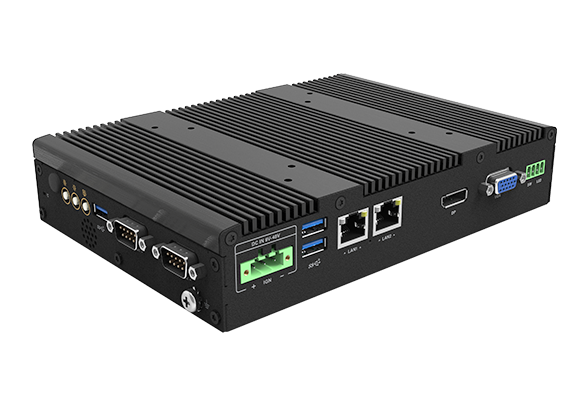

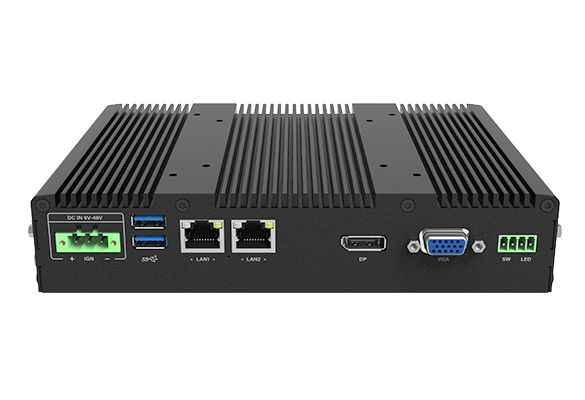

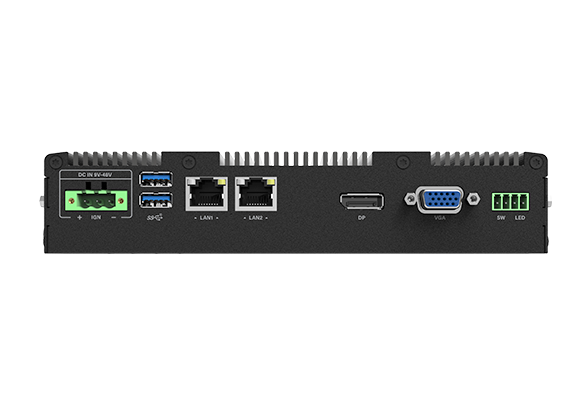

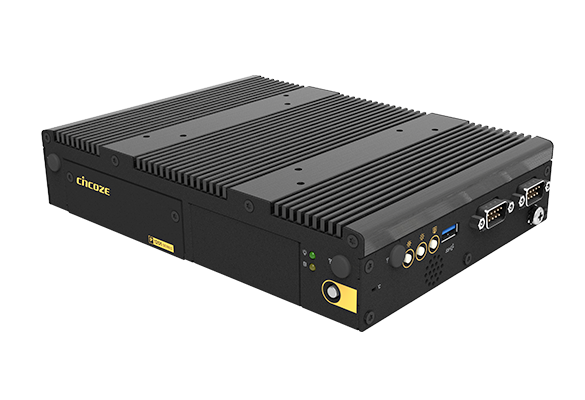

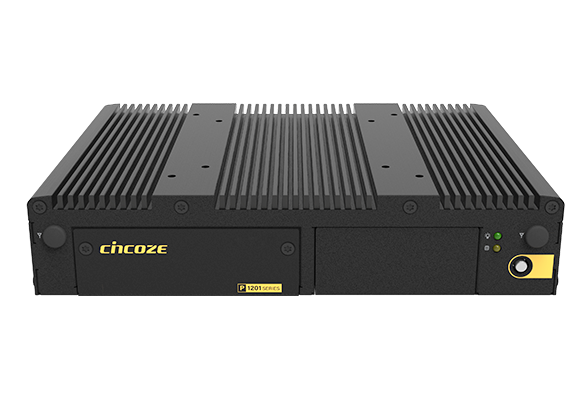

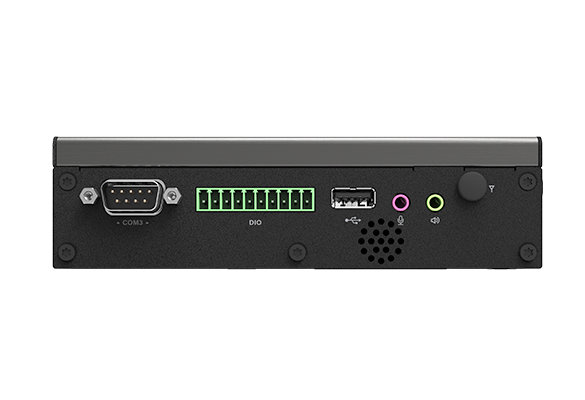

採用 Intel® Elkhart Lake Atom® x6000E 系列處理器之超薄嵌入式電腦,支援 Convertible Display System(CDS)模組化技術
產品特點
  • Intel® Elkhart Lake Atom® x6425E/x6211E 處理器
  • 1x DDR4 SO-DIMM
  • 1x M.2 Key E Type 2230 Socket for Wireless 模組
  • 電源點火感應功能和 PoE 功能的 CFM 技術
  • 德承專利 CDS 技術(專利號:M482908)
  • 工業環境的 EMC 輻射/抗擾度標準:EN61000-6-4、EN61000-6-2
  • 安全認證:UL、cUL、CB 62368-1
產品介紹
Cincoze P1201, A Slim and Power Efficient Computer For Embedded and Panel-PC Application

P1201 搭載 Intel® Elkhart Lake Atom® 處理器,是一款針對工業物聯網邊緣運算而設計的無風扇、超薄型嵌入式電腦。靈活的擴充性是特點之一,除原生豐富的 I/O 接口外,也具備 Mini PCIe、M.2 Key E Type 2230 擴充槽,還可利用獨家 CFM 擴充模組增添 PoE/IGN 等功能。機身厚度僅 41.5 mm,適合狹小空間的安裝。

一機雙用途 (嵌入式電腦 & 平板電腦),可說是 P1201 的最大賣點,僅須透過獨家的 CDS 專利技術,依據應用需求搭配不同特性的螢幕模組 (display module) 即可成為工業平板電腦 (Industrial Panel PC)、高亮度平板電腦 (Sunlight Readable Panel PC) 或是開放式架構平板電腦 (Open Frame Panel PC),滿足多元化的顯示運算需求。

Product Category >>>> Modular Panel PC & Industrial Monitor




效能大躍進

——

P1201 可搭載最高 Intel® Elkhart Lake 平台 Atom® x6425E 四核處理器,Elkhart Lake 與上一代 Apollo Lake 相比,CPU Single - Thread 效能提升高達 1.7 倍,Multi-thread 效能提升高達 1.5 倍。圖形效能也提升了 2 倍。且支援最高 3200 MHz 的 DDR4 32GB 記憶體。

效能大躍進

超薄機身易安裝

超薄機身易安裝

——

P1201 具有超薄緊湊的設計,尺寸為 204.5 x 149 x 41.5 (mm)。超薄機身可靈活安裝在各式狹小的應用環境,如設備機台、控制機箱或 AGV 等,作為智慧工廠蒐集數據及移動型邊緣運算等應用。




一機雙用 (One Computer / Two Purposes)

——

P1201 不但是一台嵌入式電腦,還能透過德承專利 CDS (Convertible Display System) 技術,搭配顯示螢幕模組 (CV-100 系列)、陽光下可視模組 (CS-100 系列)、開放式架構顯示螢幕模組 (CO-100 系列) 組成不同特性的平板電腦。

Patent No. M482908
一機雙用 (One Computer / Two Purposes)

全方位支援無線傳輸

全方位支援無線傳輸

——

P1201 除了可透過 M.2 key E 插槽支援 WIFI 6,提供更快速的傳輸外,亦可搭配藍芽模組。而 Mini PCIe 插槽則可支援 GPS、4G 模組,可說完整覆蓋了全方位的無線傳輸需求。


耐震與工業級 EMC 保護

——

P1201 多安裝在設備、機櫃與移動裝置中,耐震能力與電磁相容性 (EMC) 成為穩定持續運作的主要考驗。P1201 除通過不同振動與衝擊的可靠度測試,如隨機振動 (5G)、正弦振動 (1G) 與耐衝擊 (50G) 外,並符合嚴苛的工業環境的 EMC 檢測標準 (EN61000-6-4 及 EN61000-6-2),與產品安全性的 UL 認證,呈現高規格的工業等級防護。

耐震與工業級 EMC 保護

影片
詳細規格

P1201

Model NameP1201
SystemProcessor• Intel® Atom® x6425E Processor (1.5M Cache, up to 3.00 GHz, 12W)
• Intel® Atom® x6211E Processor (1.5M Cache, up to 3.00 GHz, 6W)
Memory• 1x DDR4 SO-DIMM Socket
• Supports DDR4 3200MHz Memory Up to 32GB (un-buffered and non-ECC)
BIOSAMI BIOS
GraphicsGraphics EngineIntegrated Intel® UHD Graphics
Maximum Display OutputSupports Triple Independent Display
CDS1x CDS Connector (1920 x 1080 @60Hz)
DP1x DisplayPort Connector (4096 x 2304 @ 60Hz,According to CPU Specifications)
* Verified maximum resolution: 3840 x 2160 @60Hz
VGA1x VGA Connector (1920 x 1200 @60Hz)
AudioAudio CodecRealtek® ALC888, High Definition Audio
Line-out1x Line-out, Phone Jack 3.5mm
Mic-in1x Mic-in, Phone Jack 3.5mm
I/OLAN2x 1GbE LAN, RJ45
- GbE1: Intel® I210
- GbE2: Intel® I210
COM3x RS-232/422/485 with Auto Flow Control, DB9
USB• 3x 10Gbps USB 3.2 Gen2, Type A
• 1x 480Mbps USB 2.0, Type A
DIO8x Isolated DIO (4x DI/4x DO), 10-Pin Terminal Block
StorageSSD/HDD1x 2.5” Front Accessible SATA HDD/SSD Drive Bay (SATA3.0)
mSATA1x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket)
ExpansionMini PCI Express1x Full-size Mini-PCIe Socket
SIM Socket1 x SIM Socket
M.21x M.2 Key E Type 2230 Socket, Support Wireless Module
CFM (Control Function Module) Interface• 1x CFM IGN Interface for optional CFM-IGN Module Expansion
• 1x CFM PoE Interface for optional CFM-PoE Module Expansion
CDS (Convertible Display System) Interface1x CDS Interface for Convertible Display Module
Other FunctionClear CMOS Switch1x Clear CMOS Switch
Reset Button1x Reset Button
Instant RebootSupport 0.2sec Instant Reboot Technology
Watchdog TimerSoftware Programmable Supports 256 Levels System Reset
OSD ButtonLCD On/Off, Brightness Up, Brightness Down
Internal SpeakerAMP 2W + 2W
Status LED IndicatorPower LED, HDD LED, Temperature LED
PowerPower Button1x ATX Power On/Off Button
Power Mode Switch1x AT/ATX Mode Switch
Power Input9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off1x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED1x Remote Power LED, 2-pin Terminal Block
Operating StystemMicrosoft® Windows®Windows®10
LinuxSupports by project
PhysicalDimension ( W x D x H )204.5 x 149 x 41.5 mm
Weight Information1.54 kg
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall / VESA / CDS / DIN Rail
Physical Design• Fanless Design
• Jumper-less Design
Reliability & ProtectionReverse Power Input ProtectionYes
Over Voltage Protection• Protection Range: 51~58V
•​ Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection15A
CMOS Battery BackupSuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF283,091 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3
EnvironmentOperating Temperature-40°C to 70°C
* PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling)
* With extended temperature peripherals; Ambient with air flow
* According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature-40°C to 85°C
Relative Humidity95%RH @ 70°C (non-Condensing)
ShockOperating, 50 Grms (w/ SSD, according to IEC60068-2-27)
Vibration• Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64)
• Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6)
EMC• CE, UKCA, FCC, ICES-003 Class A
• EN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only)
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 55032 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 10V
• EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
SafetyUL, cUL, CB, IEC/EN 62368-1
訂購資訊
Available Models
Model No.Product Description
P1201-X6425E-R10Intel® Atom® x6425E Quad Core Slim Embedded Computer with CDS Technology
P1201-X6211E-R10Intel® Atom® x6211E Dual Core Slim Embedded Computer with CDS Technology

Package Checklist
√ P1201 Slim Embedded Computer x1√ Power Terminal Block Connector x1
√ Thermal Pad (for CPU Thermal Block) x 1√ Remote Function Terminal Block Connector x1
√ Wall Mounting Kit x1√ DIN Rail Mounting Kit x1
√ Screw Pack x1√ DIO Terminal Block Connector x 1

Optional Modules and Accessories
Model No.Description
CFM-PoE02CFM Module with PoE Control Function, Individual Port 25.5W
CFM-IGN101CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm)
GST60A12-CIN1Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C)
GST120A24-CINAdapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
