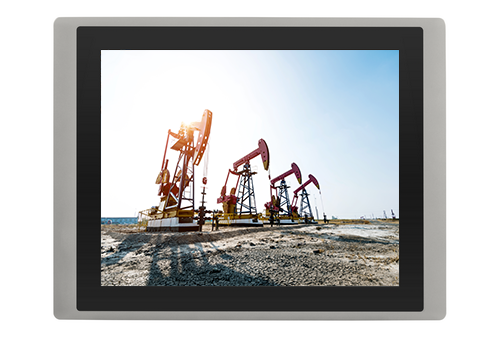

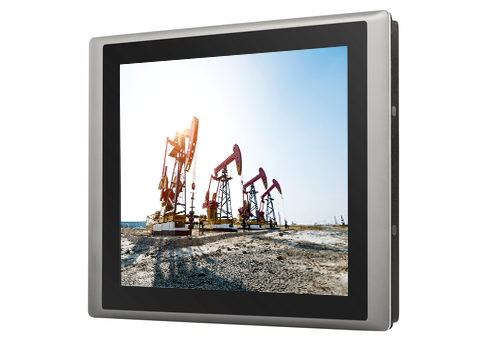

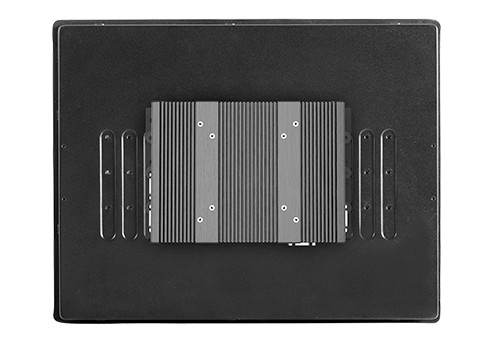

CS-117 / P1201 Series

17" TFT-LCD 節能陽光下可視工業平板電腦，採用 Intel® Elkhart Lake Atom® x6000E 系列處理器

產品特點

17" TFT-LCD SXGA with Ultra High Brightness up to 1,500 nits
Intel® Elkhart Lake Atom® x6425E/x6211E 處理器
1x DDR4 SO-DIMM
採用堅固的鋁壓鑄前擋板設計
支援面板 / VESA / 機架安裝
前面板符合 IP65 標準
寬工作溫度
德承專利 CDS 技術

產品介紹
詳細規格
訂購資訊
相關下載

產品介紹

Cincoze Power Efficient Sunlight Readable Panel PC - CS-100/P1000 Series

CS-100/P1201 系列是一款陽光下可視工業平板電腦，提供最高 1,800 nits 超高亮度，搭載 Intel® Elkhart Lake Atom® 處理器，除了效能較前一代平台大幅提升外，在螢幕尺寸、比例、亮度上則是提供非常完整的選擇。豐富 I/O、彈性擴充 (Mini PCIe、M.2 Key E Type 2230、CFM PoE/IGN) 、強固、易於現場維護等特性都適切的使 CS-100/P1201 成為戶外 Kiosk 或是 HMI 應用的最佳選擇。

Product Category >>>> Modular Panel PC & Industrial Monitor

效能大躍進

——

CS-100/P1201 系列可搭載最高 Intel® Elkhart Lake 平台 Atom® x6425E 四核處理器，Elkhart Lake 與上一代 Apollo Lake 相比，CPU Single - Thread 效能提升高達 1.7 倍，Multi-thread 效能提升高達 1.5 倍。圖形效能也提升了 2 倍。且支援最高 3200 MHz 的 DDR4 32GB 記憶體。

CDS 專利技術

——

透過 CDS (Convertible Display System) 專利技術，不僅在現場端具有易於維護優勢外，也可保留未來升級需求，無論是更換螢幕或是系統效能提升，只需換置單一組件即可達成，大幅節省升級成本。

Patent No. M482908

尺寸齊全完整

——

CS-100/P1201 提供多種螢幕尺寸，包含 8.4 至 24 吋，支援最高 Full HD 解析度，擁有最高 1,800 nits 高亮度背光顯示，並具備多點投射式電容觸控功能，可針對應用需求進行選擇。

寬溫、安全、更可靠

——

為克服嚴苛的戶外環境與不可控的氣候因素，CS-100/P1201 系列必須具備一系列的工業級防護，除了提供優於業界的寬工作溫度範圍（-20°C 至 70°C）外、IP65 前面板防塵/防水等。CS-100/P1201 還各自通過美國資訊通信技術和視聽設備的產品安全標準 (UL 認證)，確保產品的高度安全性。

影片

需要協助嗎？

聯絡我們

info@cincoze.com

詳細規格

CS-117

Model Name		CS-117
Display	LCD Size	17" (5:4)
	Max. Resolution	1280 x 1024 (SXGA)
	Brightness (cd/m2)	1500
	Contract Ratio	800 : 1
	LCD Color	16.7M
	Pixel Pitch (mm)	0.264 (H) x 0.264 (V)
	Viewing Angle (H-V)	160 / 140
	Backlight MTBF	50,000 hrs (LED Backlight)
Touch Screen	Touchscreen Type	Projected Capacitive
Physical	Dimension (W x D x H)	450 x 350 x 63.2mm
	Weight Information	5.64 kg
	Mechanical Construction	Flat Rugged Aluminum Die-casting Bezel
Environment	Front Panel Protection	IP 65 Compliant
	Operating Temperature	-20°C to 80°C (With Industrial Grade Peripherals; Ambient with air flow)
	Storage Temperature	-30°C to 80°C
	Relative Humidity	90% RH @ 40°C (Non-condensing)
	EMC	CE, UKCA, FCC, ICES-003 Class A
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz
	Safety	UL, cUL, CB, IEC, EN 62368-1

P1201

Model Name		P1201
System	Processor	• Intel® Atom® x6425E Processor (1.5M Cache, up to 3.00 GHz, 12W) • Intel® Atom® x6211E Processor (1.5M Cache, up to 3.00 GHz, 6W)
	Memory	• 1x DDR4 SO-DIMM Socket • Supports DDR4 3200MHz Memory Up to 32GB (un-buffered and non-ECC)
	BIOS	AMI BIOS
Graphics	Graphics Engine	Integrated Intel® UHD Graphics
	Maximum Display Output	Supports Triple Independent Display
	CDS	1x CDS Connector (1920 x 1080 @60Hz)
	DP	1x DisplayPort Connector (4096 x 2304 @ 60Hz,According to CPU Specifications) * Verified maximum resolution: 3840 x 2160 @60Hz
	VGA	1x VGA Connector (1920 x 1200 @60Hz)
Audio	Audio Codec	Realtek® ALC888, High Definition Audio
	Line-out	1x Line-out, Phone Jack 3.5mm
	Mic-in	1x Mic-in, Phone Jack 3.5mm
I/O	LAN	2x 1GbE LAN, RJ45 - GbE1: Intel® I210 - GbE2: Intel® I210
	COM	3x RS-232/422/485 with Auto Flow Control, DB9
	USB	• 3x 10Gbps USB 3.2 Gen2, Type A • 1x 480Mbps USB 2.0, Type A
	DIO	8x Isolated DIO (4x DI/4x DO), 10-Pin Terminal Block
Storage	SSD/HDD	1x 2.5” Front Accessible SATA HDD/SSD Drive Bay (SATA3.0)
Storage	mSATA	1x mSATA Socket (SATA 3.0, shared by Mini-PCIe socket)
Expansion	Mini PCI Express	1x Full-size Mini-PCIe Socket
	SIM Socket	1 x SIM Socket
	M.2	1x M.2 Key E Type 2230 Socket, Support Wireless Module
	CFM (Control Function Module) Interface	• 1x CFM IGN Interface for optional CFM-IGN Module Expansion • 1x CFM PoE Interface for optional CFM-PoE Module Expansion
	CDS (Convertible Display System) Interface	1x CDS Interface for Convertible Display Module
Other Function	Clear CMOS Switch	1x Clear CMOS Switch
	Reset Button	1x Reset Button
	Instant Reboot	Support 0.2sec Instant Reboot Technology
	Watchdog Timer	Software Programmable Supports 256 Levels System Reset
	OSD Button	LCD On/Off, Brightness Up, Brightness Down
	Internal Speaker	AMP 2W + 2W
	Status LED Indicator	Power LED, HDD LED, Temperature LED
Power	Power Button	1x ATX Power On/Off Button
	Power Mode Switch	1x AT/ATX Mode Switch
	Power Input	9 - 48VDC, 3-pin Terminal Block
	Remote Power On/Off	1x Remote Power On/Off, 2-pin Terminal Block
	Remote Power LED	1x Remote Power LED, 2-pin Terminal Block
Operating Stystem	Microsoft® Windows®	Windows®10
Operating Stystem	Linux	Supports by project
Physical	Dimension ( W x D x H )	204.5 x 149 x 41.5 mm
	Weight Information	1.54 kg
	Mechanical Construction	Extruded Aluminum with Heavy Duty Metal
	Mounting	Wall / VESA / CDS / DIN Rail
	Physical Design	• Fanless Design • Jumper-less Design
Reliability & Protection	Reverse Power Input Protection	Yes
	Over Voltage Protection	• Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover
	Over Current Protection	15A
	CMOS Battery Backup	SuperCap Integrated for CMOS Battery Maintenance-free Operation
	MTBF	283,091 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3
Environment	Operating Temperature	-40°C to 70°C * PassMark BurnInTest: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
	Storage Temperature	-40°C to 85°C
	Relative Humidity	95%RH @ 70°C (non-Condensing)
	Shock	Operating, 50 Grms (w/ SSD, according to IEC60068-2-27)
	Vibration	• Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6)
	EMC	• CE, UKCA, FCC, ICES-003 Class A • EN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only)
	EMI	• CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
	EMS	• EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
	Safety	UL, cUL, CB, IEC/EN 62368-1

訂購資訊

Available Models
Model No.	Product Description
CS-117C-R11/P1201-X6425E-R10	17“ TFT-LCD 1500nits Sunlight Readable Touch Panel PC with Intel Atom x6425E Quad Core Processor
CS-117C-R11/P1201-X6211E-R10	17“ TFT-LCD 1500nits Sunlight Readable Touch Panel PC with Intel Atom x6211E Dual Core Processor

Model Configuration
	CS-117C	P1201-X6425E	P1201-X6211E
CS-117C/P1201-X6425E	V	V	--
CS-117C/P1201-X6211E	V	--	V

Package Checklist
√ CS-117/P1201 Series Panel PC x 1	√ Power Terminal Block Connector (Female) x 1
√ Thermal Pad (for CPU Thermal Block) x 1	√ Screw Pack x 1
√ DIO Terminal Block Connector (Female) x 1	√ Remote Power On/Off Terminal Block Connector x 1
√ Panel Mounting Kit x 10

Optional Modules and Accessories
Model No.	Description
CFM-PoE02	CFM Module with PoE Control Function, Individual Port 25.5W
CFM-IGN101	CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm)
URM01	Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
GST60A12-CIN1	Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C)
GST120A24-CIN	Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI
