產品介紹

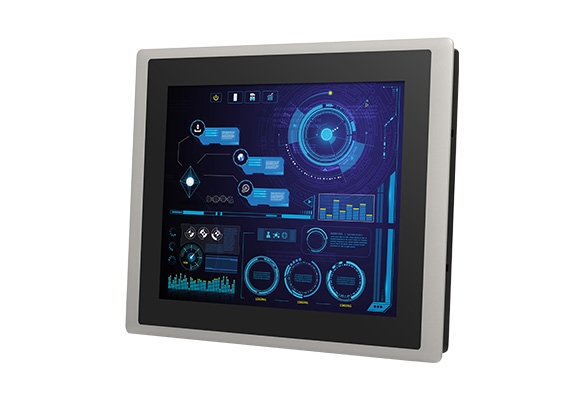

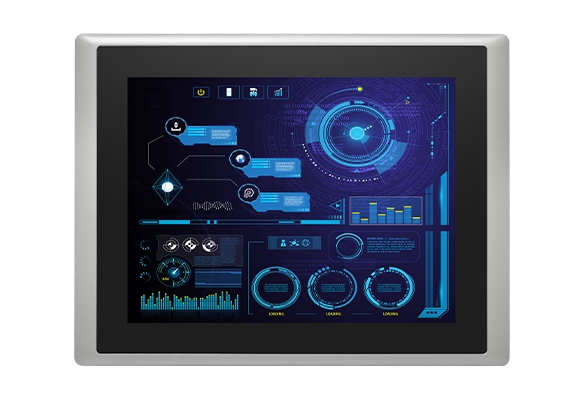

CV-100/M1101 系列是一款模組化且適用於嚴苛現場端的工業觸控顯示器，可滿足設備機台 HMI 或生產流程可視化的顯示需求。齊全完整的螢幕尺寸選擇與觸控方式是特色之一，透過德承獨家的 CDS 專利技術，除在現場端具有易於維護優勢外，也可保留未來升級需求。CV-100/M1101 系列可支援數位和類比信號輸入接口，包括 HDMI、DisplayPort 和 VGA。還具備多語言 OSD 螢幕選單功能與多元安裝方式 (Panel、VESA、Rack Mount)，能夠適應各式種應用場景的部署。
Product Category >>>> Modular Panel PC & Industrial Monitor
尺寸 齊全完整
——
CV-100/M1101 系列擁有多樣化的產品組合，無論是螢幕尺寸 (8.4 - 24 吋)、顯示比例 (4:3 / 5:4 / 16:9)、觸控方式 (多點電容式及單點電阻式)、亮度 (300 - 500 nits) 等，可針對應用需求進行最佳選擇。
CDS 專利技術
——
透過 CDS (Convertible Display System) 專利技術，不僅在現場端具有易於維護優勢外，也可保留未來升級需求，只需換置單一組件即可達成，大幅節省升級成本。
Patent No. M482908多元 顯示輸入
——
CV-100/M1101 系列具備了三種不同的顯示輸入選擇，包含數位信號的 HDMI 與 Display Port 以及類比信號輸入的 VGA。
強固、安全、更可靠
——
面對嚴苛險峻的使用環境，CV-100/M1101 系列備有一系列的工業級防護，包括寬溫（-20°C 至 70°C）、IP65 前面板防塵/防水等。CV-100/M1101 系列還各自通過美國產品安全標準 UL 認證，高度確保產品的安全性。
詳細規格
CV-110H Series
| Model Name | CV-110HR | CV-110HC | |
|---|---|---|---|
| Display | LCD Size | 10.4" (4:3) | |
| Max. Resolution | 1024 x 768 | ||
| Brightness (cd/m2) | 400 | ||
| Contract Ratio | 1400 : 1 | ||
| LCD Color | 16.2M | ||
| Pixel Pitch (mm) | 0.2055 (H) x 0.2055 (V) | ||
| Viewing Angle (H-V) | 178 / 178 | ||
| Backlight MTBF | 50,000 hrs (LED Backlight) | ||
| Touch Screen | Touchscreen Type | Resistive 5-wire | Projected Capacitive |
| Physical | Dimension (W x D x H) | 295 x 227.3 x 56.2 mm | |
| Weight Information | 2.24 kg | ||
| Mechanical Construction | Die-Casting Flat Surface | ||
| Environment | Front Panel Protection | IP 65 Compliant | |
| Operating Temperature | Ambient with Air flow: -20°C to 75°C (with Industrial Grade Peripherals) | Ambient with Air flow: -20°C to 80°C (with Industrial Grade Peripherals) | |
| Storage Temperature | -30°C to 80°C | ||
| Relative Humidity | 90% RH @ 40°C (Non-Condensing) | ||
| EMC | CE, UKCA, FCC, ICES-003 Class A | ||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | ||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | ||
| Safety | UL, cUL, CB, IEC, EN 62368-1 | ||

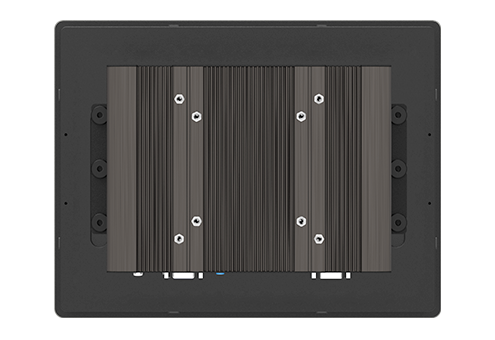

M1101
| Model Name | M1101 | |
|---|---|---|
| Graphics | HDMI-in | 1x HDMI Connector (1920 x 1080 @60Hz) |
| DP-in | 1x DisplayPort Connector (1920 x 1080 @60Hz) | |
| VGA-in | 1x VGA Connector (1920 x 1080 @60Hz) | |
| Audio | Audio input | 1x Audio Line in, Phone Jack 3.5mm |
| I/O | COM | 1x RS-232, DB9 |
| USB | 1x 480Mbps USB 2.0, Type A | |
| Other Function | OSD Button | Menu, Auto, LCD On/Off, Brightness Up, Brightness Down |
| Internal Speaker | AMP 2W + 2W | |
| Status LED Indicator | Power LED, Standby LED | |
| Power | Power Input | 9 - 48VDC, 3-pin Terminal Block |
| Physical | Dimension ( W x D x H ) | 204.5 x 149 x 38.5 mm |
| Weight Information | 1.2 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | VESA / CDS Mounting | |
| Physical Design | • Fanless Design • Jumper-less Design | |
| Reliability & Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | 15A | |
| MTBF | 1,217,359 hrs - Database: Telcordia SR-332 Issue 3, Method 1, Case 3 | |
| Environment | Operating Temperature | -20°C to 70°C * Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -20°C to 75°C | |
| Relative Humidity | 95%RH @ 70°C (non-Condensing) | |
| Shock | Operating, 15 Grms (according to IEC60068-2-27) | |
| Vibration | • Operating, 1.5 Grms, 5-500 Hz, 3 Axes (according to IEC60068-2-64) • Operating, 1 Grms, 10-500 Hz, 3 Axes (according to IEC60068-2-6) | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only) | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz | |
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |
訂購資訊
| Model No. | Product Description |
|---|---|
| CV-110HR-R10/M1101-R10 | 10.4" TFT-LCD XGA 4:3 Touch Monitor with Resistive 5-wire Touch, 1x DisplayPort, 1x HDMI, 1x VGA |
| CV-110HC-R11/M1101-R10 | 10.4”TFT-LCD XGA 4:3 Touch Monitor with Projected Capacitive Touch, 1x DisplayPort, 1x HDMI, 1x VGA |
| CV-110HR | CV-110HC | M1101 | |
|---|---|---|---|
| CV-110HR/M1101 | V | -- | V |
| CV-110HC/M1101 | -- | V | V |
| √ CV-110H/M1101 Series Touch Monitor x 1 | √ Panel Mounting Kit x 1 |
| √ USB Cable x 1 | √ Power Terminal Block Connector x 1 |
| √ VGA Cable x 1 | √ Screw Pack x 1 |
| Model No. | Description |
|---|---|
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C) |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
