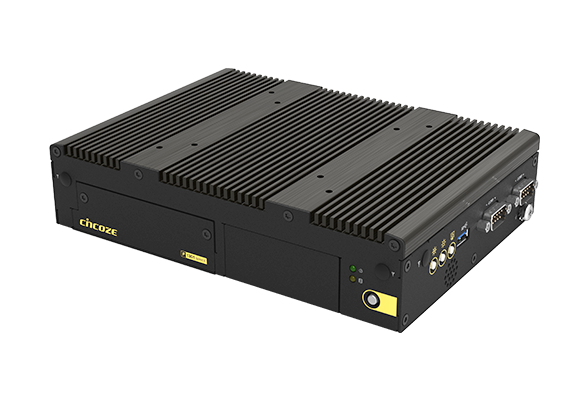

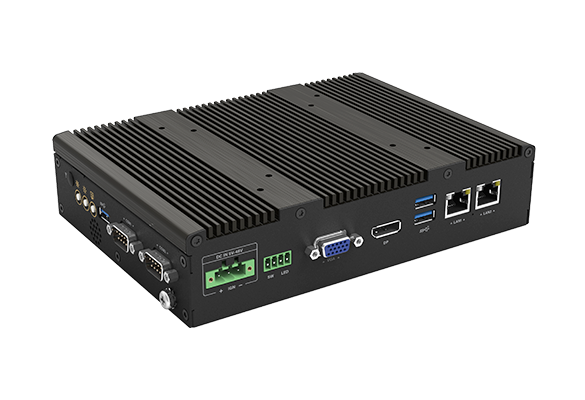

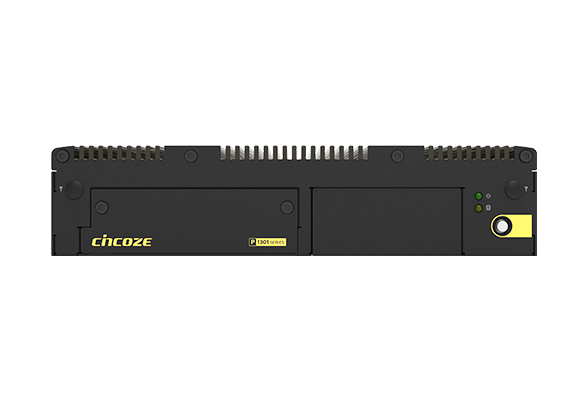

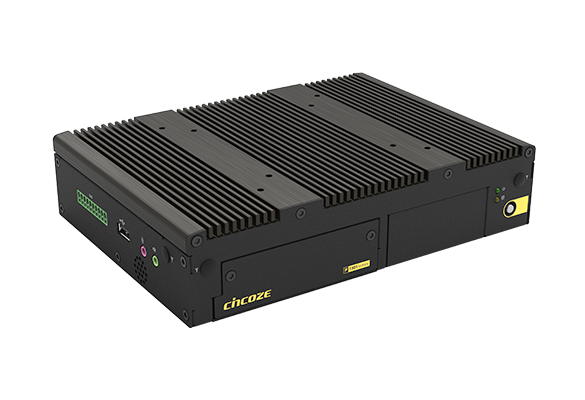

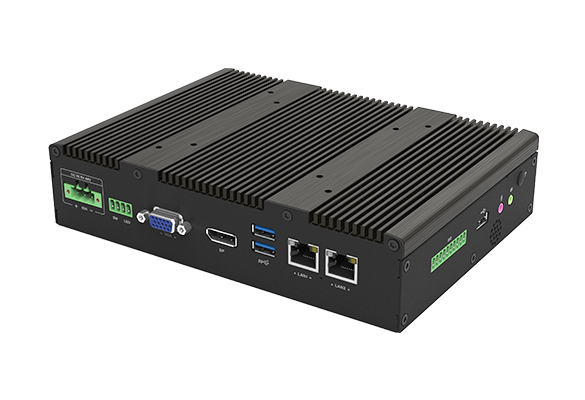

P1301
Intel® Alder Lake-N 平台，搭載 CDS 技術的薄型嵌入式電腦
產品特點
- 搭載 Intel® Alder Lake-N 處理器 N97 和 Atom® x7425E 處理器
- 1 個 DDR5 SO-DIMM 插槽，支援最高 4800MHz 和 16GB 記憶體
- 1 個 M.2 Key E Type 2230 插槽，可擴充無線網路 / Intel CNVi 模組
- 1 個 M.2 Key B Type 3042 / 3052 插槽，可擴充 5G / 儲存 / 附加卡
- 支援 Cincoze 專利 CDS 技術（專利號碼 M482908）
- CFM 技術，支援電源點火感應和 PoE 功能
- 寬工作溫度範圍 -40°C 到 70°C
- 工業環境電磁相容性（EMC）放射 / 抗擾度標準：EN61000-6-4, EN61000-6-2
產品介紹
P1301 搭載 Intel® Alder Lake-N 處理器，是一款針對工業物聯網邊緣運算而設計的無風扇、薄型嵌入式電腦。靈活的擴充性是特點之一，除原生豐富的 I/O 接口外，也具備 M.2 Key E Type 2230 以及 M.2 Key B Type 3052 擴充槽，可滿足無線通訊及移動應用。獨家 CFM 擴充模組則可增添 PoE/IGN 等功能。機身厚度僅 46.5 mm，適合狹小空間的安裝。
一機雙用途 (嵌入式電腦 & 平板電腦)，可說是 P1301 的最大賣點，僅須透過獨家的 CDS 專利技術，依據應用需求搭配不同特性的螢幕模組 (Display Module) 即可成為工業平板電腦 (Industrial Panel PC)、高亮度平板電腦 (Sunlight Readable Panel PC) 或是開放式架構平板電腦 (Open Frame Panel PC)，滿足多元化的顯示運算需求。
Product Category >>>> Modular Panel PC & Industrial Monitor
AI 與多工運行的強悍效能
——
搭載 Intel® 7 製程的 Alder Lake-N 四核心處理器，與前一代 Elkhart Lake 平台相比，CPU Single - Thread 效能提升高達 130%，Multi-thread 效能提升 109%。而處理器內建的 UHD Graphics 顯示晶片，其 AI 推論的物件辨識效能更是提升了 6.85 倍。
薄型機身 克服受限環境
——
單機使用時，P1301 超薄緊湊的設計 (204.5 x 149 x 46.5 mm) ，可靈活安裝在各式狹小的應用環境，如設備機台、控制機箱或 AMR 等，適合智慧工廠中生產數據蒐集處理或是移動式設備等應用。
一機雙用 (One Computer / Two Purposes)
——
P1301 不但是一台嵌入式電腦，還能透過德承專利 CDS (Convertible Display System) 技術，搭配顯示螢幕模組 (CV-100 系列)、陽光下可視模組 (CS-100 系列)、開放式架構顯示螢幕模組 (CO-100 系列) 組成不同特性的平板電腦。
Patent No. M482908
5G、WIFI、GNSS
——
內建的 M.2 Key E、Key B 以及 SIM 卡插槽等可全面覆蓋 WIFI、Bluetooth、GNSS、GSM 等無線通訊應用需求。
高規格的工業級保護
——
P1301 多安裝在設備、機櫃與移動裝置中，耐震能力與電磁相容性 (EMC) 成為穩定持續運作的主要考驗。P1301 除通過不同振動與衝擊的可靠度測試，如隨機振動 (5G)、正弦振動 (1G) 與耐衝擊 (50G) 外，更符合工業環境的EMC測試標準 (EN61000-6-4 及 EN61000-6-2)。
影片
詳細規格
P1301
| Model Name | P1301 | |
|---|---|---|
| System | Processor | • Onboard Intel® Alder Lake-N Series Processor: - Intel® Processor N97 4 Cores Up to 3.60 GHz, TDP 12W - Intel Atom® x7425E 4 Cores Up to 3.40 GHz, TDP 12W |
| Memory | • 1x DDR5 4800MHz SO-DIMM Socket Supports Un-buffered and Non-ECC Type, Up to 16GB | |
| BIOS | • AMI BIOS | |
| Graphics | Graphics Engine | • Integrated Intel® UHD Graphics |
| Maximum Display Output | • Supports Triple Independent Display | |
| CDS | • 1x CDS Connector (1920 x 1080 @60Hz) | |
| DP | • 1x DisplayPort Connector (4096 x 2304 @60Hz) * Verified maximum resolution: 3840 x 2160 @ 60Hz | |
| VGA | • 1x VGA Connector (1920 x 1200 @60Hz) | |
| Audio | Audio Codec | • Realtek® ALC888, High Definition Audio |
| Line-out | • 1x Line-out, Phone Jack 3.5mm | |
| Mic-in | • 1x Mic-in, Phone Jack 3.5mm | |

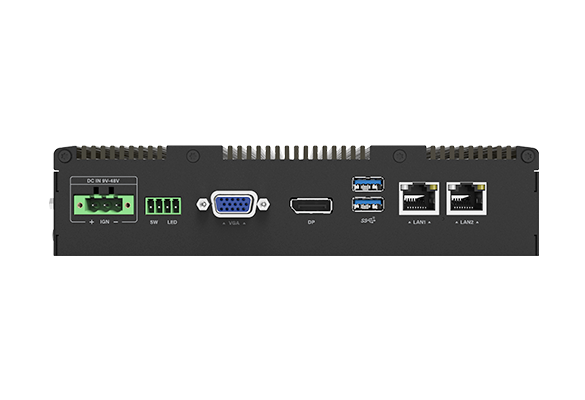

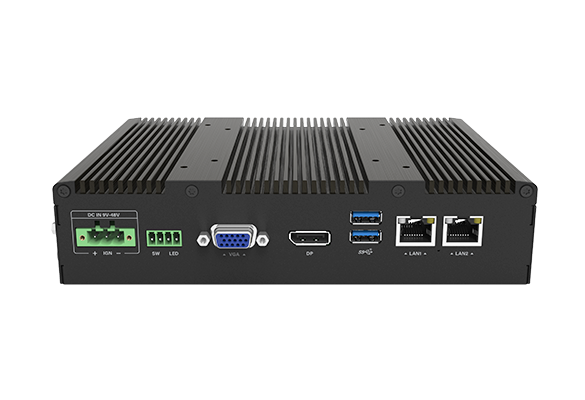

| I/O | LAN | • 2x 2.5GbE LAN, RJ45 - GbE1 / GbE2: Intel® I225 |

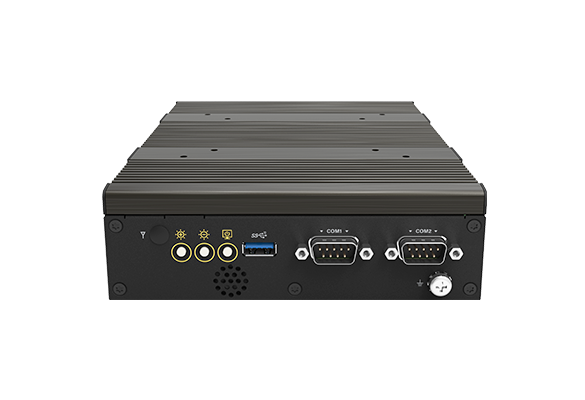

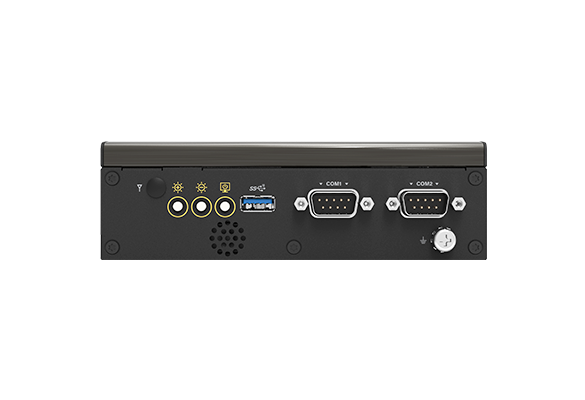

| COM | • 2x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9 | |
| USB | • 3 x USB 3.2 Gen2x1 (10Gbps), Type A • 1 x USB 2.0 (480Mbps), Type A | |

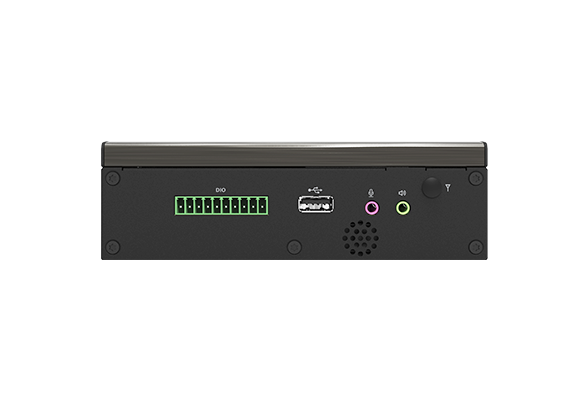

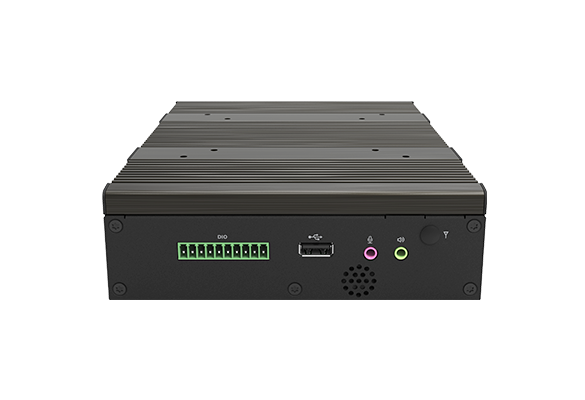

| DIO | • 8x Isolated Digital I/O (4in/4out), 10-Pin Terminal Block | |
| Storage | SSD/HDD | • 1x 2.5" Front Accessible SATA HDD/SSD Bay |
| M.2 SSD | • 1 x M.2 SSD Shared by M.2 Key B Socket | |
| Expansion | M.2 Key E Socket | • 1 x M.2 Key E Type 2230 Socket for Wireless / Intel CNVi Module Expansion |
| M.2 Key B Socket | • 1 x M.2 Key B Type 3042 / 3052 Socket for 5G / Storage / Add-on Card Expansion | |
| SIM Socket | • 1x Front Accessible SIM Socket | |
| CFM (Control Function Module) Interface | • 1x CFM Interface for optional IGN Module Expansion • 1x CFM Interface for optional PoE Module Expansion | |
| Other Function | Clear CMOS Switch | • 1 x Clear CMOS Switch |
| Reset Button | • 1x Reset Button | |
| Instant Reboot | • Support 0.2sec Instant Reboot Technology | |
| Watchdog Timer | • Software Programmable Supports 256 Levels System Reset | |
| OSD Function | • LCD On/Off, Brightness Up, Brightness Down | |
| Internal Speaker | • AMP 2W + 2W | |
| Status LED Indicator | • Power LED, HDD LED | |
| Power | Power Button | • 1x ATX Power On/Off Button |
| Power Mode Switch | • 1x AT/ATX Mode Switch | |
| Power Input | • 9 - 48VDC, 3-pin Terminal Block | |
| Remote Power On/Off | • 1x Remote Power On/Off, 2-pin Terminal Block | |
| Remote Power LED | • 1x Remote Power LED, 2-pin Terminal Block | |
| Operating Stystem | Microsoft® Windows® | • Windows®11, Windows®10 |
| Linux | • Ubuntu 22.04 | |
| Physical | Dimension ( W x D x H ) | • 204.5 x 149 x 46.5mm |
| Weight | • 1.57 kg | |
| Mechanical Construction | • Extruded Aluminum with Heavy Duty Metal | |
| Mounting | • Wall / VESA / CDS / DIN Rail | |
| Physical Design | • Fanless Design • Jumper-less Design | |
| Reliability & Protection | Reverse Power Input | • Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the present level to recover | |
| Over Current Protection | • 15A | |
| CMOS Battery Backup | • SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| MTBF | • 306,338 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | |
| Environment | Operating Temperature | • -40°C to 70°C * PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | • -40°C to 70°C | |
| Relative Humidity | • 95% RH @ 70˚C (Non-condensing) | |
| Shock | • Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | |
| Vibration | • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN61000-6-4, EN61000-6-2 @ DC-input 24V | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded ethernet cable.) • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz | |
訂購資訊
| Model No. | Product Description |
|---|---|
| P1301-N97-R10 | Intel® Processor N97 Quad Core Slim Embedded Computer with CDS Technology |
| P1301-X7425E-R10 | Intel® Atom® x7425E Quad Core Slim Embedded Computer with CDS Technology |
| • P1301 Slim Embedded Computer x 1 | • Power Terminal Block Connector x 1 |
| • Thermal Pad (for CPU Thermal Block) x 1 | • Remote Function Terminal Block Connector x 1 |
| • Screw Pack x 4 | • DIO Terminal Block Connector x 1 |
| • Wall Mounting Kit x 1 | • M.2 Key B Type 3052 to 3042 Adapter Bracket x 1 |
| Model No. | Description |
|---|---|
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm) |
| CFM-PoE02 | CFM Module with PoE Control Function, Individual Port 25.5W |
| DIN01 | DIN-RAIL Mount Kit, KMRH-K175 |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C) |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI |
