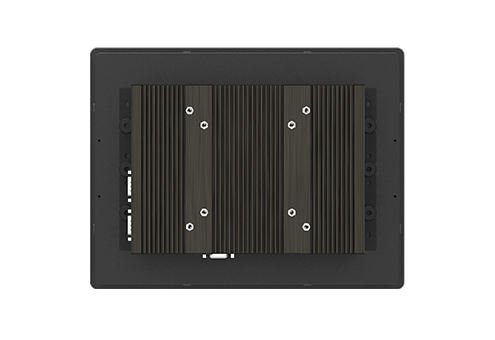

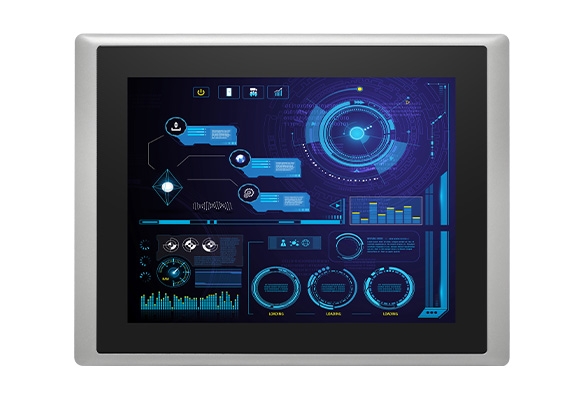

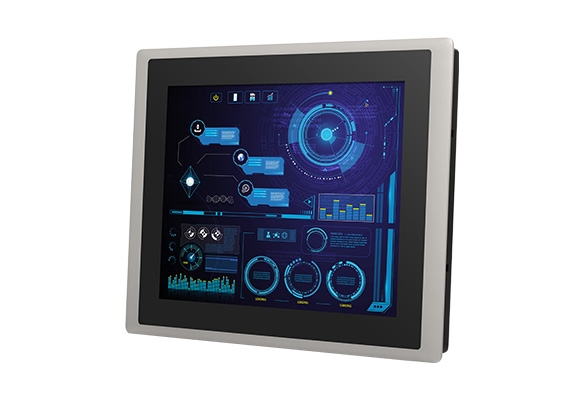

CV-110H / P1301 Series
10.4" TFT-LCD 節能工業平板電腦，搭載 Intel® Alder Lake-N 系列處理器
產品特點
- 10.4" TFT-LCD，配備電阻式 5 線觸控 / 投射式電容觸控
- 搭載 Intel® Alder Lake-N 處理器 N97 和 Atom® x7425E 處理器
- 1 個 DDR5 SO-DIMM 插槽，支援最高 4800MHz 和 16GB 記憶體
- 1 個 M.2 Key E Type 2230 插槽，可擴充無線網路 / Intel CNVi 模組
- 1 個 M.2 Key B Type 3042 / 3052 插槽，可擴充 5G / 儲存 / 附加卡
- 前面板符合 IP65 標準
- 強固鋁合金壓鑄前框設計
- 支援面板式 / VESA / 機架式安裝
- 支援 Cincoze 專利 CDS 技術（專利號碼 M482908）
產品介紹
CV-100/P1301 系列是一款模組化工業平板電腦，搭載 Intel® Alder Lake-N 處理器。齊全完整的螢幕尺寸選擇與靈活的擴充性是特色之一，除原生豐富的 I/O 接口 (2.5 GbE LAN、USB 3.2 Gen 2 x1、COM 和 DIO) 外，也具備 M.2 Key B Type 3052、M.2 Key E Type 2230 擴充槽，還可利用獨家 CFM 擴充模組增添 PoE/IGN 等功能。透過德承獨家的 CDS 專利技術，對於未來電腦效能升級或是更換螢幕更加具有彈性。強固的 CV-100/P1301 系列可滿足設備機台的 HMI 與生產流程可視化的多元應用。
Product Category >>>> Modular Panel PC & Industrial Monitor
AI 與多工運行的強悍效能
——
CV-100/P1301 系列搭載 Intel® 7 製程的 Alder Lake-N 四核心處理器，與前一代 Elkhart Lake 平台相比，CPU Single - Thread 效能提升高達 130%，Multi-thread 效能提升 109%。而處理器內建的 UHD Graphics 顯示晶片，其 AI 推論的物件辨識效能更是提升了 6.85 倍。
升級、維修超方便
——
透過 CDS (Convertible Display System) 專利技術，不僅在現場端具有易於維護優勢外，也可保留未來升級需求，無論是更換螢幕或是系統效能提升，只需換置單一組件即可達成，大幅節省升級成本。
Patent No. M482908齊全完整的產品組合
——
CV-100/P1301 系列擁有多樣化的產品組合，從螢幕尺寸 (8.4 - 24 吋)、顯示比例 (4:3 / 5:4 / 16:9) 到觸控方式 (多點電容式及單點電阻式)，可針對應用需求進行選擇。
強固、安全、更可靠
——
面對嚴苛險峻的使用環境，CV-100/P1301 系列備有一系列的工業級防護， 包括寬工作溫度範圍（-20°C 至 70°C）、寬範圍直流電源輸入（9 至 48VDC）、IP65 前面板防塵/防水等，有利於現場端 HMI 或生產流程可視化等應用。
影片
詳細規格
CV-110H Series
| Model Name | CV-110HR | CV-110HC | |
|---|---|---|---|
| Display | LCD Size | 10.4" (4:3) | |
| Max. Resolution | 1024 x 768 | ||
| Brightness (cd/m2) | 400 | ||
| Contract Ratio | 1400 : 1 | ||
| LCD Color | 16.2M | ||
| Pixel Pitch (mm) | 0.2055 (H) x 0.2055 (V) | ||
| Viewing Angle (H-V) | 178 / 178 | ||
| Backlight MTBF | 50,000 hrs (LED Backlight) | ||
| Touch Screen | Touchscreen Type | Resistive 5-wire | Projected Capacitive |
| Physical | Dimension (W x D x H) | 295 x 227.3 x 56.2 mm | |
| Weight Information | 2.24 kg | ||
| Mechanical Construction | Die-Casting Flat Surface | ||
| Environment | Front Panel Protection | IP 65 Compliant | |
| Operating Temperature | Ambient with Air flow: -20°C to 75°C (with Industrial Grade Peripherals) | Ambient with Air flow: -20°C to 80°C (with Industrial Grade Peripherals) | |
| Storage Temperature | -30°C to 80°C | ||
| Relative Humidity | 90% RH @ 40°C (Non-Condensing) | ||
| EMC | CE, UKCA, FCC, ICES-003 Class A | ||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | ||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | ||
| Safety | UL, cUL, CB, IEC, EN 62368-1 | ||
P1301
| Model Name | P1301 | |
|---|---|---|
| System | Processor | • Onboard Intel® Alder Lake-N Series Processor: - Intel® Processor N97 4 Cores Up to 3.60 GHz, TDP 12W - Intel Atom® x7425E 4 Cores Up to 3.40 GHz, TDP 12W |
| Memory | • 1x DDR5 4800MHz SO-DIMM Socket Supports Un-buffered and Non-ECC Type, Up to 16GB | |
| BIOS | • AMI BIOS | |
| Graphics | Graphics Engine | • Integrated Intel® UHD Graphics |
| Maximum Display Output | • Supports Triple Independent Display | |
| CDS | • 1x CDS Connector (1920 x 1080 @60Hz) | |
| DP | • 1x DisplayPort Connector (4096 x 2304 @60Hz) * Verified maximum resolution: 3840 x 2160 @ 60Hz | |
| VGA | • 1x VGA Connector (1920 x 1200 @60Hz) | |
| Audio | Audio Codec | • Realtek® ALC888, High Definition Audio |
| Line-out | • 1x Line-out, Phone Jack 3.5mm | |
| Mic-in | • 1x Mic-in, Phone Jack 3.5mm | |
| I/O | LAN | • 2x 2.5GbE LAN, RJ45 - GbE1 / GbE2: Intel® I225 |
| COM | • 2x RS-232/422/485 with Auto Flow Control Support 5V/12V, DB9 | |
| USB | • 3 x USB 3.2 Gen2x1 (10Gbps), Type A • 1 x USB 2.0 (480Mbps), Type A | |
| DIO | • 8x Isolated Digital I/O (4in/4out), 10-Pin Terminal Block | |
| Storage | SSD/HDD | • 1x 2.5" Front Accessible SATA HDD/SSD Bay |
| M.2 SSD | • 1 x M.2 SSD Shared by M.2 Key B Socket | |
| Expansion | M.2 Key E Socket | • 1x M.2 Key E Type 2230 Socket (PCIe Gen 3x1 / USB2.0), Support Wireless/Intel CNVi Module Expansion |
| M.2 Key B Socket | • 1x M.2 Key B Type 3042/3052 Socket (PCIe Gen 3x1 / USB3.2 Gen2 x1 / SATA ), Support 5G/Storage/Add-on Card Expansion | |
| SIM Socket | • 1x Front Accessible SIM Socket | |
| CFM (Control Function Module) Interface | • 1x CFM Interface for optional IGN Module Expansion • 1x CFM Interface for optional PoE Module Expansion | |
| Other Function | Clear CMOS Switch | • 1 x Clear CMOS Switch |
| Reset Button | • 1x Reset Button | |
| Instant Reboot | • Support 0.2sec Instant Reboot Technology | |
| Watchdog Timer | • Software Programmable Supports 256 Levels System Reset | |
| OSD Function | • LCD On/Off, Brightness Up, Brightness Down | |
| Internal Speaker | • AMP 2W + 2W | |
| Status LED Indicator | • Power LED, HDD LED | |
| Power | Power Button | • 1x ATX Power On/Off Button |
| Power Mode Switch | • 1x AT/ATX Mode Switch | |
| Power Input | • 9 - 48VDC, 3-pin Terminal Block | |
| Remote Power On/Off | • 1x Remote Power On/Off, 2-pin Terminal Block | |
| Remote Power LED | • 1x Remote Power LED, 2-pin Terminal Block | |
| Operating Stystem | Microsoft® Windows® | • Windows®11, Windows®10 |
| Linux | • Ubuntu 22.04 | |
| Physical | Dimension ( W x D x H ) | • 204.5 x 149 x 46.5mm |
| Weight | • 1.57 kg | |
| Mechanical Construction | • Extruded Aluminum with Heavy Duty Metal | |
| Mounting | • Wall / VESA / CDS / DIN Rail | |
| Physical Design | • Fanless Design • Jumper-less Design | |
| Reliability & Protection | Reverse Power Input | • Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the present level to recover | |
| Over Current Protection | • 15A | |
| CMOS Battery Backup | • SuperCap Integrated for CMOS Battery Maintenance-free Operation | |
| MTBF | • 306,338 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3 | |
| Environment | Operating Temperature | • -40°C to 70°C * PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (without thermal throttling) * With extended temperature peripherals; Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | • -40°C to 70°C | |
| Relative Humidity | • 95% RH @ 70˚C (Non-condensing) | |
| Shock | • Operating, 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | |
| Vibration | • Operating, 1 Grms, 10-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-6) • Operating, 5 Grms, 5-500 Hz, 3 Axes (w/ SSD, according to IEC60068-2-64) | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN61000-6-4, EN61000-6-2 @ DC-input 24V | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V (**Compliant with the standard when utilizing shielded ethernet cable.) • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz | |
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |
訂購資訊
| Model No. | Product Description |
|---|---|
| CV-110HR-R10/P1301-N97-R10 | 10.4" TFT-LCD XGA 4:3 Panel PC with Intel® Processor N97 Quad Core Slim Embedded Computer and Resistive 5-wire Touch |
| CV-110HC-R11/P1301-N97-R10 | 10.4" TFT-LCD XGA 4:3 Panel PC with Intel® Processor N97 Quad Core Slim Embedded Computer and P-Cap. Touch |
| CV-110HR-R10/P1301-X7425E-R10 | 10.4" TFT-LCD XGA 4:3 Panel PC with Intel® Atom® x7425E Quad Core Slim Embedded Computer and Resistive 5-wire Touch |
| CV-110HC-R11/P1301-X7425E-R10 | 10.4" TFT-LCD XGA 4:3 Panel PC with Intel® Atom® x7425E Quad Core Slim Embedded Computer and P-Cap. Touch |
| CV-110HR | CV-110HC | P1301-N97 | P1301-X7425E | |
|---|---|---|---|---|
| CV-110HR/P1301-N97 | V | -- | V | -- |
| CV-110HC/P1301-N97 | -- | V | V | -- |
| CV-110HR/P1301-X7425E | V | -- | -- | V |
| CV-110HC/P1301-X7425E | -- | V | -- | V |
| • CV-110H/P1301 Series Panel PC x 1 | • Power Terminal Block Connector x 1 |
| • Thermal Pad (for CPU Thermal Block) x 1 | • Remote Function Terminal Block Connector x 1 |
| • Screw Pack x 2 | • DIO Terminal Block Connector x 1 |
| • Panel Mounting Kit x 6 | • M.2 Key B Type 3052 to 3042 Adapter Bracket x 1 |
| Model No. | Description |
|---|---|
| CFM-IGN101 | CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (43 x 36 mm) |
| CFM-PoE02 | CFM Module with PoE Control Function, Individual Port 25.5W |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C) |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI |
