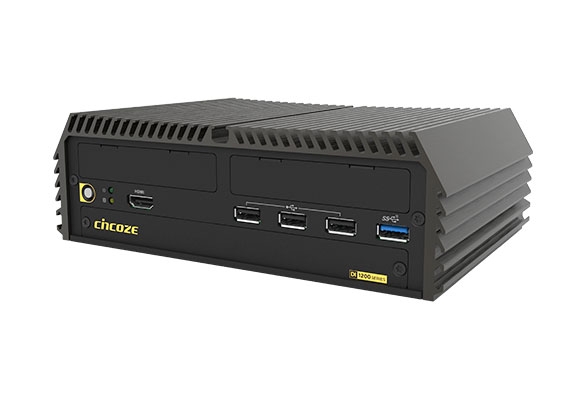

DI-1200

Intel® 第 12 代 Alder Lake-P 平台，高效且節能的強固型嵌入式電腦
產品特點
  • 搭載第 12 代 Intel® Alder Lake-P U 系列 Core™ i7/i5/i3 處理器
  • 1 個 DDR5 SO-DIMM 插槽，支援最高 4800MHz，32GB 記憶體
  • 四個獨立顯示 (2x DP / HDMI / CMI 顯示)
  • 1 個 M.2 Key E Type 2230 插槽，可擴充無線網路 / Intel CNVi 模組
  • 1 個 M.2 Key B Type 3042 / 3052 插槽，可擴充 5G / 儲存 / 附加卡
  • CMI 技術，選配可擴充 I/O 模組
  • CFM 技術，支援電源點火感應功能與 PoE
  • 寬工作溫度範圍 -40°C 到 70°C
加入諮詢清單 規格表
產品介紹
High Performance, Power-saving - DI-1200, an Intel Alder Lake-P Compact Rugged Computer

DI-1200 搭載第 12 代 Intel® Core™ U 系列處理器（Alder Lake-P Platform），在提供卓越效能的同時也擁有 15W 的低功耗優勢。在緊湊外型下蘊含豐富 I/O 介面和擴充選項，可滿足狹小空間中對高效能強固嵌入式電腦的需求，特別適用於工業自動化、倉儲物流、交通、環境監控以及物聯網等應用場景。



高效能、低功耗

——

DI-1200 搭載 Intel® 7 製程的第 12 代 Core™ i7/i5/i3（Alder Lake-P）U 系列處理器，展現卓越的處理效能。僅 15W 的超低功耗，非常適合受電池容量限制的移動式設備。

高效能、低功耗
小於 A5


小於 A5

——

DI-1200 尺寸僅為 203 x 142 x 66.8mm，比 A5 還小。是移動設備 (自動導引車 AGV、自主移動機器人 AMR）、狹小車內空間或工廠端小型機箱的理想選擇。



高速 I/O

——

DI-1200 提供豐富的高速 I/O，包括：LAN (10GbE、2.5GbE、1GbE)、USB 3.2 (10Gbps、5Gbps)、USB 2.0 等，使得資料與影像的傳輸更為迅速，能輕鬆連接各式高速裝置。

高速 I/O
完整的無線傳輸方案


完整的無線傳輸方案

——

配備了一個 M.2 Key E 插槽和一個 M.2 Key B 插槽，提供全方位的無線傳輸選項，包括：GSM、GNSS、Wi-Fi 和藍牙。同時可支援 Intel CNVi 模組，滿足多元的傳輸需求。



快速抽取硬碟

——

移動式設備常面臨快速拿取資料的需求，DI-1200 將具有可熱插拔 2.5 吋 SATA HDD/SSD 插槽設計在機身前維護區，可輕鬆取得硬碟內資料。

快速抽取硬碟
安全穩固


安全穩固

——

DI-1200 以其工業級保護和多項行業認證展現卓越的強固性。符合國際電工委員會制定工業環境下的 EMC 標準 (IEC 61000-6-2 和 IEC 61000-6-4)，確保在眾多電磁波的環境中仍能正常運作。同時，DI-1200 符合美國軍事標準 MIL-STD-810H，能夠在極端衝擊和震動條件下穩定運行。

影片
RESOURCES
新平台全面升級: 德承海量展示多款 Alder Lake 平台工業電腦及平板電腦
2024-02-01
新平台全面升級: 德承海量展示多款 Alder Lake 平台工業電腦及平板電腦
詳細規格
Model NameDI-1200
SystemProcessor• Onboard 12th Intel® Alder Lake-P U-Series CPU:
  - Intel® Core™ i7-1265UE 10 Cores Up to 4.70 GHz, TDP 15W
  - Intel® Core™ i5-1245UE 10 Cores Up to 4.40 GHz, TDP 15W
  - Intel® Core™ i3-1215UE 6 Cores Up to 4.40 GHz, TDP 15W
Memory• 1x DDR5 SO-DIMM Socket,
  Supports Un-buffered and non-ECC Type, Up to 32GB
BIOS• AMI BIOS
GraphicsGraphics Engine• Integrated Intel® Iris® Xe Graphics: Core™ i7-1265UE, i5-1245UE
• Integrated Intel® UHD Graphics: Core™ i3-1215UE
Maximum Display Output• Supports Quad Independent Display
HDMI• 1x HDMI Connector (3840 x 2160@60Hz)
DP• 2x DisplayPort Connector (3840 x 2160@60Hz)
CMI Display• 1x CMI Interface for Optional CMI-DP/CMI-HDMI/CMI-VGA Module Expansion
AudioAudio Codec• Realtek® ALC888, High Definition Audio
Line-out• 1 x Line-out, Phone Jack 3.5mm
Mic-in• 1 x Mic-in, Phone Jack 3.5mm
I/OLAN• 2x 2.5 GbE LAN, RJ45
  - GbE1: Intel® I225
  - GbE2: Intel® I225
COM• 2x RS-232/422/485 with Auto Flow Control (Supports 5V/12V), DB9
USB• 1 x USB 3.2 Gen2x1 (10Gbps), Type A
• 2 x USB 3.2 Gen1x1 (5Gbps), Type A
• 3 x USB 2.0 (480Mbps), Type A
StorageSSD/HDD• 1x 2.5" SATA HDD/SSD Bay (SATA 3.0)
M.2 SSD• 1 x M.2 SSD shared by M.2 Key B Type 3052 Socket
RAID• Support RAID 0/1
ExpansionM.2 Key E Socket• 1x M.2 Key E Type 2230 Socket, Support Wireless/Intel CNVi Module Expansion
M.2 Key B Socket• 1x M.2 Key B Type 3042/3052 Socket, Support 5G/Storage/Add-on Card Expansion
SIM Socket• 2 x Front Accessible SIM Socket
CMI (Combined Multiple I/O) Interface• 1x CMI Interface for optional CMI-LAN Module Expansion
• 1x CMI Interface for optional CMI-Display / CMI-COM / CMI-DIO Module Expansion
CFM (Control Function Module) Interface• 1x CFM IGN Interface for optional CFM-IGN Module Expansion
Other FunctionExternal FAN Connector• 1x External FAN Connector, 4-pin Terminal Block (Support Smart Fan by BIOS)
Clear CMOS Switch• 1x Clear CMOS Switch
Reset Button• 1x Reset Button
Instant Reboot• Support 0.2sec Instant Reboot Technology
Watchdog Timer• Software Programmable Supports 256 Levels System Reset
PowerPower Button• 1 x ATX Power On/Off Button
Power Mode Switch• 1 x AT/ATX Mode Switch
Power Input• 9 - 48VDC, 3-pin Terminal Block
Remote Power On/Off• 1 x Remote Power On/Off, 2-pin Terminal Block
Remote Power LED• 1 x Remote Power LED, 2-pin Terminal Block
PhysicalDimension ( W x D x H )• 203 x 142 x 66.8 mm
Weight Information• 1.8 KG
Mechanical Construction• Extruded Aluminum with Heavy Duty Metal
Mounting• Wall / Side / DIN-RAIL / VESA Mount
Physical Design• Fanless Design
• Cableless Design
• Jumper-less Design
• Unibody Design
Reliability & ProtectionReverse Power Input• Yes
Over Voltage Protection• Protection Range: 51~58V
• Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection• 15A
CMOS Battery Backup• SuperCap Integrated for CMOS Battery Maintenance-free Operation
MTBF• 486,235 Hours - Database: Telcordia SR-332 Issue3, Method 1, Case 3
Operating SystemWindows• Windows®11, Windows®10
Linux• Ubuntu 22.04
EnvironmentOperating Temperature• -40°C to 70°C
  - PassMark Burn-In Test: 100% CPU, 2D/3D Graphics (without thermal throttling)
  - With extended temperature peripherals; Ambient with air flow
  - According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14
Storage Temperature• -40°C to 70°C
Relative Humidity• 95% RH @ 70°C (Non-condensing)
Shock• MIL-STD-810H
Vibration• MIL-STD-810H
EMC• CE, UKCA, FCC, ICES-003 Class A
• EN IEC 61000-6-4 / EN IEC 61000-6-2 (24VDC Input Only)
• EN 50155 (EN 50121-3-2 Only)
• E-mark (Pending)
EMI• CISPR 32 Conducted & Radiated: Class A
• EN/BS EN 50121-3-2 Conducted & Radiated: Class A
• EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A
• EN/BS EN 61000-3-3 Voltage fluctuations & flicker
• FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A
EMS• EN/IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV
• EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 20 V/m
• EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 2 kV; Signal: 2 kV
• EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV
• EN/IEC 61000-4-6 CS: 10V
  (**Compliant with the standard when utilizing shielded cable.)
• EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m
• EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz
訂購資訊
Available Models
Model No.Product Description
DI-1200-i7-R1012th Generation Intel Core i7-1265UE High Performance, Compact and Modular Rugged Embedded Computer
DI-1200-i5-R1012th Generation Intel Core i5-1245UE High Performance, Compact and Modular Rugged Embedded Computer
DI-1200-i3-R1012th Generation Intel Core i3-1215UE High Performance, Compact and Modular Rugged Embedded Computer

Package Checklist
• DI-1200 Embedded Computer x1• Power Terminal Block Connector x1
• CPU Thermal Pad  x1• Remote Power On/Off  + Remote Power LED Connector x 1
• Screw Pack x 1• Fan Terminal Block Connector x 1
• Wall Mounting Kit x1 • M.2 Key B Type 3052 to 3042 Adapter Bracket x1

Optional Modules and Accessories
Model No.Description
CFM-IGN102CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable
CFM-PoE06-R10CFM Module with PoE Function, Individual Port 25.5W
CMI-LAN01-R12CMI Module with 4x RJ45 Intel I210 GbE LAN Ports
CMI-M12LAN01-R12CMI Module with 4 x M12 Intel I210 GbE LAN Ports
CMI-XM12LAN01-R10CMI Module with M12 X-Coded Connector, 4x Intel I210 GbE LAN Ports
CMI-10GLAN04-R10CMI Module with 2x Intel X550 10GbE LAN Ports
CMI-VGA02-R10CMI Module with 1x VGA Port
CMI-HD04-R10CMI Module with 1x HDMI Port
CMI-DP02-R10CMI Module with 1x DisplayPort
CMI-DIO05-R10CMI Module with 16DIO (8in 8out)
CMI-COM05-R10CMI Module with 2x RS232/422/485 (Support 5V/12V)
UB1503-R11Universal Bracket with 2x DB9 Cutout
UB1506-R10Universal Bracket with DisplayPort Cutout
UB1508-R10Universal Bracket with HDMI Cutout
UB1510-R11Universal Bracket with 4x M12 Cutout
UB1512-R11Universal Bracket with 4x RJ45 Cutout for CMI-LAN Expansion
UB1516-R10Universal Bracket with VGA Cutout
UB1518-R10Universal Bracket with DIO Cutout
UB1528-R11Universal Bracket with 2x RJ45 Cutout for CMI-10GLAN Expansion
DINRAIL-R10Diamond series DIN-RAIL Mount Kit
FAN-EX103External Fan with 4pin Terminal Block Plug and Mounting Bracket, Support Smart Fan (*External fan must be installed when using CFM-PoE module)
SIDE01DI Series Side Mount Kit
GST60A12-CIN1Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug and Tubes, Level VI
GST120A24-CINAdapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI
GST220A24-CINAdapter AC/DC 24V 9.2A 220W with 3pin Terminal Block Plug and Tubes, Level VI

相關下載
Datasheet
檔案名稱發行日期下載
DI-1200 Datasheet2024/02/01下載專區
Manual
檔案名稱發行日期下載
DI-1200 User Manual2024/02/01下載專區
Driver
檔案名稱發行日期下載
DI-1200 Driver - Audio2024/01/11下載專區
DI-1200 Driver - Chipset2024/01/11下載專區
DI-1200 Driver - COM2024/01/11下載專區
DI-1200 Driver - GNA2024/01/11下載專區
DI-1200 Driver - Graphics2024/01/11下載專區
DI-1200 Driver - LAN2024/03/25下載專區
DI-1200 Driver - Intel ME2024/01/11下載專區
DI-1200 Driver - RAID2024/01/11下載專區
