CV-112 / P2002

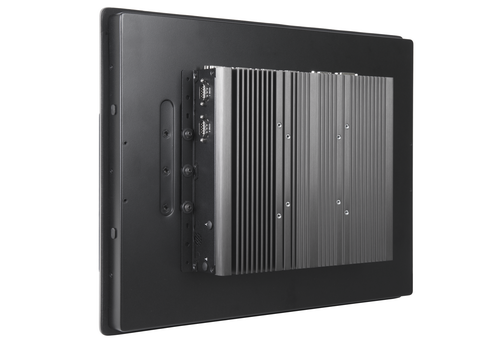

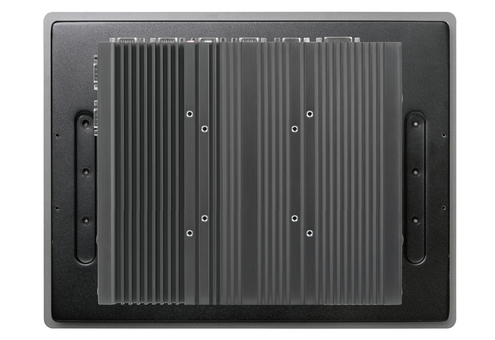

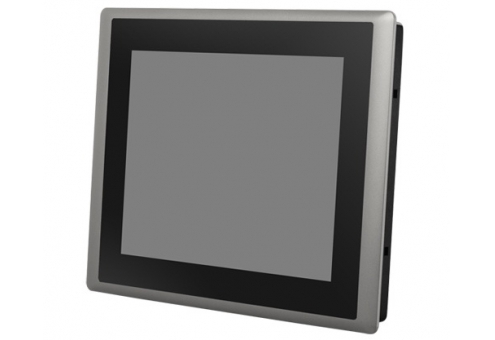

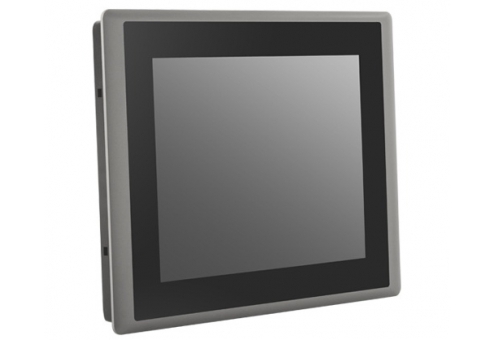

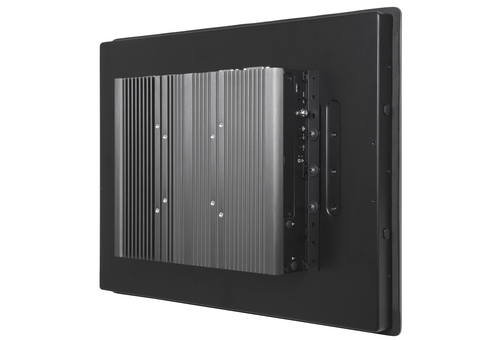

12.1" 6th Gen. Intel® Core™ Processor U Series Fanless Touch Panel PC with CFM & CDS Technology

PRODUCTS FEATURES
  • 12.1" SVGA TFT-LCD with Resistive 5-wire / Projected CapacitiveTouch
  • Onboard Intel® 6th Generation Core™ Processor U Series (15W)
  • 2x DDR4 SO-DIMM Socket, Support Up to 32 GB
  • Integrated Intel® HD Graphics 520 Support Triple Display
  • 2x 2.5” SATA HDD Bay, 1x mSATA and 1x CFast Socket
  • IP65 Compliant Aluminum Die-Cast Front Frame
  • 2x Full-size Mini-PCIe Socket for Wireless and I/O Expansion
  • Support CFM Technology for PoE and Ignition Sensing Functions
  • Rich I/O (2x GbE LAN, 6x COM, 5x USB, 16x Isolated DIO)
  • Support Instant Reboot Technology
  • Wide Operating Temperature (-20°C to 70°C)
  • SuperCap integrated for CMOS Battery Maintenance-Free
OVERVIEW
Cincoze CV-112/P2000 Series is a 12.1” high performance fanless and jumperless rugged touch panel PC powered by Intel® 6th generation Core™ processor U series, offering more computing power, faster data processing and a 40% boost to graphics performance, while consuming only 15W of power.

The CV-112/P2000 Series supports CFM (Control Function Module) Technology, Cincoze own defined interface with integrated power boost and control signal that allows you to extend PoE and ignition sensing functions with additional CFM boards. In addition Cincoze offers a full series of Mini-PCIe Expansion I/O Card (MEC) for adding extra I/O through the universal bracket. The CV-112/P2000 Series comes with the slim version, and the expandable version (PCI/PCIe card expansion) made with outstanding modular design concept for the greatest flexibility to fulfill the versatile industrial applications.

The CV-112/P2000 Series is a truly rugged computing system supporting wide operating temperature from -20°C to 70°C, wide range DC input from 9V to 48V, and various kinds of industrial protections. Moreover the instant reboot circuit design allows the system to cope with critical power request for factory applications. The CV-112/P2000 Series has an integrated SuperCap to avoid high downtime cost of replacing CMOS battery and be absolutely maintenance-free.
SPECIFICATION
Model NameCV-112/P2002
Model No.CV-112R/P2002CV-112C/P2002
DisplayLCD Size12.1" (4:3)
Max. Resolution800 x 600
Brightness (cd/m2)450
Contrast Ratio800 : 1
LCD Color262K
Pixel Pitch (mm)0.3075 (H) x 0.3075 (V)
Viewing Angle (H-V)160 / 140
Backlight MTBF50,000 hrs (LED Backlight)
TouchResistive 5-wireV-
Projected Capacitive-V
Processor SystemOnboard 6th Intel® Core™ U processors (Skylake)
- Intel® Core™ i5-6300U processor (3M Cache, up to 3.00 GHz)
- Intel® Core™ i3-6100U processor (3M Cache, 2.30 GHz)
- TDP: 15 W
- BIOS: AMI 64Mbit SPI BIOS
Memory2x DDR4 260-pin SO-DIMM socket, support up to 32 GB
(2133MHz, un-buffered and non-ECC type)
GraphicsIntel® HD Graphics 520
Triple display with 1x VGA, 1x DVI-D and 1x CDS interface
AudioRealtek® ALC888-GR
High Definition Audio
I/O Interface1x VGA (Up to 1920 x 1080 @ 60Hz), DB-15
1x DVI-D (Up to 1920 x 1080 @ 60Hz)
1x CDS Interface, Compact PCI Connector
2x GbE LAN (Support WoL, Teaming, Jumbo Frame and PXE), RJ45
- GbE1: Intel I219LM
- GbE2: Intel I210IT
2x PoE+ (with Optional CFM PoE Module)
- Comply with IEEE 802.3at, Offers Up to 25.5W Per Port
6x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9
4x USB 3.0, Type-A
1x USB 2.0, Type-A
16x Isolated DIO (8x DI/8x DO), 20-Pin Terminal Block
1x Line-out & 1x Mic-in, Phone Jack 3.5mm
1x Power On/Off Switch
1x Reset Button
1x AT/ATX Switch
1x Remote Power On/Off Connector, 2-Pin Terminal Block
1x External FAN Connector, 4-Pin Terminal Block
Storage2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3)
2x mSATA (One Shared by Mini-PCIe Socket) (Gen2)
1x CFast Socket (Gen3)
Expansion1x CFM PoE interface
1x CFM IGN interface
2x Full-size Mini-PCIe Socket
1x Universal I/O Bracket
1x SIM Socket
4x Antenna Hole
Other FunctionSupport CDS Technology
Support CFM Technology
Support Instant Reboot Technology (0.2 sec)
Support Power Ignition Sensing (IGN)
Support OSD Function
(LCD On/Off, Brightness Up, Brightness Down for CDS Display Module)
Internal Speaker AMP 2W + 2W
SuperCap Integrated
Watchdog Timer:
Software Programmable Supports 256 Levels System Reset
Power RequirementSupport AT/ATX Power Mode
Power Input Voltage 9~48VDC
One 3-pin Terminal Block Connector
Optional Power Adapter AC/DC 12V/5A 60W or 24V/5A 120W
PhysicalDimension (WxHxD): 345 x 265.3 x 82 mm
Weight: 6.08 kg
Die-cast Flat Surface
Supports Panel / VESA / *Rack Mounting (*with optional mounting kit)
Fanless Design
Jumper-less Design
ProtectionReverse Power Input Protection
Over Voltage Protection:
Protection Range: 51~58V
Protection Type: shut down operating voltage, re-power on at the preset level to recover
Over Current Protection: 15A
ESD Protection: +/-8kV (air), +/-4kV (contact)
Surge Protection: 3kW
Operating StystemWindows® 10
Windows® 8.1
Windows® 7
Linux® Kernel 4.4
EnvironmentOperating Temperature: -20°C to 70°C
(With extended temperature peripherals; Ambient with air flow
According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
Storage Temperature: -30°C to 80°C
Relative Humidity: 80% RH @ 40°C (Non-condensing)
IP Level: IP65 Compliant Front Panel
EMC: CE, FCC Class A
ORDERING INFORMATION
Available Models
Model No.Product Description
CV-112R-R10/P2002-i5-R1012.1" TFT SVGA 4:3 Panel PC with Resistive 5-wire Touch and Intel 6th Gen. Core i5-6300U Fanless Computer, CFM Interface, CDS Interface
CV-112C-R10/P2002-i5-R1012.1" TFT SVGA 4:3 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i5-6300U Fanless Computer, CFM Interface, CDS Interface
CV-112R-R10/P2002-i3-R1012.1" TFT SVGA 4:3 Panel PC with Resistive 5-wire Touch and Intel 6th Gen. Core i3-6100U Fanless Computer, CFM Interface, CDS Interface
CV-112C-R10/P2002-i3-R1012.1" TFT SVGA 4:3 Panel PC with Projected Capacitive Touch and Intel 6th Gen. Core i3-6100U Fanless Computer, CFM Interface, CDS Interface


Package Checklist
√Panel PC x 1
√Utility DVD Driver x 1
√Power Terminal Block Connector x 1
√Screw Pack x 1
√Panel Mounting Kit x 1
√Fan Terminal Block Connector x 1
√DIO Terminal Block Connector x 2
√Power On/Off Terminal Block Connector x 1

Optional Modules
Model No.Description
CFM-IGN100CFM Module with Power Ignition Sensing Control Function, 12V/24V Selectable (41 x 35 mm)
CFM-PoE100PoE Control Function Module, Individual Port 25.5W (50 x 44 x 15 mm) (For CV-100/P2002 only)
MEC-COM-M212-0503Mini-PCIe Module with 2x COM Ports, 2x Universal Brackets (154 x 17 mm)
MEC-COM-M334-0504Mini-PCIe Module with 4x RS-232/422/485 Serial Ports,1x Universal Bracket (154 x 17 mm)
MEC-FIR-M003-0501Mini-PCIe Module with 1x 1394A Port, 2x 1394B Ports, 1x Universal Bracket (154 x 17 mm)
MEC-LAN-M102-30/UB0511Mini-PCIe Module with 2x LAN Ports, 2x 30cm cable / 1x Universal Bracket with 2x RJ45 Cutout for P2000 Series
MEC-USB-M002-0514Mini-PCIe Module with 2x USB 3.0 Ports, 1x Universal Bracket (154 x 17 mm)
RC-E4-01Riser Card with 1x PCIex4 Slot
RC-PI-01Riser Card with 1x PCI Slot

Optional Accessories
Model No.Description
GST60A12-CIN1Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C)
GST120A24-CINAdapter AC/DC 24V 5A 120W, GST120A24-CIN, wide temp (-30°C ~ +70°C), level VI
SL2-SL3US 2 heads power cord, US B type to IEC C13,SVT 18AWG/3C Black 1.8M
SL6-SL3EU 2 heads power cord, EU G type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M
QP026-SL3UK 2 heads power cord, UK I type to IEC C13,H05VV-F 0.75mm2/3G Black 1.8M
URM01Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor
