Energiesparende Sonnenlichtlesbare Panel PCs (CS-100/P1000 Serie)

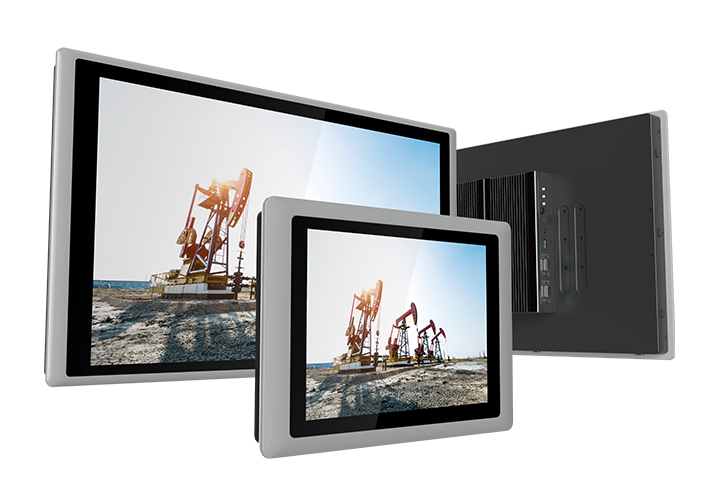

Diese All-in-One-Panel-PC-Serie mit sonnenlichttauglichen Displays von 8,4" bis 24" mit projiziertem kapazitivem Touchscreen wird von einem Intel® Atom™ Quad-Core-Prozessor angetrieben. Es handelt sich um eine robuste und zuverlässige Panel-PC-Lösung mit einer Helligkeit von bis zu 1800 nits, die für industrielle Außenanwendungen geeignet ist.| Produkt | Modell Name | Display | CPU | I/O | Erweiterung |
|---|---|---|---|---|---|
 | CS-108 / P1301 Series | 8.4" TFT 800 x 600 (4:3) 1600 nits | Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CS-108 / P1201 Series | 8.4" TFT 800 x 600 (4:3) 1600 nits | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CS-108 / P1001 Series | 8.4" TFT 800 x 600 (4:3) 1600 nits | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
 | CS-108 / P1101 Series | 8.4" TFT 800 x 600 (4:3) 1600 nits | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CS-110H / P1301 Series | 10.4" TFT 1024 x 768 (4:3) 1500 nits | Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CS-110H / P1201 Series | 10.4" TFT 1024 x 768 (4:3) 1500 nits | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CS-110H / P1101 Series | 10.4" TFT 1024 x 768 (4:3) 1500 nits | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CS-110H / P1001 Series | 10.4" TFT 1024 x 768 (4:3) 1500 nits | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
 | CS-112H / P1301 Series | 12.1" TFT 1024 x 768 (4:3) 1500 nits | Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CS-112H / P1201 Series | 12.1" TFT 1024 x 768 (4:3) 1500 nits | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CS-112H / P1101 Series | 12.1" TFT 1024 x 768 (4:3) 1500 nits | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CS-112H / P1001 Series | 12.1" TFT 1024 x 768 (4:3) 1500 nits | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
 | CS-115 / P1301 Series | 15" TFT 1024 x 768 (4:3) 1800 nits | Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CS-115 / P1201 Series | 15" TFT 1024x768 (4:3) 1800 nits | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CS-115 / P1101 Series | 15" TFT 1024x768 (4:3) 1800 nits | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CS-115 / P1001 Series | 15" TFT 1024x768 (4:3) 1800 nits | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
 | CS-117 / P1301 Series | 17" TFT 1280 x 1024 (5:4) 1500 nits | Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CS-117 / P1201 Series | 17" TFT 1280x1024 (5:4) 1500 nits | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CS-117 / P1101 Series | 17" TFT 1280x1024 (5:4) 1500 nits | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CS-117 / P1001 Series | 17" TFT 1280x1024 (5:4) 1500 nits | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
 | CS-119 / P1301 Series | 19" TFT 1280 x 1024 (5:4) 1600 nits | Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CS-119 / P1201 Series | 19" TFT 1280x1024 (5:4) 1600 nits | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CS-119 / P1101 Series | 19" TFT 1280x1024 (5:4) 1600 nits | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CS-119 / P1001 Series | 19" TFT 1280x1024 (5:4) 1600 nits | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
 | CS-W121 / P1301 Series | 21.5" TFT 1920 x 1080 (16:9) 1000 nits | Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CS-W121 / P1201 Series | 21.5" TFT 1920x1080 (16:9) 1000 nits | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CS-W121 / P1101 Series | 21.5" TFT 1920x1080 (16:9) 1000 nits | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CS-W121 / P1001 Series | 21.5" TFT 1920x1080 (16:9) 1000 nits | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
 | CS-W124 / P1301 Series | 24" TFT 1920 x 1080 (16:9) 1500 nits | Intel® Processor N97 Intel® Atom® x7425E | 1x VGA 1x DisplayPort 2x 2.5GbE LAN 4x USB 2x COM 8x DIO | 2x M.2 Socket 1x SIM Socket 2x CFM Interface |
 | CS-W124 / P1201 Series | 24" TFT 1920x1080 (16:9) 1500 nits | Intel® Atom® x6000E | 1x VGA 1x DisplayPort 2x 1GbE LAN 4x USB 3x COM 8x DIO | 1x Full-size Mini-PCIe Socket, 1x SIM Socket, 1x M.2 Key E Type 2230 Socket, Support Wireless Module |
 | CS-W124 / P1101 Series | 24" TFT 1920x1080 (16:9) 1500 nits | Intel® Atom® x7-E3950 Intel® Pentium® N4200 | 1x VGA 1x DisplayPort 2x GbE LAN 4x USB 3.0 4x COM 8x DIO | 2x Mini-PCIe and Support CFM (PoE, IGN) |
 | CS-W124 / P1001 Series | 24" TFT 1920x1080 (16:9) 1500 nits | Intel® Atom™ E3845 | 1x VGA 1x DisplayPort 2x LAN 4x USB 2x COM 8x DIO | 1x Mini-PCIe |
