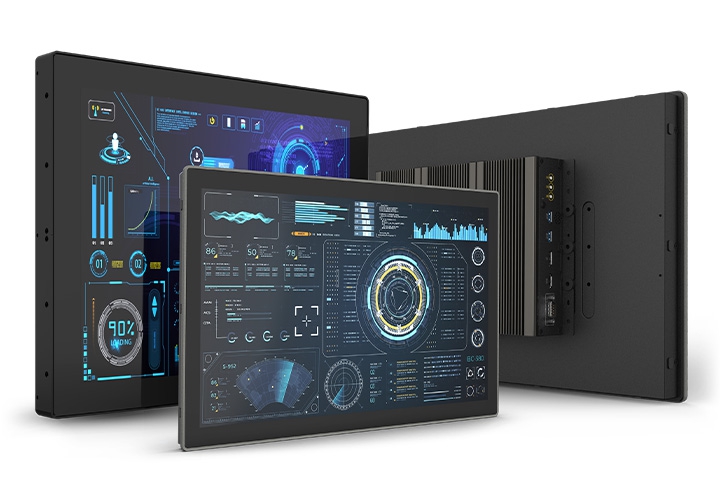

Industrial Panel PC

Industrial Panel PC

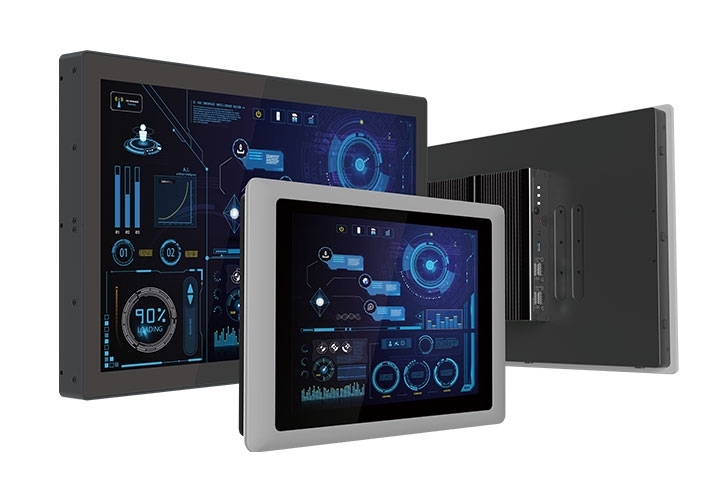

Cincoze Convertible Display Systems are all-in-one devices integrated with high-resolution screens, touch screens and computers. Our convertible display system product line that is consisted of Convertible Panel PC and Touch Monitor. A wide selection of display sizes are available from 8.4” to 21.5” with format aspect of 4:3 and 16:9, choices of single or multi-touch screen, and selected computer performance. Cincoze convertible display systems are designed with innovative technology and the highest industrial standard. They have extensive functionality that fulfill the needs for a wide range of applications.

“Crystal” is our display computing system product line that includes three series; Convertible Panel PC (Crystal VP), Convertible Touch Monitor (Crystal VM), and Display System Module (CDS Module). Crystal is a flexible, all-in-one, industrial, and multi-functional solution that fulfills a wide range of applications.

High Performance Modular Panel PC (CV-100/P2000 Series)

Cincoze CV-100/P2000 Series is a high performance fanless and jumperless rugged touch panel PC powered by Intel® 6th generation Core™ processor U series, offering more computing power, faster data processing and a 40% boost to graphics performance, while consuming only 15W of power. The CV-100/P2000 Series supports CFM (Control Function Module) Technology, Cincoze own defined interface with integrated power boost and control signal that allows you to extend PoE and ignition sensing functions with additional CFM boards.

The CV-100/P2000 Series is a truly rugged computing system supporting wide operating temperature, wide range DC input from 9V to 48V, and various kinds of industrial protections. Moreover the instant reboot circuit design allows the system to cope with critical power request for factory applications. The CV-100/P2000 Series has an integrated SuperCap to avoid high downtime cost of replacing CMOS battery and be absolutely maintenance-free.

•  12.1"~21.5" TFT-LCD with Resistive 5-wire / Projected CapacitiveTouch
•  Onboard Intel® 6th Generation Core™ Processor U Series (15W)
•  2x DDR4 SO-DIMM Socket, Support Up to 32 GB
•  Integrated Intel® HD Graphics 520 Support Triple Display
•  2x 2.5” SATA HDD Bay, 1x mSATA and 1x CFast Socket
•  IP65 Compliant Aluminum Die-Cast Front Frame
•  2x Full-size Mini-PCIe Socket for Wireless and I/O Expansion
•  Support CFM Technology for PoE and Ignition Sensing Functions
•  Rich I/O (2x GbE LAN, 6x COM, 5x USB, 16x Isolated DIO)
•  Support Instant Reboot Technology
•  Wide Operating Temperature
•  SuperCap integrated for CMOS Battery Maintenance-Free
•  PCI/PCIe Expandable Version Available (CV-100/P2002E)


Power Efficient Modular Panel PC (CV-100/P1000 Series)

The Cincoze Convertible Panel PC includes all-in-one devices that integrate a high-resolution screen, a touch screen and a computer. A wide selection of display sizes are available from 8.4” to 21.5” with a format aspect of 4:3 and 16:9, and selected computer performance.

•  8.4”~21.5” Multi-functional All-in-One Panel PCs
•  Convertible Display Systems (CDS) Supported
•  Projected Capacitive and 5-wire Resistive Touchscreen Available
•  Aluminum Die-Cast Front Frame
•  Front Panel IP65 Rating
