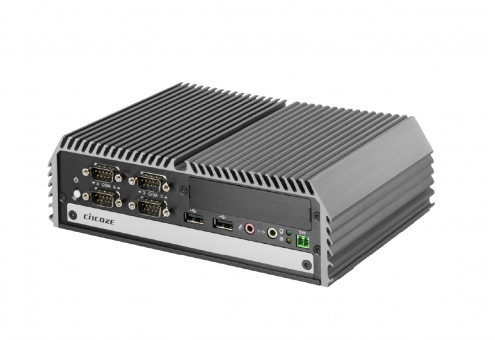

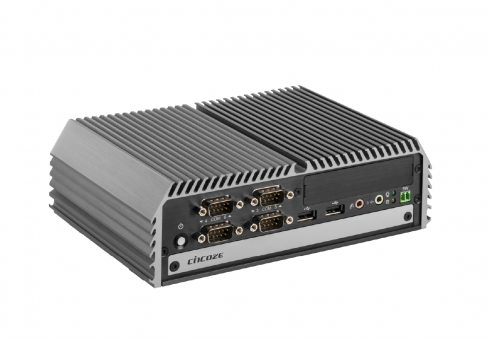

6th Generation Intel® Core™ Processor (Skylake-U) High Performance, Compact and Modular Rugged Embedded Computer
  • Onboard 6th Generation Intel® Core™ Mobile Processor (BGA Type)
  • 1x DDR4 SO-DIMM Socket, 2133MHz, Supports Up to 16 GB
  • Triple Independent Display (DVI-I, DisplayPort)
  • Compact Size 203 x 142 x 66.8 mm with Light Weight 1.65 kg
  • 1x Hot-swappable 2.5” SATA HDD/SSD Bay and 1x Internal 2.5” SATA HDD/SSD Bay, Supports RAID 0/1

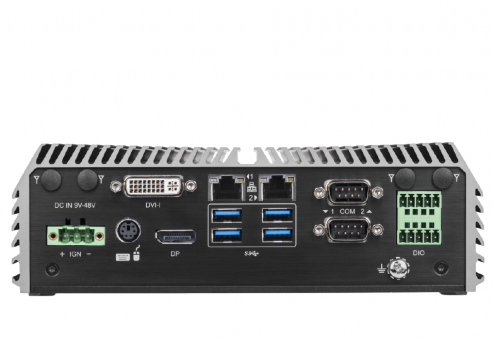

  • Rich I/O Including DVI, DP, 2x GbE LAN, 6x COM, 6x USB, 8x Optical Isolated DIO

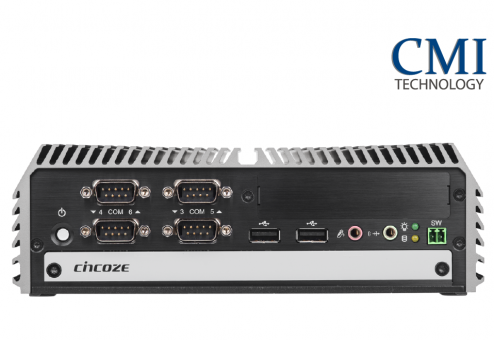

  • Supports Cincoze CMI Technology for LAN, PoE & M12 Connector Expansion
  • Supports Cincoze CFM Technology for Power Ignition Sensing (IGN) Function Expansion
  • Cincoze MEC Module Kits for Various I/O Expansion
  • 2x Full-size Mini-PCIe Slots for Wireless and I/O Expansion
  • Wide Operating Temperature (-40°C to 70°C)
  • EN50155 Certified for Railway Application
  • E-Mark (E13, No. 10R-0514273) Certified for In-vehicle Application

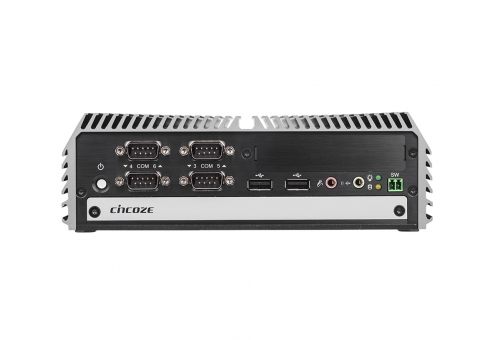

Cincoze DI-1000 Series is a high-performance, compact and modular fanless embedded computer powered by 6th generation Intel® Core™ mobile processor (Skylake-U), it integrates Intel® HD graphic engine and accommodates one DDR4 socket up to 16 GB which allows DI-1000 Series to fulfill all kinds of high-end computing demands. Extremely compact size with dimension 203 x 142 x 66.8 mm, comprising unbeatable I/O such as DVI-I, DP, 2x LAN, 6x COM, 6x USB, 8x Optical Isolated DIO, PS/2, Mic-in, Line-out, and remote power on/off switch, supporting two full-size Mini-PCIe slots for wireless communication and I/O expansion, accommodating two 2.5” SATA HDD/SSD bay for RAID 0/1 function, making DI-1000 series unmatchable in the market for its size and functions. DI-1000 Series weighs only 1.65 kg supporting 4 types of mounting mechanisms (Wall, DIN, Side and VESA) allowing it to be installed everywhere. The unique Cincoze’s CMI (Combined Multiple I/O), CFM (Control Function Module) and MEC (Mini-PCIe Card) technologies allow DI-1000 Series to be expanded according to the specific needs. The options of ready-to-use modules including Multi-LAN, PoE, M12 connections, Power Ignition Sensing and various types of I/O interface, making DI-1000 series application-ready platform for factory automation, machine vision, in-vehicle, and mobile surveillance applications.
Model NameDI-1000-i3
SystemProcessorOnboard Intel® Core™ i3-6100U Processor (3M Cache, 2.30 GHz, 15W TDP)
Memory1x DDR4 260-pin SO-DIMM Socket, Support up to 16 GB
(2133MHz, Un-buffered and Non-ECC type)
Graphics• Integrated Intel® HD Graphics
• Three Independent Display
Audio• Realtek® ALC888-GR
• High Definition Audio
I/O InterfaceDVI1x DVI-I Connector, Resolution 1920 x 1080
DP1x DisplayPort Connector, Resolution 3840 x 2160
LAN2x GbE LAN (Support Wake-on-LAN, Teaming, Jumbo Frame,
IEEE 1588v2 and PXE), RJ45
- GbE1: Intel I210AT
- GbE2: Intel I219LM
Serial Port6x RS-232/422/485 with Auto Flow Control (Support 5V/12V), DB9
USB.4x USB 3.0, Type-A
.2x USB 2.0, Type-A
PS/2 Port1x PS/2, 6-Pin Mini-DIN Female Connector
Isolated DIO8x Optical Isolated DIO (4x DI, 4x DO), 10-Pin Terminal Block Support 5~48V
Line-Out1x Line-Out, Phone Jack 3.5mm
Mic-In1x Mic-In, Phone Jack 3.5mm
Power Button1x ATX Power On/Off Button
AT/ATX Switch1x AT/ATX Mode Switch
Clear CMOS Switch1x Clear CMOS Switch
Remote Power On/Off Connector1x Remote Power On/Off Connector, 2-pin Terminal Block
StorageSSD/HDD2x 2.5” SATA HDD/SSD Bay, Support RAID 0/1 (Gen3)
(One Internal, One Front Accessible & Hot-swappable)
mSATA2x mSATA (Shared by Mini-PCIe Socket) (Gen2)
ExpansionCFM (Control Function Module) Interface1x CFM Interface for CFM Modules
CMI (Combine Multiple I/O) Interface1x CMI Interface for CMI Modules
Mini PCI Express2x Full-size Mini PCIe Supports Wireless &  I/O Expansion
SIM Socket1x SIM Socket
Other FunctionCFMSupport CFM (Control Function Module) Technology
CMISupport CMI (Combined Multiple I/O) Technology
Instant RebootSupport 0.2sec
Super CapSuper Cap integrated for CMOS Battery Maintenance-free
Watchdog TimerSoftware Programmable Supports 1~255 sec. System Reset
Power RequirementPower TypeAT/ATX
Power Input Voltage9~48VDC
Connector3-pin Terminal Block
Power AdapterOptional AC/DC Adapter
.AC/DC 12V/5A, 60W
.AC/DC 24V/5A, 120W
PhysicalDimension (WxDxH)203 x 142 x 66.8 mm
Weight Information1.65 kg
Mechanical ConstructionExtruded Aluminum with Heavy Duty Metal
MountingWall / Side / DIN-RAIL / VESA
Unibody DesignYes
Fanless DesignYes
Cable-less DesignYes
Jumper-less DesignYes
ProtectionReverse Power Input ProtectionYes
Over Voltage Protection58V
Over Current Protection15A
ESD Protection+/-15kV(Air), +/-8kV(Contact)
MTBFTime360, 145 Hours
Calculation ModelTelcordia SR-332 Issue 3, Method 1, Case 3
EnvironmentGB, GC
Operating SystemWindowsWindows 10
Windows 8.1
Windows 7
EnvironmentOperating TemperatureOperating Temperature: -40°C to 70°C
(With extended temperature peripherals; Ambient with air flow;
According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14)
Storage Temperature-40°C to 85°C
Relative Humidity95% RH @ 40°C (Non-condensing)
ShockOperating, 50 Grms, Half-sine 11 ms Duration
(w/ SSD, according to IEC60068-2-27)
VibrationOperating, 5 Grms, 5-500 Hz, 3 Axes
(w/ SSD, according to IEC60068-2-64)
RailwayEN50155, EN50121-3-2
In-VehicleE-Mark (E13, No. 10R-0514273) Certified
Available Models
Model No.Product Description
DI-1000-i36th Gen. Intel® Core™ i3-6100U High Performance, Compact and Modular Rugged Embedded Computer
Package Checklist
√ DI-1000 Embedded System x 1√ Power Terminal Block Connector x 1
√ CPU Heatsink Thermal Pad x 1√ Remote Power On/Off Terminal Block Connector x 2
√ Utility DVD Driver x 1√ DIO Terminal Block Connector x 2
√ Screw Pack x 1√ DVI-I to VGA Adaptor
√ Wall Mounting Kit x 1
Optional Accessories
Model No.Description
CFM-IGN102CFM Module with Power Ignition Sensing Control Function, Selectable 12V/24V

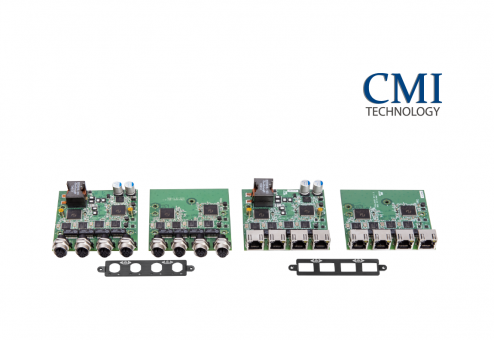

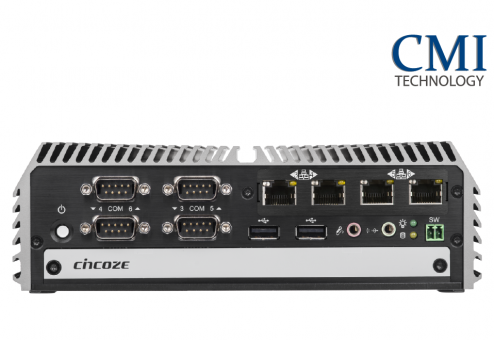

CMI-LAN104/UB0712CMI Module with 4x Intel GbE LAN, RJ45 Port, 1x Universal Bracket
CMI-PoE114/UB0712CMI Module with 4x PoE+, Intel GbE LAN, RJ45 Port, Individual Port 25.5W, 1x Universal Bracket

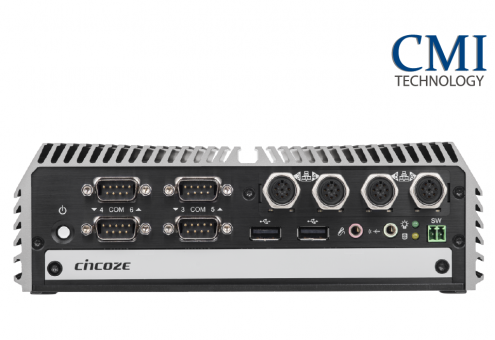

CMI-M12LAN104/UB0710CMI Module with M12 Connector, 4x Intel GbE LAN, 1x Universal Bracket
CMI-M12PoE114/UB0710CMI Module with M12 Connector, 4x PoE+, Intel GbE LAN, Individual Port 25.5W, 1x Universal Bracket

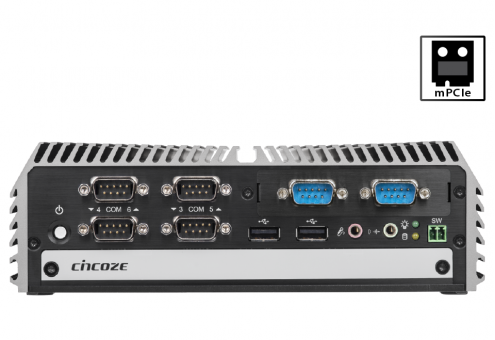

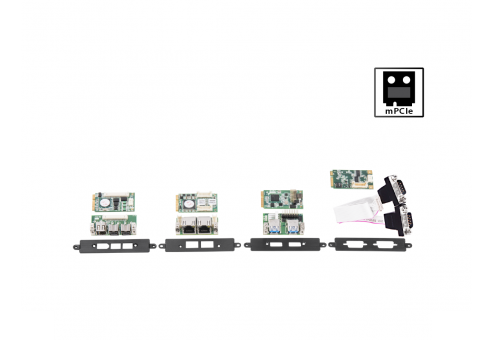

MEC-COM-M212/UB0703Mini-PCIe Module with 2x COM Ports, 2x Universal Brackets
MEC-FIR-M003/UB0701Mini-PCIe Module with 1x 1394A Port, 2x 1394B Ports, 1x Universal Bracket

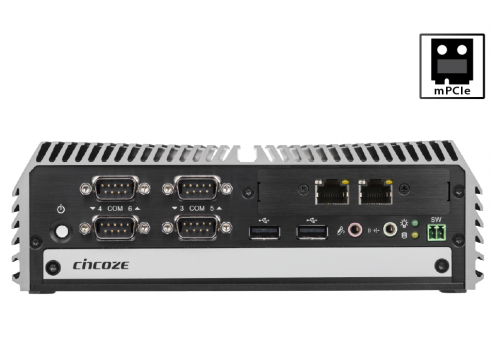

MEC-LAN-M002-R1/UB0711Mini-PCIe Module with 2x LAN Ports, 1x Universal Bracket
MEC-USB-M002/UB0714/CB0101Mini-PCIe Module with 2x USB 3.0 Ports, 1x Universal Bracket, 1x Cable for MEC-USB
DIN01DIN-RAIL Mount Kit, KMRH-K175
SIDE01SIDE Mount Kit
GSM60A12-CIN1Adapter AC/DC 12V 5A 60W with 3pin Terminal Block Plug 5.0mm Pitch, with Tubes
GS120A24-CIN1Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug 5.0mm Pitch, with Tubes
