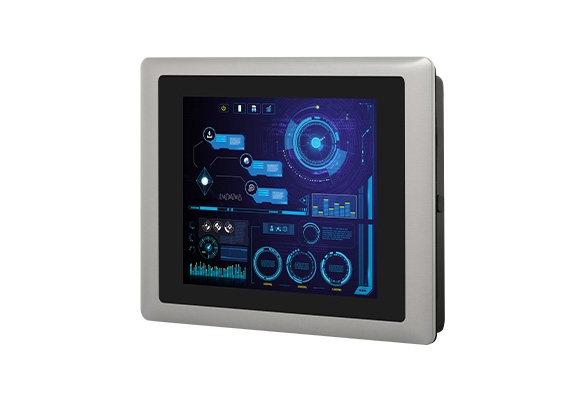

CV-108 / M1101 Series
8.4" TFT-LCD SVGA Touch Monitor with Resistive 5-wire / Projected Capacitive Touch, 1x DisplayPort, 1x HDMI, 1x VGA
- 8.4” TFT-LCD SVGA with Resistive 5-wire / Projected Capacitive Touch
- Designed with Aluminum Die-Casting Front Frame
- Various Video Input Interfaces: 1x VGA, 1x HDMI, 1x DisplayPort Input
- Support USB & RS-232 Interfaces for Touch Function
- OSD Control keys for Brightness Adjustment
- Convertible Display System (CDS) Supported
- True Flat IP65 Front Panel Protection
- Support Panel / VESA / Rack Mount
The Cincoze CV-100/M1101 series modular industrial touch monitors are suitable for the display requirements of equipment HMI and production process visualization in harsh on-site applications. The wide selection of screen sizes and touch options are just some of the features. The patented CDS (Convertible Display System) technology makes field side maintenance easier and enables simpler upgrades in the future. The CV-100/M1101 series supports digital and analog signal inputs, including HDMI, DisplayPort and VGA. It also has a multi-language OSD and supports multiple installation methods, including panel, VESA, and rack mount, so the monitor can adapt to deployment in a variety of application scenarios.
Product Category >>>> Modular Panel PC & Industrial Monitor
Complete range of sizes
——
The CV-100/M1101 series has a comprehensive selection of screens, with various screen sizes (8.4 - 24 inches), display ratios (4:3, 5:4, and 16:9), touch methods (multi-point capacitive and single-point resistive), and brightnesses (300-500 nits) to optimally match application requirements.
CDS patented technology
——
The patented CDS technology makes field side maintenance and future upgrades simpler and more cost-effective because a single part of the system can be replaced instead of replacing the whole thing.
Patent No. M482908Multiple display inputs
——
The CV-100/M1101 series has three different display inputs, including HDMI and DisplayPort digital inputs and VGA analog input.
Rugged, safe, and reliable
——
The CV-100/M1101 series has industrial-grade protections, including wide temperature support (-20°C to 70°C) and a dust- and water-resistant IP65 front panel to face harsh operating environments. In pursuit of ever higher product safety, the CV-100/M1101 series have also undergone rigorous testing to pass UL certification for product safety.
CV-108 Series
| Model Name | CV-108R | CV-108C | |
|---|---|---|---|
| Display | LCD Size | 8.4" (4:3) | |
| Max. Resolution | 800 x 600 | ||
| Brightness (cd/m2) | 400 | ||
| Contract Ratio | 600 : 1 | ||
| LCD Color | 262K | ||
| Pixel Pitch (mm) | 0.213 (H) x 0.213 (V) | ||
| Viewing Angle (H-V) | 150 / 130 | ||
| Backlight MTBF | 30,000 hrs (LED Backlight) | ||
| Touch Screen | Touchscreen Type | Resistive 5-wire | Projected Capacitive |
| Physical | Dimension (W x D x H) | 262 x 186.2 x 56.2 mm | |
| Weight Information | 1.62 kg | 1.56 kg | |
| Mechanical Construction | Die-Casting Flat Surface | ||
| Environment | Front Panel Protection | IP 65 Compliant | |
| Operating Temperature | -20°C to 70°C (with Industrial Grade peripherals; Ambient with air flow) | ||
| Storage Temperature | -30°C to 80°C | -20°C to 70°C | |
| Relative Humidity | 90% RH @ 60°C (Non-condensing) | 85% RH @ 60°C (Non-condensing) | |
| EMC | CE, UKCA, FCC, ICES-003 Class A | ||
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | ||
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m • EN/IEC 61000-4-4 EFT: AC Power: 1 kV; DC Power: 0.5 kV; Signal: 0.5 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 3V • EN/IEC 61000-4-8 PFMF: 50 Hz, 1A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 0.5 cycles at 50 Hz | ||
| Safety | UL, cUL, CB, IEC, EN 62368-1 | ||

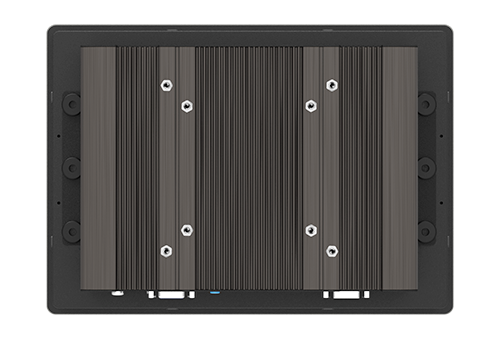

M1101
| Model Name | M1101 | |
|---|---|---|
| Graphics | HDMI-in | 1x HDMI Connector (1920 x 1080 @60Hz) |
| DP-in | 1x DisplayPort Connector (1920 x 1080 @60Hz) | |
| VGA-in | 1x VGA Connector (1920 x 1080 @60Hz) | |
| Audio | Audio input | 1x Audio Line in, Phone Jack 3.5mm |
| I/O | COM | 1x RS-232, DB9 |
| USB | 1x 480Mbps USB 2.0, Type A | |
| Other Function | OSD Button | Menu, Auto, LCD On/Off, Brightness Up, Brightness Down |
| Internal Speaker | AMP 2W + 2W | |
| Status LED Indicator | Power LED, Standby LED | |
| Power | Power Input | 9 - 48VDC, 3-pin Terminal Block |
| Physical | Dimension ( W x D x H ) | 204.5 x 149 x 38.5 mm |
| Weight Information | 1.2 kg | |
| Mechanical Construction | Extruded Aluminum with Heavy Duty Metal | |
| Mounting | VESA / CDS Mounting | |
| Physical Design | • Fanless Design • Jumper-less Design | |
| Reliability & Protection | Reverse Power Input Protection | Yes |
| Over Voltage Protection | • Protection Range: 51~58V • Protection Type: shut down operating voltage, re-power on at the preset level to recover | |
| Over Current Protection | 15A | |
| MTBF | 1,217,359 hrs - Database: Telcordia SR-332 Issue 3, Method 1, Case 3 | |
| Environment | Operating Temperature | -20°C to 70°C * Ambient with air flow * According to IEC60068-2-1, IEC60068-2-2, IEC60068-2-14 |
| Storage Temperature | -20°C to 75°C | |
| Relative Humidity | 95%RH @ 70°C (non-Condensing) | |
| Shock | Operating, 15 Grms (according to IEC60068-2-27) | |
| Vibration | • Operating, 1.5 Grms, 5-500 Hz, 3 Axes (according to IEC60068-2-64) • Operating, 1 Grms, 10-500 Hz, 3 Axes (according to IEC60068-2-6) | |
| EMC | • CE, UKCA, FCC, ICES-003 Class A • EN IEC 61000-6-4, EN IEC 61000-6-2 (24VDC Input Only) | |
| EMI | • CISPR 32 Conducted & Radiated: Class A • EN/BS EN 55032 Conducted & Radiated: Class A • EN/BS EN IEC 61000-3-2 Harmonic current emissions: Class A • EN/BS EN61000-3-3 Voltage fluctuations & flicker • FCC 47 CFR Part 15B, ICES-003 Conducted & Radiated: Class A | |
| EMS | • EN/IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV • EN/IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 10 V/m • EN/IEC 61000-4-4 EFT: AC Power: 2 kV; DC Power: 1 kV; Signal: 1 kV • EN/IEC 61000-4-5 Surges: AC Power: 2 kV; Signal: 1 kV • EN/IEC 61000-4-6 CS: 10V • EN/IEC 61000-4-8 PFMF: 50 Hz, 30A/m • EN/IEC 61000-4-11 Voltage Dips & Voltage Interruptions: 1 cycles at 60 Hz | |
| Safety | UL, cUL, CB, IEC, EN 62368-1 | |
| Model No. | Product Description |
|---|---|
| CV-108R-R10/M1101-R10 | 8.4" TFT-LCD SVGA 4:3 Touch Monitor with Resistive 5-wire Touch, 1x DisplayPort, 1x HDMI, 1x VGA |
| CV-108C-R10/M1101-R10 | 8.4”TFT-LCD SVGA 4:3 Touch Monitor with Projected Capacitive Touch, 1x DisplayPort, 1x HDMI, 1x VGA |
| CV-108R | CV-108C | M1101 | |
|---|---|---|---|
| CV-108R/M1101 | V | -- | V |
| CV-108C/M1101 | -- | V | V |
| √ CV-108/M1101 Series Touch Monitor x 1 | √ Panel Mounting Kit x 1 |
| √ USB Cable x 1 | √ Power Terminal Block Connector x 1 |
| √ VGA Cable x 1 | √ Screw Pack x 1 |
| Model No. | Description |
|---|---|
| GST60A12-CIN1 | Adapter AC/DC 12V 5A 60W, GST60A12-CIN1, wide temp (-30°C ~ +70°C) |
| GST120A24-CIN | Adapter AC/DC 24V 5A 120W with 3pin Terminal Block Plug and Tubes, Level VI |
| URM01 | Universal 19" Rack Mount Kit for Industrial Panel PC & Industrial Monitor |
